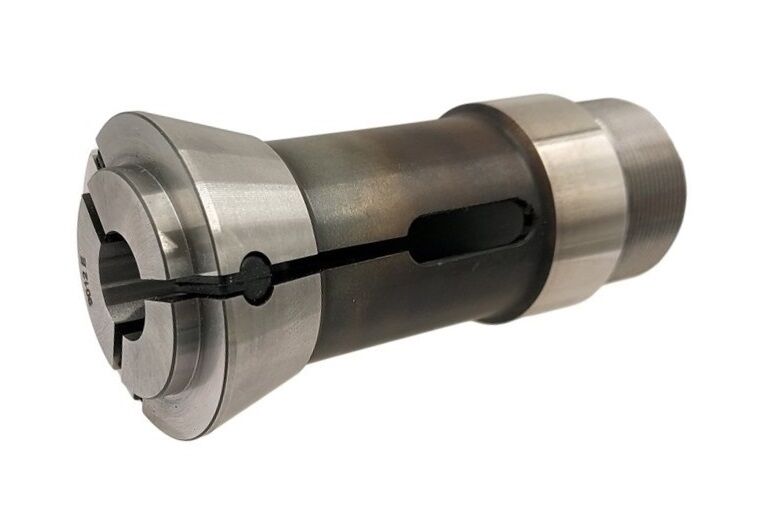

9012E Main Collet ROUND for Gildemeister AS16, AS20, GS20, GM20, GM20AC, Mory-Say 6/20, Tornos Multi DECO 20/6, Size 20mm
Delivery times: 5-6 days even with HM coating, except unforeseen
The main collets will be supplied according to the available profiles, if you need a particular profile please write to us by clicking here
Clamping faces tungsten carbide coated. To guarantee a frontal closing load of about 50% higher than uncoated as well as extending the life of the collet.
Application | Round |
---|---|
Brand | GILDEMEISTER - DMG MORI, MORI-SAY, TORNOS |
Typology | Thread outside left |
Machine Type | AS16, AS20, GM20, GM20AC, GS20, Multideco 20/6, 6/20 |

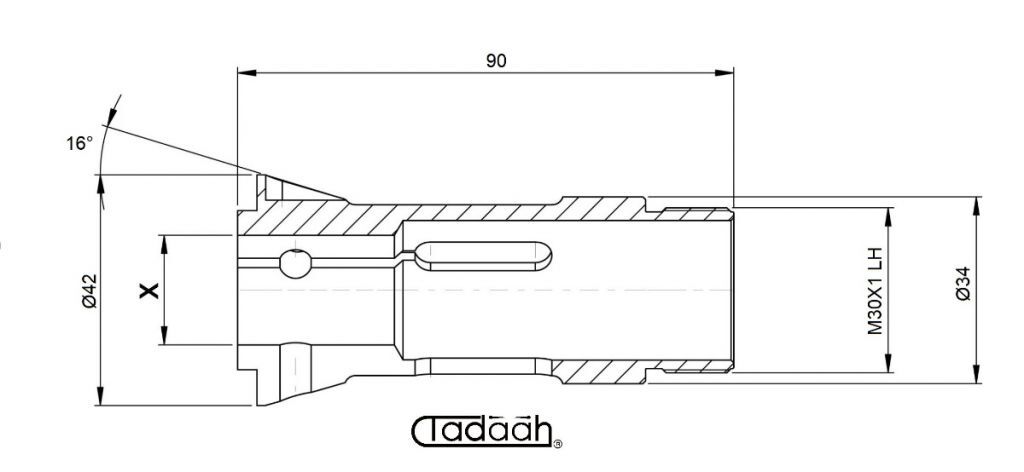

Diameter "d1" mm | 34 |
Dimension of thread | MF30x1 LH |
Diameter "D" mm | 42 |
Lengt "L" | 90mm |
Angle "C" | 16 |
Code | 9012E |
