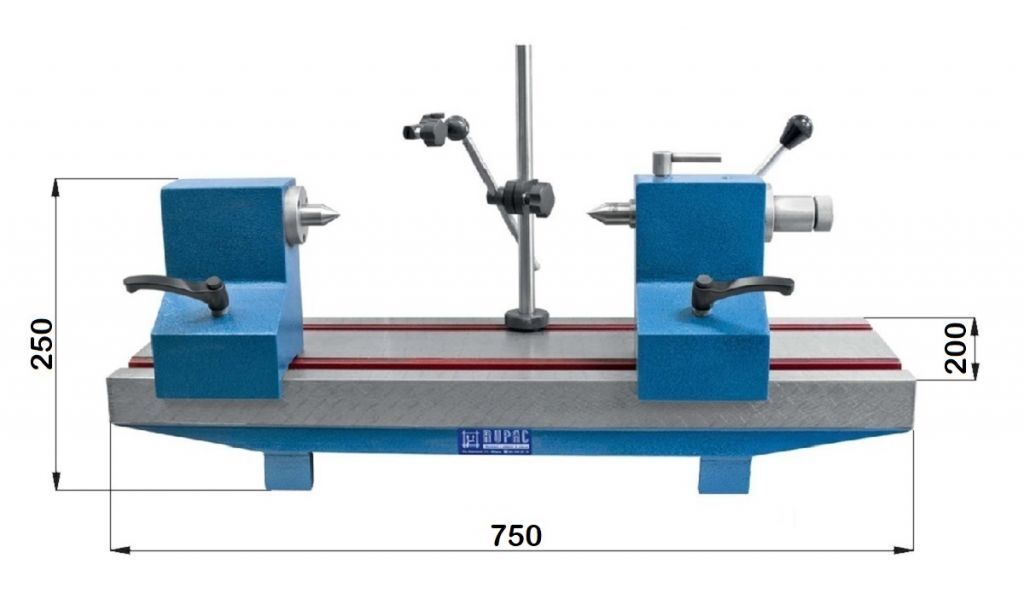

2003012 RUPAC MicroMet PLUS Series Eccentricity Control Unit measures 250x200x750mm - Stabilized cast iron appliances.
In stock
SKU
RP-2003012
Special Price
€990.00
Regular Price
€1,523.00
(Incl. Tax: €1,207.80)
(Incl. Tax: €1,207.80)
Stabilized cast iron appliance.
Pair of tailstocks consisting of one tailstock with fixed tailstock and one with axially adjustable tailstock by means of a lever, with preloaded spring, stroke about 20 mm.
The tailstocks are supplied with dial gauge column with micrometric adjustment and Ø 8 mm connection hole.
Minimum base hardness: 180HB
Accuracy: DIN 876/1
Minimum base hardness: 180HB
Accuracy: DIN 876/1
Minimum tailstock hardness: 750HV. Cone 60°.
Guide rail flatness: 0,02 mm.
Parallelism of the tailstock axes with the base ± 0.01: 300 mm.
Distance between tips: 300mm
Height of tips: 125 mm
Coaxiality of tailstocks: ≤ 10 μm.
Taper of the tips: MT3.
Max piece weight: 60 Kg
Net (gross) weight: 80 Kg (100 Kg)
- Brand:
- RUPAC
- Typology:
- Control bench centers
- Dimension :
- 250x200x750mm
