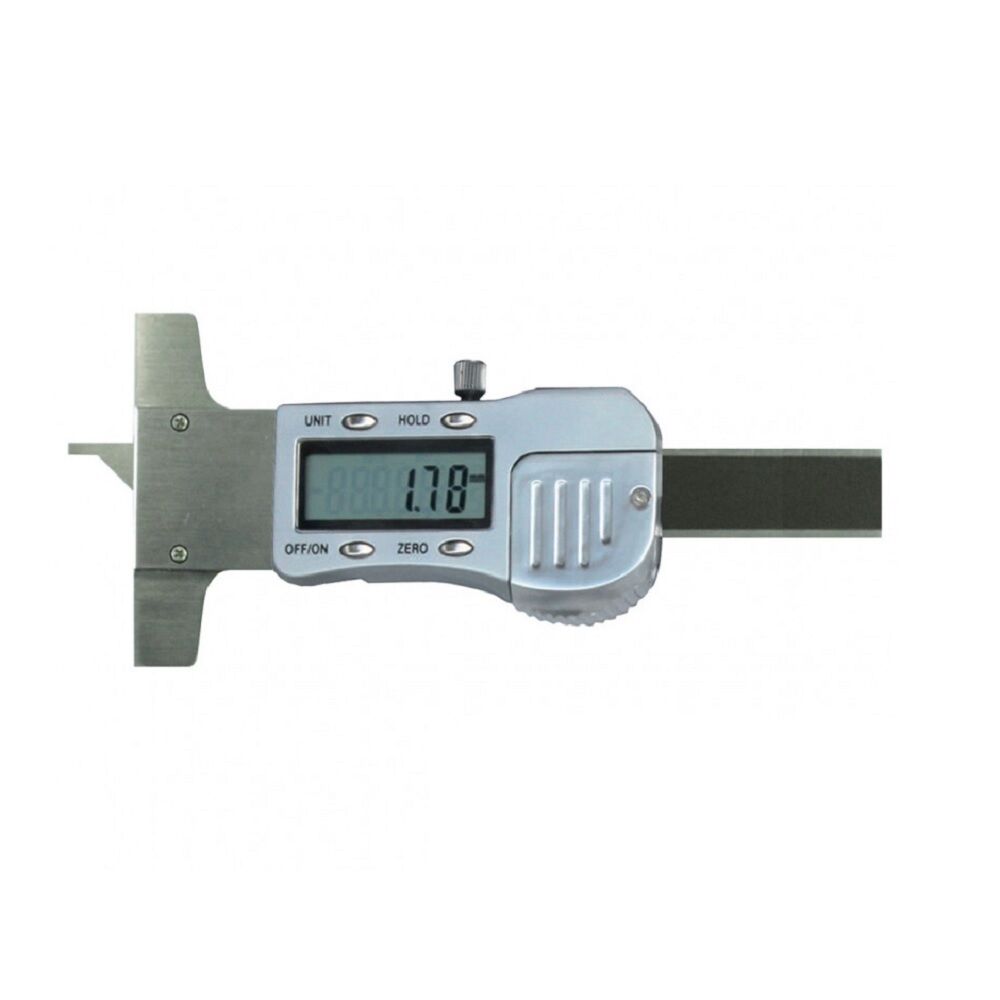

The digital chamfer gauge is a precision tool made of hardened stainless steel, ideal for measuring and inspecting chamfers up to 10 mm. This tool is especially useful for

applications in industrial and workshop settings, allowing reliable and repeatable inspection of machining operations.



The gauge has a resolution of 0.01 mm (alternatively, you can use the inch measurement with a resolution of 0.0005"), enabling extremely detailed readings. To ease usage, the gauge is equipped with on/off, zero, and hold functions, making it easier to record measured values.



The total length of the tool is 135 mm, with a bridge length of 60 mm that ensures stability during measurement, and a 5 mm long tip with a 135° angle, specifically designed for precise detection of 45° chamfers. These features allow effective dimensional inspection even on complex or hard-to-reach parts.



Below are the technical specifications of the product:

Feature	Details
Max chamfer	10 mm
Total length	135 mm
Bridge	60 mm
Tip	L 5 mm - 135°
Material	Hardened stainless steel
Base	Flat
Resolution	0.01 mm (0.0005”)
Functions	On/Off, Zero, Hold



This digital gauge is the perfect tool for those seeking a reliable and precise solution for measurement tasks. Its ease of use and reading accuracy make it a valuable addition to any work equipment.
