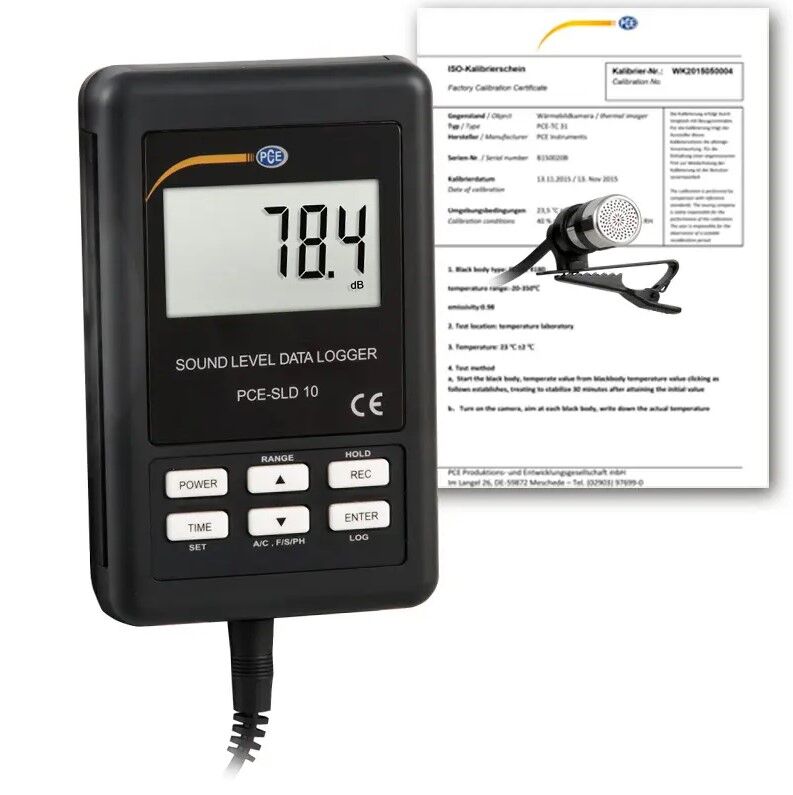

PCE Instruments PCE-SLD-10-ICA Data logger for noise control, with 4-20 mA output, SD card recording, LCD display, and ISO certification included
In stock
SKU
PCE-SLD-10-ICA
€442.22
(Incl. Tax: €539.51)
(Incl. Tax: €539.51)
Data logger PCE-SLD 10 designed for continuous noise control, allows SD card recording and generates Excel format files. Equipped with a 4-20 mA analog output, it measures over a wide range from 30 to 130 dB, with the option to select frequency weighting A or C. The device displays values on a LCD display and allows for easy extraction of the memory card for analysis without additional software. Powered by 6 AAA 1.5V batteries or via an included power supply, the data logger is ideal for environments requiring constant monitoring, such as large warehouses, where it can interact with controllers to manage automatic actions.
Technical specifications:
| Measuring range | 30 - 130 dB |
| Measurement accuracy | Based on class 2 according to IEC61672 |
| Resolution | 0.1 dB |
| Frequency | A & C |
| Term review | Fast: 125 ms |
| Slow: 1 s | |
| Frequency range | 31.5 Hz - 8 kHz |
| Measuring range | 30 - 130 dB (auto) |
| selection | 30 - 80 dB 50 - 100 dB 80 - 130 dB |
| Measurement functions | Hold by pressing a button Peak Hold Max-Min |
| Analog output | 4 - 20-mA |
| Adjustment | Via optional calibrator in an internal menu |
| Data storage | SD card max 16 GB |
| Storage rate | 5 s, 10 s, 30 s, 60 s, 120 s, 300 s, 600 s, 1800 s, 3600 s |
| Memory error | <0.1% of the total stored data |
| Refresh rate from the display | About 1s |
| Interface | Serial, for live visualization on computers |
| (Data cable SOFT-LUT-USB sold separately) | |
| Power supply | 6 x 1.5V AAA batteries |
| 9V / 1 A power adapter | |
| Automatic shutdown | After 10 minutes without operation |
| Disabled when in power supply mode | |
| Operating conditions | 0 - 50°C / 32 - 122°F, max. 85 rh |
| Weight | About 230 g / < 1 lb |
| Dimensions | Device: 132 x 90 x 32 mm / 5.2 x 3.5 x 1.3 in |
| Microphone: 12.5 x 32 mm | |
| Cable length: approx. 120 cm |
Note: The scaling of the analog output depends on the selected measuring range.
The PCE-SLD 10 data logger is a highly specialized device designed for the continuous monitoring of environmental noise, a crucial aspect in various industrial and commercial applications. With its ability to measure sound intensity in a range from 30 to 130 dB, this instrument is essential for ensuring compliance with acoustic safety regulations and preventing potential harmful effects on the health of workers and customers. The data logger not only collects data but also provides valuable information for more in-depth analyses.
Another distinctive feature of the PCE-SLD 10 is the selectable frequency weighting between A and C, allowing users to tailor measurements based on specific acoustic analysis needs. Weighting A is commonly used to represent human sound perception, while Weighting C is more suitable for measuring sound pressure levels at low frequencies. This flexibility makes the data logger an ideal option for various contexts, from environmental impact studies to industrial quality controls.
The large LCD display allows for clear and immediate visualization of real-time data. This feature is particularly useful in fast-paced work environments, where operators must continuously monitor noise levels. The display not only shows measured values but also provides additional information, such as signal polarity, making it easy for users to interpret data effectively.
The PCE-SLD 10 data logger is powered by 6 AAA 1.5V batteries, making it easily portable and ideal for use in different situations. However, for prolonged measurements, the included power supply can be used, ensuring continuous operation without interruptions. This is especially advantageous during extended monitoring, such as those required in industrial environments or public events.
One of the most practical features of the PCE-SLD 10 is the ability to record data on an SD card. This storage system allows users to save measured values in Excel (xls) format, significantly simplifying the analysis process. After measurements, users can simply remove the memory card from the device and transfer data to a computer without needing additional software. This feature increases efficiency, making the processing of collected information quicker.
The application field of the PCE-SLD 10 data logger is extremely broad. It is designed for use in environments where continuous control of noise levels is necessary, such as in large warehouses, factories, hospitals, or any other place where the quality of the acoustic environment is essential. In these contexts, the device can be connected to control systems, enabling automatic actions, such as closing doors and windows when noise levels exceed certain thresholds. This not only improves environmental comfort but also helps optimize operational efficiency.
An additional advantage of the PCE-SLD 10 is its ISO certification, which ensures that the device meets high standards of quality and reliability. This certification is crucial for companies needing measurement tools compliant with international regulations, ensuring that measurements are always accurate and representative of reality.
In summary, the PCE-SLD 10 data logger is an indispensable tool for engineers, technicians, and professionals who require reliable and accurate measurements of noise levels. With its combination of robustness, precision, and versatility, it serves as a fundamental resource for ensuring safety and operational quality across a wide range of sectors. By using this device, it is possible not only to monitor noise levels but also to make informed decisions to improve the acoustic environment, thereby contributing to the well-being of all users and ensuring compliance with current regulations.
Caratteristichs:
- Wide measuring range up to 130 dB
- Analog output with 4 - 20-mA
- Data interface
- LC display
- SD card memory up to 16 GB
- EXCEL storage
- External microphone
- Battery and mains operation
- Incl. ISO calibration certificate
- Analog output with 4 - 20-mA
- Data interface
- LC display
- SD card memory up to 16 GB
- EXCEL storage
- External microphone
- Battery and mains operation
- Incl. ISO calibration certificate
Delivery scope:
1 x Decibel meter PCE-SLD 10
1 x Microphone
1 x Wall holder
1 x Memory card
1 x 4 - 20 screw connectors
1 x Power adapter 9V / 1 A
1 x User manual
1 x ISO calibration certificate
1 x Microphone
1 x Wall holder
1 x Memory card
1 x 4 - 20 screw connectors
1 x Power adapter 9V / 1 A
1 x User manual
1 x ISO calibration certificate
- EAN Code:
- 4250348726681
- Typology:
- Fixed Monitoring
- Brand:
- PCE INSTRUMENTS
- Resolution (mm):
- 0.1 dB
- Measurements range:
- 30 - 130 dB
