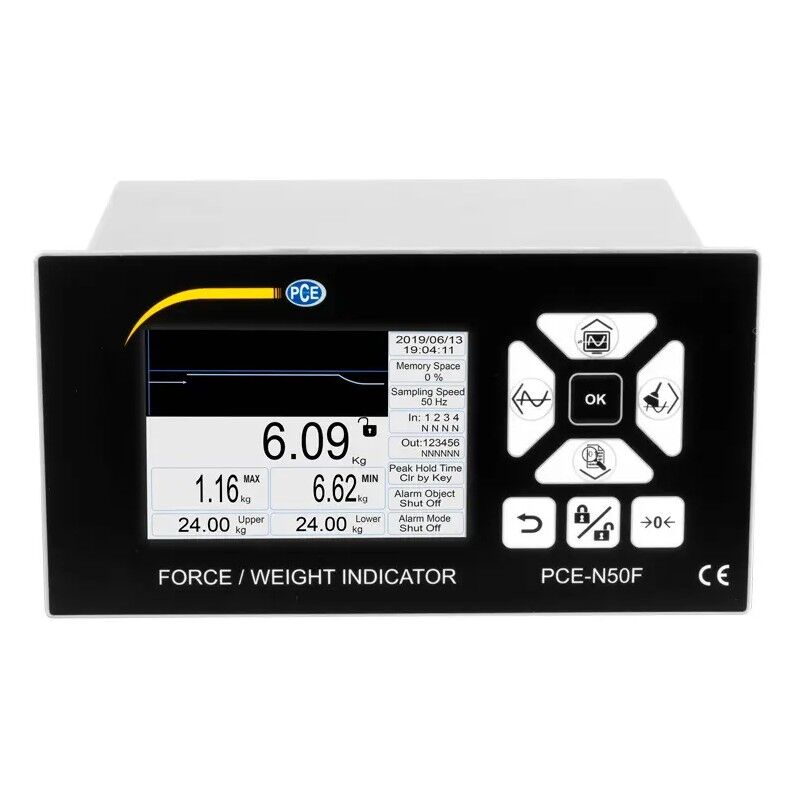

PCE Instruments PCE-N50F Force gauge for load cells and dynamometer sensors with LCD display, sampling up to 1600 Hz, Modbus, digital inputs and outputs
(Incl. Tax: €818.79)
Force meter suitable for load cells and dynamometric sensors, perfect for integration into control panels. It displays weight, force, and torque, with calibration via a menu and reference weights. The sampling frequency of up to 1600 Hz ensures rapid data acquisition. The graphic LCD display shows numerical values, weighing curves, and indicates MAX and MIN values. Equipped with tare and zeroing functions, it supports digital inputs and outputs and Modbus connection, ensuring versatile use in spot measurement and continuous monitoring applications.
The force gauge is an advanced instrument designed to measure weight, force, or torque in various industrial and research applications. Thanks to its compatibility with load cells and dynamometric sensors, it is ideal for applications requiring precise and continuous measurements. Calibration of the device is easily performed through the menu, using specific calibration weights. The force gauge offers a sampling frequency of up to 1600 Hz, ensuring fast and accurate measurements.
Technical specifications:
| Signal Input Range | 0 - 20 mV |
| Minimal sensitivity | 0.1 μV / digit |
| Supply voltage of the measuring cell | 5V / 100-mA |
| Number of measuring cells | 1 - 8x 350 Ohm measuring cell (s) |
| Display | 3.5 "LCD |
| Units | g, mN, mlb, Pa, kg, N, Ib, kPa, t, kN, klb, MPa |
| Measuring rate | 6, 12, 25, 50, 100, 200, 400, 800, 1600 Hz |
| Electrical connections | Screw |
| 1 - 2.5 mm² | |
| Power supply | 220V AC / 50Hz |
| Input | < 10W |
| Degree of protection | Front: IP65 |
| Assembly | Panel cut |
| Size panel cutout | 152 x 76 mm / 6 x 3 in |
| Dimensions | 166 x 88 x 146 mm / 6.5 x 3.5 x 5.7 in |
| Weight | About 1150 g / 2.5 lbs |
| Operating conditions | -10 - 40°C / 14 - 104°F, max 85% RH |
| Storage conditions | -20 - 50°C / -4 - 122°F, max 85% RH |
The device is equipped with a graphical LCD display, which shows numerical and graphical values related to the weight in real-time, making data reading easier. It can determine MAX and MIN values, with the ability to easily perform tare and reset functions. Furthermore, the Modbus serial interface and digital inputs and outputs provide versatility and the ability to integrate the gauge into monitoring or automated control systems.
This force gauge is perfect for use in fixed installations or for spot measurements. Due to its compactness and advanced functions, it is commonly used in industrial environments, research laboratories, and any situations that require accurate, continuous force or weight measurements.
Features:
- Up to 1600 Hz sampling rate
- LC display
- Minimum and maximum value determination
- Tare and zero function
- For load cells, force sensors, etc.
- Digital inputs and outputs
Delivery scope:
1 x Indicator PCE-N50F
1 x User manual
- EAN Code:
- 4250348720078
- Typology:
- Dynamometer
- Brand:
- PCE INSTRUMENTS
