PCE Instruments PCE-MPC 30 Thermohygrometer with datalogger, mass concentration measurement, measurement range 0 to 2000 µg/m³, resolution 1 µg/m³
(Incl. Tax: €1,396.29)
The PCE-MPC 30 is a versatile thermo-hygrometer equipped with a data logger, designed to measure mass concentration levels in the air. It has a measurement range from 0 to 2000 µg/m³, with a resolution of 1 µg/m³. This device is suitable for various applications requiring precise monitoring of air quality and particulate matter.
This thermo-hygrometer is a multifunctional device capable of measuring particle sizes (0.3 µm, 2.5 µm, and 10 µm), mass concentration (PM2.5 and PM10), and formaldehyde (HCHO) levels in ppm. At the same time, it records ambient temperature, relative humidity, and dew point, providing a comprehensive analysis of environmental conditions.
Technical specifications:
| Measurable particle sizes | PM 2.5 and PM 10 |
| Measuring range | 0 - 2000 µg / m³ |
| Resolution | 1 µg / m³ |
| Particle counter | |
| Measurable particle sizes | 0.3, 2.5, 10 µm |
| Flow rate | 2.83L / min (0.1 ft³) |
| Counting efficiency | 50% at 0.3 µm; 100% with particle size> 0.45 µm |
| Coincidence error | <5% at 2,000,000 particles per ft³ |
| Data storage | 5000 data records (micro SD card) |
| Counting modes | cumulative, differential, concentration |
| HCHO | |
| Measuring range | 0.01 - 5.00 ppm |
| Accuracy | ± 5% |
| Resolution | 0.01 ppm |
| Air temperature and relative humidity | |
| Measuring range air temperature | 0 - 50 ° C, 32 - 122 ° F |
| Measuring range dew point | 0 - 50 ° C, 32 - 122 ° F |
| Relative humidity measuring range | 0 - 100% RH |
| Air temperature measurement accuracy | 10 - 40 ° C: ± 1 ° C, ± 1.8 ° F Others: ± 2 ° C, ± 3.6 ° F |
| Measuring accuracy dew point temperature | 10 - 40 ° C: ± 1 ° C, ± 1.8 ° F Others: ± 2 ° C, ± 3.6 ° F |
| Relative humidity accuracy | 0 - 20% rel. Humidity: ± 5% 20 - 80% rel. Humidity: ± 3.5% 80 - 100% rel. Fencing: ± 5% |
| More specifications | |
| Operating conditions | 0 - +50 ° C, 10 - 90% rel. humidity, not condensing |
| Storage conditions | -10 - +60 ° C, 10 - 90% rel. humidity, not condensing |
| Display | 2.8 ", 320 x 240 pixels, backlit color LCD |
| Power supply mains adapter | Primary: 100 - 240 V AC, 50/60 Hz, 0.6 A. Secondary: 9 V DC, 1500 mA |
| Power supply battery | 7.4 V, 1200 mAh, 8.88 Wh |
| Battery Life | approx. 4 hours in continuous operation |
| Battery recharge time | approx. 2 hours with AC adapter |
| Dimensions | 240 x 75 x 57 mm |
| Weight | 570 g |
A key feature is its built-in data logging function, which stores all measured values for later analysis. Data can be saved to an SD card, ensuring precise documentation and easy export. Designed for mobile use with its integrated battery, the device features a high-resolution 2.8" TFT display (320 x 240 pixels) for clear and immediate visualization of measurements.
Thanks to its ability to measure particle mass concentration (expressed as weight per cubic meter), HCHO levels, and essential climatic parameters, this instrument is ideal for applications requiring detailed environmental monitoring, such as indoor air quality assessments, industrial hygiene inspections, and HVAC system evaluations.
Features:
- Particle counter, HCHO, temperature measurement
- Measured value recording for later analyzes
- Large 2.8 "LC display, 320 x 240 pixels
- Mass concentration PM 2.5 and PM 10
- Battery for mobile use
- Dew point and wet bulb temperature

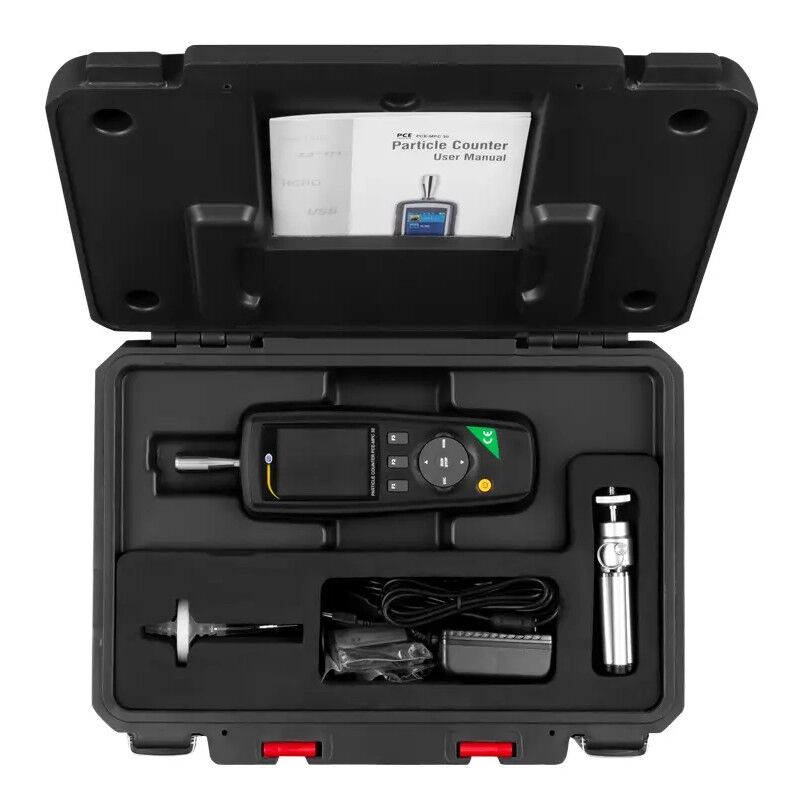

Delivery scope:
1 x Aerosol meter PCE-MPC 30
1 x zero filter
1 x battery
1 x charger
1 x mini USB cable
1 x mini tripod
1 x hard case
1 x instruction manual
- EAN Code:
- 4250348719287
- Typology:
- Hygrometer
- Brand:
- PCE INSTRUMENTS
- Resolution (mm):
- 1 µg/m³
- Measurements range:
- 0 - 2000 µg/m³
