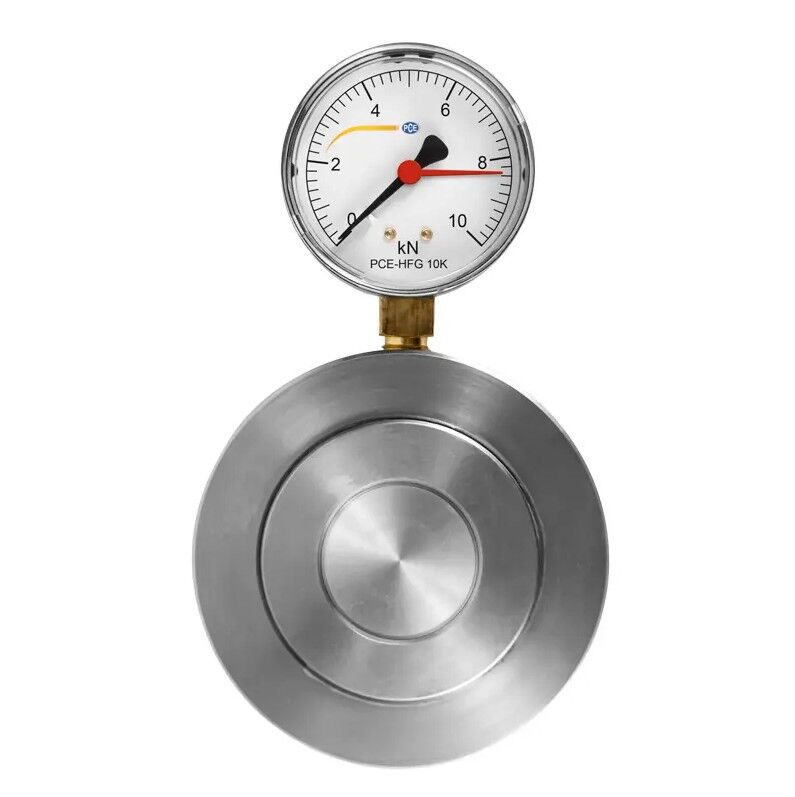

The compact analog hydraulic dynamometer is designed to measure static forces in tight spaces, offering precision and versatility. Its operating principle is based on the force applied to the piston, which generates hydraulic pressure displayed on an indicator with a scale in Newtons. Thanks to the included drag tip, the maximum value reached during measurement can be recorded.

Technical specifications:

A distinctive feature of this dynamometer is its 27 mm central opening, which allows measurements on guides, shafts, and bolts, making it suitable for various industrial applications. The included adapter plate converts the flat base into an 80 mm support surface, enhancing its flexibility.

Built with a stainless steel load cell, this tool is robust and reliable, ideal for maintenance and adjustment work on industrial machinery. The ring piston and axial mounting thread facilitate installation in different configurations. Thanks to its ability to measure static pressure forces with clear readings in Newtons, it is an essential tool for technical applications requiring precision and compactness.

Features:

- Stainless steel force gauge
- Measurement of static compressive forces
- Ring force transducer and pressure adapter
- Screw mount for axial assembly
- Integrated drag pointer
- Pressure force display in Newton [N]

Delivery scope:

1 x Tension Dynamometer PCE-HFG 10K
1 x Instrument case
1 x Compression adapter
1 x Instruction manual
