PCE Instruments PCE-DFG 10K XF Load cell with external sensor up to 10 kN for compression measurements in confined spaces with graphic display, data logger, alarms and integrated software
(Incl. Tax: €1,656.64)

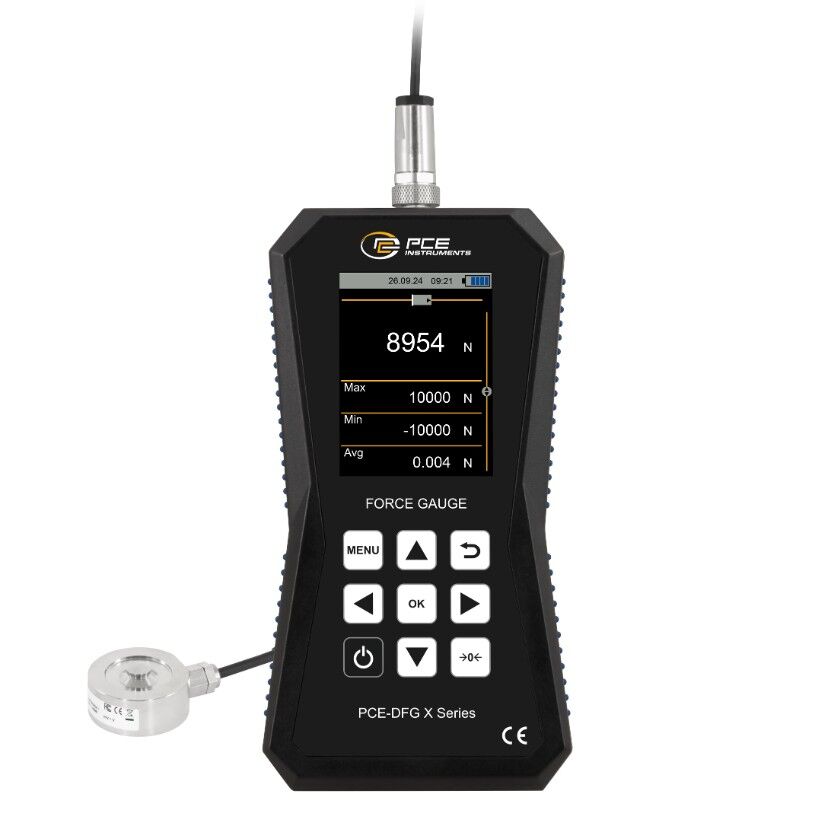

Load cell with external pressure sensor, designed to measure compression forces up to 10 kN in confined spaces. Equipped with threaded holes on the bottom for secure mounting and a 3 m sensor cable, it ensures versatility in applications. The 32 GB memory allows for the storage of 30 million measurement points, facilitating the creation and export of protocols. The USB-C interface enables data transfer to a PC, while the graphic LCD display shows values both numerically and graphically. The IP67 protection makes the load cell suitable for harsh industrial environments.
The load cell is a precision instrument used to measure compressive forces in a wide range of applications, especially when dealing with hard-to-reach measurement points. With a measurement capacity of up to 10 kN, it can detect forces with an accuracy of ±0.05% FS. Thanks to its compact structure and connection via a 3-meter sensor cable, the load cell easily adapts to different configurations and testing devices.
Technical specifications:
| Force | |
| Measurement range up to | 0 - 10 kN |
| Resolution | 2 N |
| Accuracy | ±0.05 % FS |
| General technical data | |
| Units | N, kg, g, t, kn, Pa, kPa, Nm, Ncm, lb, ft |
| Display type | LCD with backlight |
| Display size | 2,8 Inch |
| Adjustable measuring rate | 1 - 7200 Hz |
| Storage medium | Internal memory |
| Storage capacity | 32 GB |
| Storage interval from | 1 Hz |
| Storage interval to | 7200 Hz |
| Interface | USB-C |
| Operating time | 13 h |
| Automatic power-off from-to | 1 - 15 min. |
| Automatic power-off can be deactivated | Yes |
| Alarm | optical, Acoustic |
| Alarm modes | Within, beyond, fracture, off |
| Protection class measuring cell | IP67 |
| Menu language | Turkish, English, Polish, Spanish, German, Chinese, Russian, Japanese, French, Danish, Italian, Dutch, Portuguese |
| Protection class (device) | IP52 |
| Power supply | USB 5 V DC, 500 mA |
| Capacity | 2200 mAh |
| Operating conditions | -20 - 65 °C , 10 - 95 % RH |
| Storage conditions | -20 - 65 °C , 10 - 95 % RH |
| Dimensions ( L x W x H ) | 165 x 85 x 32 mm |
| Other dimensions | Pressure load cell Ø 32 mm / H 16 mm / M5 thread |
| Weight | 275 g |
| Other weights | Pressure load cell: 116 g |
The device is equipped with 32 GB of internal memory, allowing storage of up to 30 million measurement points. This space enables engineers to create, save, and export data, ensuring efficient management of results. The load cell also features a USB-C interface, facilitating data transfer to a PC via dedicated software, soon to be available, for real-time analysis and visualization of measured values.
The LCD graphic display provides both numerical and graphical representations of the data, while a bar chart allows easy visualization of the values within the selected measurement range. With an IP67 protection rating, the load cell is suitable for use in harsh industrial environments, ensuring reliability even in extreme working conditions. The presence of various alarm modes and the calibration reminder help optimize performance and maintain measurement accuracy over time.
Eigenschaften:
- measurement range: 0 - 10000 N
- sampling rate: 1 - 7,200 Hz
- accuracy: ±0.05 % FS
- graphic display
- USB-C interface
- PC software (available soon)
- 32 GB memory for 30 million measuring points
- various alarm modes
- bar chart displays reading within measurement range
- calibration reminder
Delivery scope:
1 x Force Gage PCE-DFG 10K XF
1 x PCE-DFG 10K XF load cell
1 x PC software (available soon)
1 x carrying case
1 x USB-C cable
1 x quick start guide
- EAN Code:
- 4250348736475
- Typology:
- Dynamometer
- Brand:
- PCE INSTRUMENTS
- Resolution (mm):
- 2N
- Measurements range:
- 0 - 10000N
