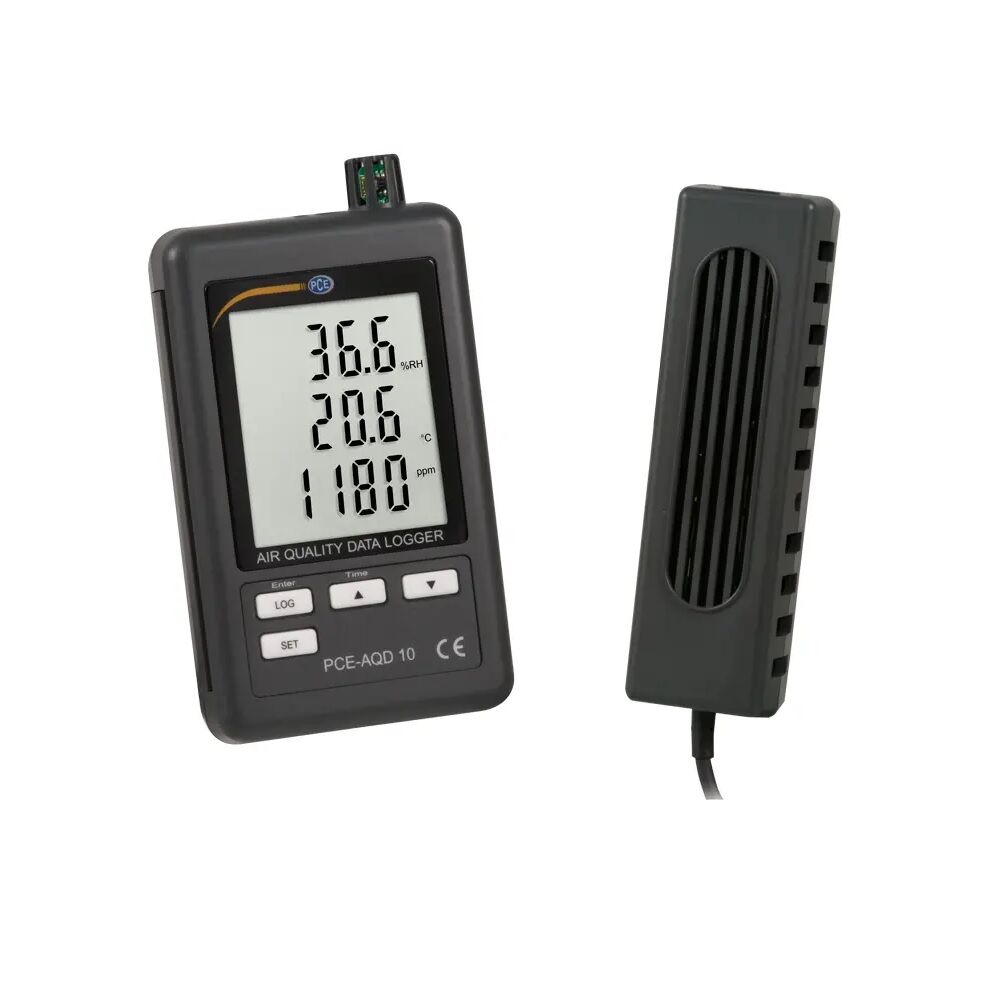

The humidity detector is used to measure air quality. The humidity detector measures carbon dioxide, temperature and humidity. The CO2 sensor from the humidity detector is separated from the main unit with a connection cable. The measured values ​​are displayed on the large display of the humidity detector. The humidity detector data is stored on an SD card. The humidity detector can set the measured data in adjustable intervals of 1 ... 600 seconds.



Measured variable CO2
Measuring range	0 ... 4000 ppm
Resolution	1 ppm
Accuracy	± 70 ppm (<1000 ppm) ±5% of measured value (<3000ppm) ±250 ppm (>3000 ppm)
Measured variable humidity
Measuring range	10 ... 90 % RH
Resolution	0.1 % RH
Accuracy	±(4% of measured value + 1 % RH) (>70% RH ) ±4% RH (<70 % RH)
Measured variable temperature
Measuring range	0 ... 50 °C / 32 ... 122 °F
Resolution	0.1 °C / 0.18 °F
Accuracy	± 0.8 °C / 1.4 °F
Storage rate	1, 2, 5, 10, 30, 60, 120, 300, 600 seconds
Memory	SD card up to 16 GB
Display	LCD with lighting
Refresh rate display	1s
Power supply	plug-in power supply 9 V / 800 mA
Operating conditions	0 ... 50 °C / 32 ... 122 °F / < 85 % RH
Dimensions	main unit: 132 x 80 x 32 mm / 5.2 x 3.1 x 1.3" CO2 sensor: 132 x 38 x 32 mm / 5.2 x 1.5 x 1.3"
Weight	ca. 390 g / 13.7 oz (total)

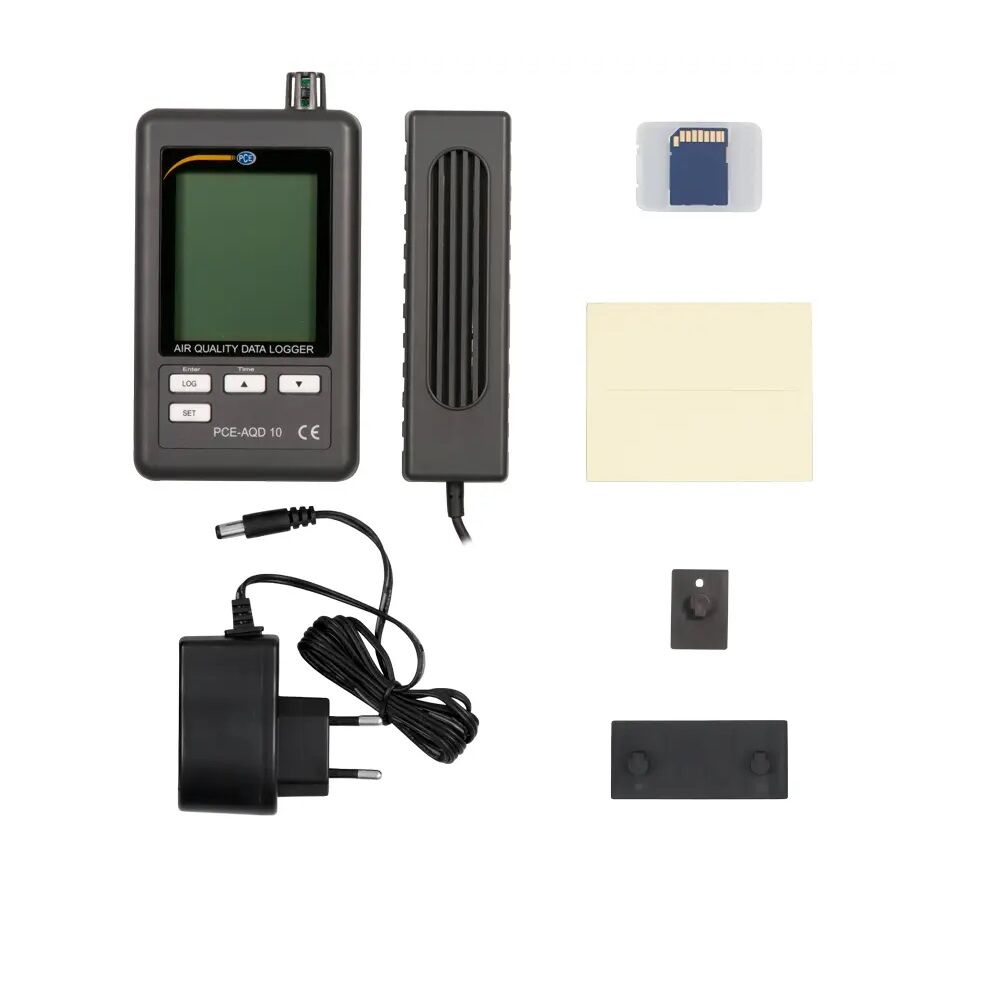

1 x Humidity Detector PCE-AQD 10
1 x CO2 sensor
1 x Mains power adapter
1 x SD memory card
2 x Wall holder
1 x Adhesive pad
1 x User manual
