Model	PCE-125/2
Inner vertical height	43 ±0.1mm
Nozzle inside Ø	2.53 mm
Nozzle outside Ø	5.0 ±0.5mm
Measuring range (mm²/s)	25 - 120
Flow time (sec.) ±0.2	40 - 100
Material	cup: anodized aluminum nozzle: stainless steel
Standard	International Standard ASTM D1200, D333 und D365
Dimension	Ø inside 50 mm Ø outside 85 mm height 76 mm
Weight	ca. 320 g

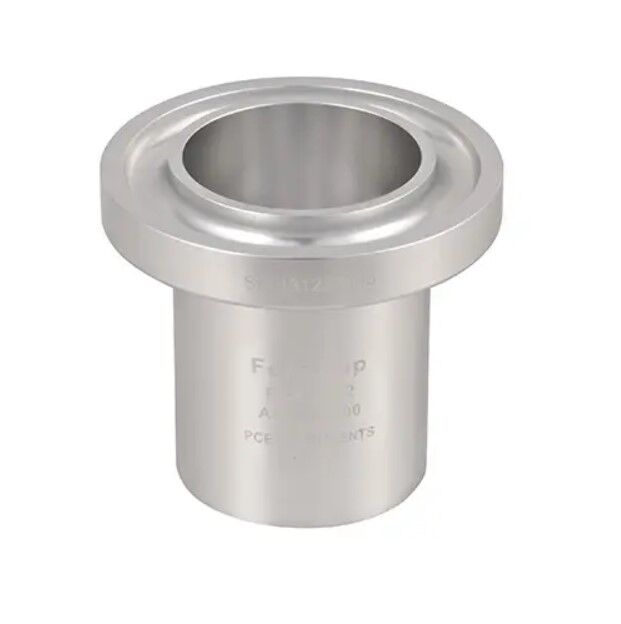

The viscometer is a precision technological instrument used to measure the viscosity of various types of liquids, a key parameter that defines a fluid's resistance to flow. This tool is essential for understanding fluid behavior in different industrial processes and ensuring that final products meet quality specifications. In particular, the Ford viscometer PCE-125/2, made with high-quality materials like anodized aluminum and equipped with an interchangeable stainless steel nozzle, is designed for measuring the viscosity of low-density liquids. Thanks to its robust structure and compliance with international standards such as ASTM D1200, D333, D365 and DIN, the instrument guarantees reliable and repeatable measurements, making it ideal for laboratories, workshops, and industries.



Using the viscometer is relatively simple, making it suitable for both experienced operators and less specialized technicians. To perform a measurement, the nozzle is initially closed and the liquid is poured into the cylindrical body of the device until it is completely filled. An overflow channel prevents fluid spillage, ensuring that the measurement volume is always precise and compliant with standards. Once filled, excess liquid is removed by sliding a glass plate over the upper edge of the viscometer. At this point, the nozzle is opened and the plate is removed horizontally, simultaneously starting a stopwatch. The measurement ends when the liquid flow becomes irregular, at which point the stopwatch is stopped and the elapsed time is recorded. This data allows the viscosity of the fluid to be determined with great accuracy.



The importance of keeping the viscometer clean after each use cannot be underestimated. Residual fluids can alter subsequent measurements, compromising result accuracy. Even small scratches inside the viscometer body can change the device's volume, making it no longer compliant with DIN standards, and negatively affecting measurements. Therefore, regular maintenance and thorough cleaning are essential to ensure the device's longevity and reliability.



The Ford viscometer is used in a wide range of industrial applications. It is employed in the chemical industry to analyze paints, coatings, and solvents, where viscosity directly impacts product quality. In the petrochemical industry, viscosity control is crucial for managing complex fluids such as lubricating oils and fuels. Even in the food and pharmaceutical sectors, where the consistency of fluids such as syrups, creams, and oils can affect product efficacy and customer satisfaction, the viscometer is indispensable to ensure that the production process aligns with required quality standards.



In addition to its ease of use and versatility, the Ford viscometer PCE-125/2 allows for measurement customization, adapting to a wide range of fluids with different characteristics. Thanks to the ability to replace nozzles, precise measurements can be obtained on liquids with varying physical properties, ensuring high operational flexibility.



In conclusion, the viscometer is a fundamental tool for engineers and technicians who need to monitor the viscosity of fluids with precision. Its ability to provide accurate data is crucial for improving production efficiency, ensuring that final products meet quality requirements set by international standards. With the Ford viscometer PCE-125/2, companies can rely on a robust, precise, and globally compliant device, optimizing production and ensuring high-quality products in highly competitive sectors.



- Anodized aluminum - satin finish
- Including factory calibration certificate
- Overflow channel for clean work
- Complies with international standards
- Stand available as optional accessory



1 x Flow Cup Meter PCE-125/2
1 x Factory calibration certificate
1 x Glass plate
1 x User manual
