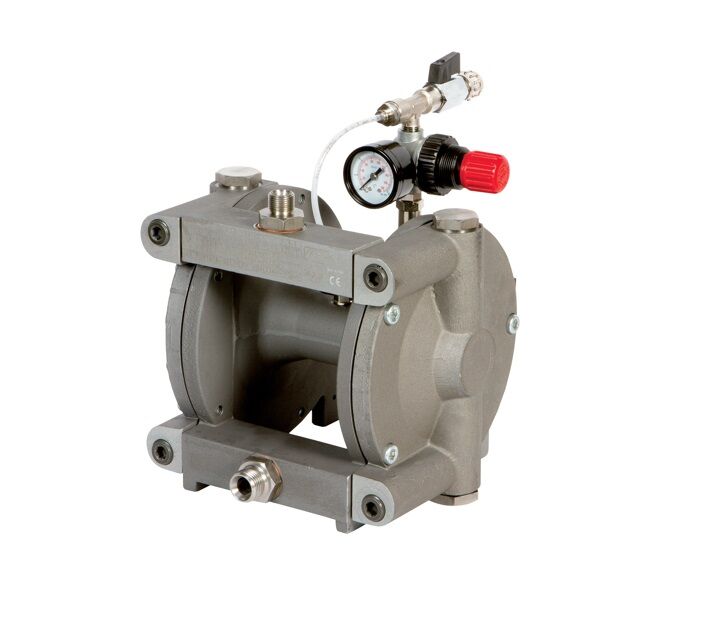

ASTURO 0212400 - K24 high capacity double diaphragm pump for transfer, regulator with pressure gauge - Nozzle 0.5÷5mm
(Incl. Tax: €748.36)
ASTURO 0212400 - K24 high capacity double diaphragm pump for transfer, regulator with manometer
High capacity pump for transferring paints, solvents, inks, adhesives, oils, resins, etc., anodised inside/outside, stainless steel connections, regulator with pressure gauge for painting furniture and plastic and metal products in industrial bodywork, automotive, aerospace and marine industries.
USABLE MATERIALS:
- Water- or solvent-based products
- Enamels
- Lacquers
- Tints
- Clear coats
- Primers
- Textured, hammered, embossed effect paints
- Glues and adhesives
CHARACTERISTICS:
- Pump body and heads in anodised aluminium, heat treated for greater mechanical resistance
- Stainless steel product inlet and outlet pipe connections
- MANIFOLD" metal air regulator unit, extremely reliable and compact, with almost unlimited duration over time
- Pump control valve with manual reset in the event of a stall
- Fluid transfer even at 1.5 bar of air
- Product passage regulator with stainless steel internal parts and fittings
- Anti-corrosion aluminium filter housing ergonomic and easy to remove for cleaning
- Possibility of mounting special membranes for products at temperatures up to 80 °C
- Stainless steel balls for instantaneous valve closure and absence of paint pulsation
- Product manufactured with parts and accessories of well-known Italian brands
TECHNICAL DATA:
flow rate: 24 l/min
ratio: 1 : 1
nozzle: 0,5÷5 mm
working pressure: 1÷8 bar
product outlet: 1/4" M
air inlet: 1/4" M
- Brand:
- ASTURO
- Application:
- Wood, Ferrous material, Plastic
- EAN Code:
- 8032819027994
- Typology:
- Pump
- Type of work:
- Adhesives, Glues, Primers, Oils, Solvent-based products, Resins, Transparent paints, Water-based paints
