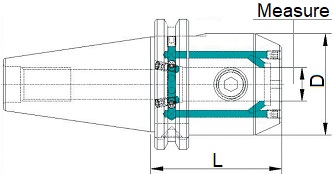

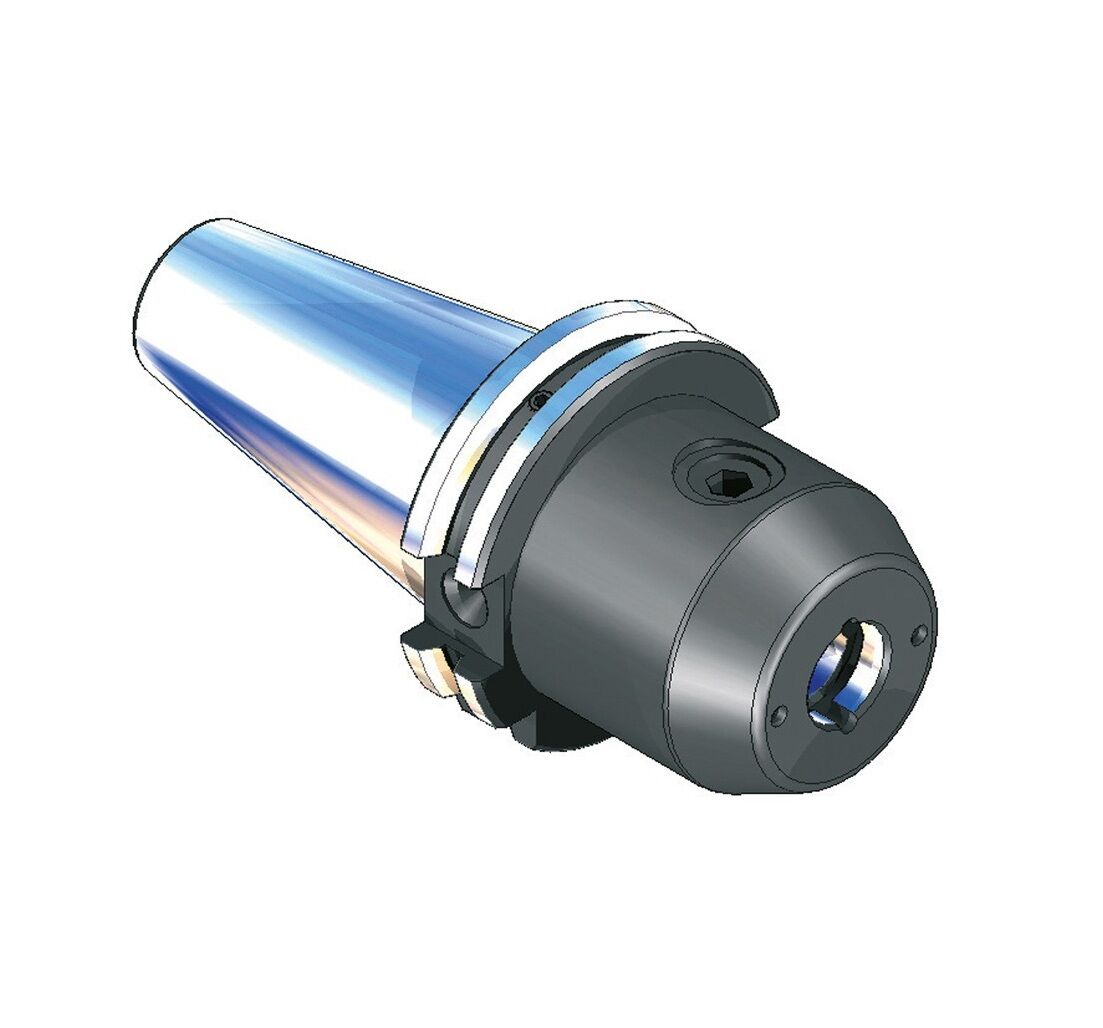

The WELDON-style tool holders with lubrication channels and DIN 69871 AD/B taper are components used in computer numerical control (CNC) machining centers for securing cutting tools, such as milling cutters. The WELDON system is renowned for its robustness and reliability, especially in high-speed and heavy-load applications, thanks to the use of a lateral clamping screw that securely locks the tool in place. The integrated lubrication channels allow coolant to flow directly onto the tool during machining, improving heat dissipation, reducing tool wear, and ensuring a better surface finish on the workpiece.

The DIN 69871 AD/B taper is a German standard that defines the dimensions and geometric characteristics of the tool holder, ensuring excellent concentricity and system rigidity. These tool holders are widely used in milling applications, such as machining metals, plastics, and other materials, particularly where high precision and stability are required. Made from high-strength steel and often heat-treated, WELDON tool holders offer long-lasting performance even under demanding conditions. The surfaces in contact with the tool are treated to reduce friction and wear, helping to maintain cutting efficiency.

The advantages of these tool holders include the rigidity of the tool during machining, the precision ensured by the DIN 69871 taper, and the extended tool life improved by the cooling channels, which reduce machining time, enhance product quality, and facilitate easy chip removal from the cutting edge during material removal processes. To maintain optimal performance, regular maintenance is essential, including cleaning the coolant passages and the tool holder taper and machine spindle interface. Periodically, it is recommended to check for wear on both the tool holder taper and the machine spindle nose.
