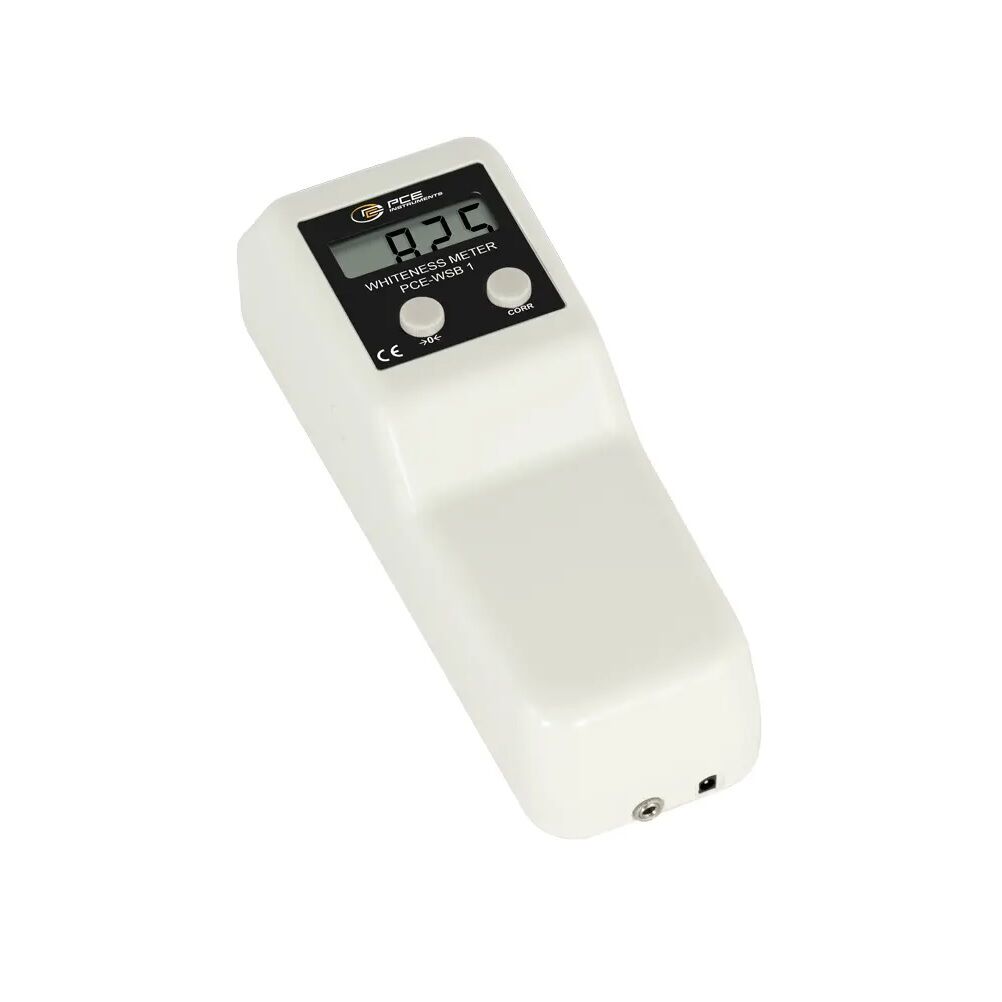

PCE Instruments PCE-WSB 1 digital whiteness meter to measure the whiteness of paper
In stock
SKU
PCE-WSB-1
€1,708.07
(Incl. Tax: €2,083.85)
(Incl. Tax: €2,083.85)
The whiteness meter PCE-WSB 1 measures the degree of gloss of paper, cellulose, etc. Through the intensity of the diffuse reflections, the colorimeter defines the degree of whiteness on flat surfaces as 100, while the degree of whiteness of a completely black surface is defined as 0. The PCE-WSB 1 brightness Tester complies with the international ISO standards 2470 and ISO 3688.
The battery power supply of the whiteness meter allows you to take the instrument anywhere and carry out the measurements at the moment and in the chosen place, while the high resolution display facilitates the reading of the values. With the PCE-WSB 1 brightness Tester, measurements can be made on all types of paper to determine their degree of whiteness. The carrying case included in the shipment, the compact shape and the low weight of the colorimeter allow a comfortable measurement in any place. The whiteness meter convinces with high-precision measurements with low energy consumption.
- Measures the whiteness degree of blue light (Wb = R457)
- Meets ISO 2470 and ISO 3688 standards
- Compact, lightweight and user-friendly
- Easy-to-read liquid crystal display (LCD) screen
- Includes black, white and brilliance standards for DIY calibration
- Resolution: 0.1
- Repeat accuracy : ±0.1
- Meets ISO 2470 and ISO 3688 standards
- Compact, lightweight and user-friendly
- Easy-to-read liquid crystal display (LCD) screen
- Includes black, white and brilliance standards for DIY calibration
- Resolution: 0.1
- Repeat accuracy : ±0.1
Specification:
|
Measuring range
|
0 … 100.0 (displays values up to 199.9) |
| Whiteness degree formula | Whiteness degree of blue lightWb = R457 |
| Light source | Approximating A; simulating D65 |
| Light measuring conditions | 45/0 |
| Display resolution | 0.1 |
| Display accuracy | ± 0.1 |
| Standards | ISO 2470; ISO 3688 |
| Display | Liquid crystal display (LCD) |
| Measuring aperture | Diameter Ø 15 mm / 0.6" |
| Power supply | 5 x 1.5 V AA batteries |
| Operating conditions | +5 ... +35 °C / +41 ... +95 °F; < 85 % RH |
| Dimensions | Approx. 235 x 75 x 65 mm / 9.25 x 2.9 x 2.5" |
| Weight | Approx. 500 g / 1.2 lbs |

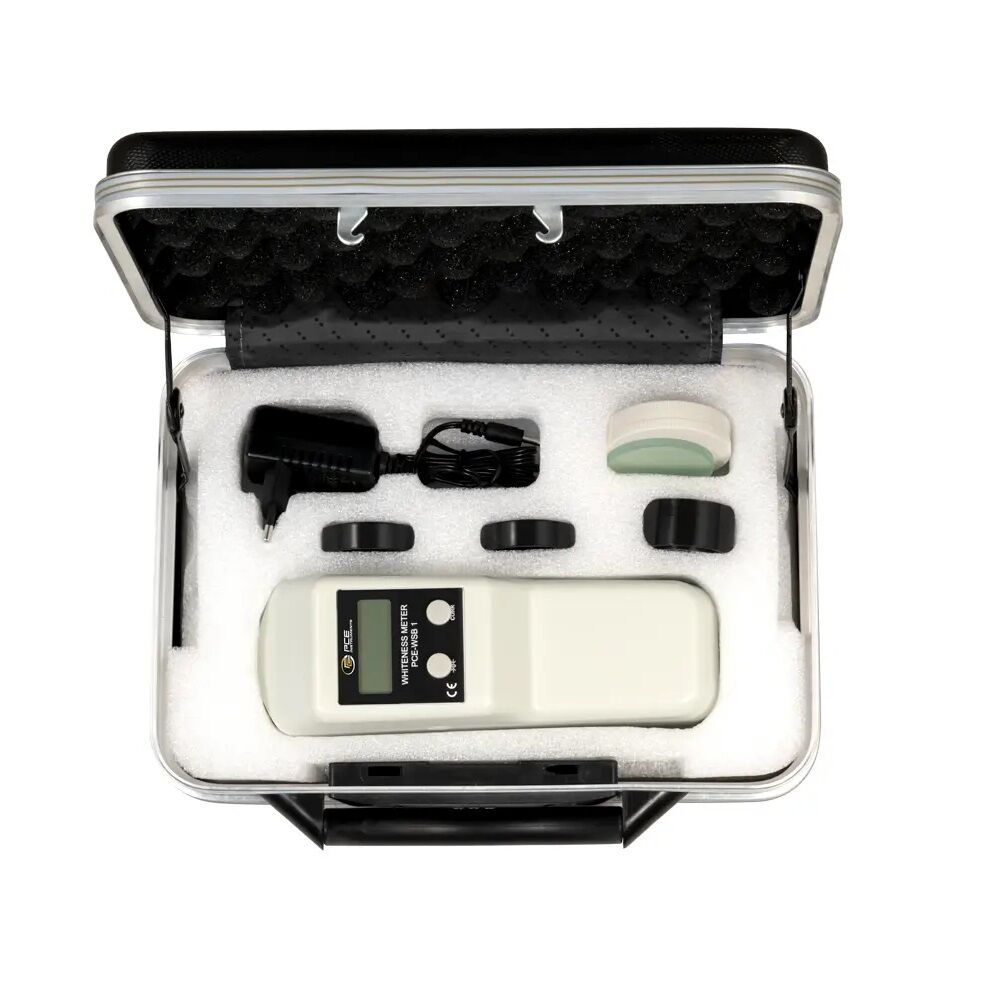

Delivery scope:
1 x PCE-WSB 1 whiteness meter
1 x brilliance calibration standard
1 x black calibration standard
1 x white calibration standard
2 x powder test boxes
1 x user manual
1 x carrying case
1 x brilliance calibration standard
1 x black calibration standard
1 x white calibration standard
2 x powder test boxes
1 x user manual
1 x carrying case
- EAN Code:
- 4250348710826
- Typology:
- Color
- Brand:
- PCE INSTRUMENTS
