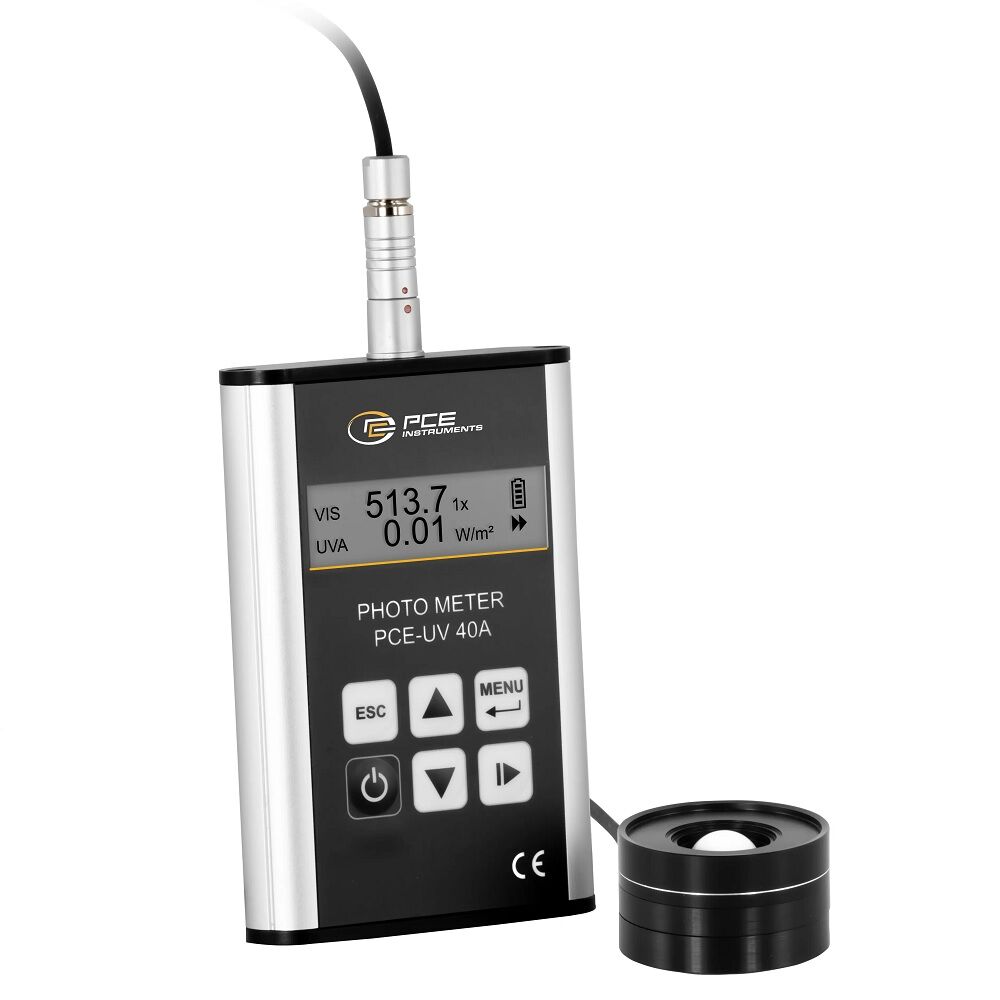

PCE Instruments PCE-UV 40A Simultaneous UV and light meter, independent of lamp type and with measurement value memory
In stock
SKU
PCE-UV-40A
€2,165.91
(Incl. Tax: €2,642.41)
(Incl. Tax: €2,642.41)
The UV meter is a versatile and precise instrument with dual channels for simultaneously measuring UV radiation and visible light. Thanks to the external sensor, it can take detailed measurements at various points, essential for tests according to 'EN ISO 9934-1' and 'EN ISO 3059'. Data storage facilitates trend monitoring and test documentation. Indispensable for material tests, sunroom control and lighting verification.
Features:
- 2-channel meter: UV and visible light
- External sensor
- Simultaneous measurement
- Measuring range up to 100 W/m²
- UV light control for material testing
- Automatic switching of measuring range 0...10 klux
- Accurate measurement of light intensity independent of light source
- Internal memory
- 2-channel meter: UV and visible light
- External sensor
- Simultaneous measurement
- Measuring range up to 100 W/m²
- UV light control for material testing
- Automatic switching of measuring range 0...10 klux
- Accurate measurement of light intensity independent of light source
- Internal memory
| Light | |
| Measuring range | 0 lx ... 10 klx |
| resolution | 0.1 lx |
| accuracy | f1 ≤ 3% |
| UV | |
| Measuring range | 0 W/m² ... +100 W/m² |
| resolution | 0.01W/m² |
| accuracy | According to EN ISO 3059 V(λ) CIE ∆λ1/10 320 – 395nm ∆λ1/2 337 – 385nm λmax 365nm Sλ=313nm < 5% Sλ=405nm < 0.5% |
| General technical data | |
| Display type | LCD with lighting |
| Storage medium | Internal memory |
| Storage capacity | 20 records |
| interface | Mini USB |
| Norm(s) | ISO/CIE 19476, EN ISO 3059, EN ISO 9934 |
| Measuring rate | 1Hz |
| Menu language | English, Polish |
| Protection class (device) | IP20 |
| Weight | 148g / 0.3 lbs |
| Device weight with scope of delivery | 1198g / 2.6 lbs |
| Device weight including scope of delivery and outer packaging | 1377g / 3 lbs |
| Dimensions (L x W x H) | 118 x 72 x 20 mm / 4.6 x 2.8 x 0.8 in |
| Other dimensions | Probe Ø44 x 25.5 mm Cable length probe 1.5 m / 4.9 ft Extension rod 460 mm / 18.1 in |
| Operating conditions | -10 ... 50°C / 14 ... 122°F, 0 ... 90% RH |
| Storage conditions | -10 ... 50°C / 14 ... 122°F, 0 ... 80% RH |
| Languages of the instructions | English |
The UV radiation meter is a versatile and precise instrument designed for simultaneous measurement of UV radiation and visible light thanks to its dual-channel feature. This capability is particularly advantageous for applications requiring a comprehensive characterization of light.
The external sensor allows for flexible use of the UV radiation meter to perform detailed measurements at different locations. This function is essential for measuring UV lamps used in material testing according to "EN ISO 9934-1" and "EN ISO 3059" standards, where accurate UV radiation data is crucial. Precise measurements ensure reliable quality control during the processing of UV-sensitive materials.
Data storage makes the device particularly practical, enabling users to record and analyze measurement values to monitor long-term trends or document quality tests.
In summary, the UV radiation meter provides a complete solution for applications requiring accurate measurement of UV radiation and visible light. With its advanced functions and simultaneous measurement capability, it is an indispensable tool for material testing, solarium control, and workplace illumination verification.
Shipping contents:
1 x UV meter PCE-UV 40A
1 x UV / Lux sensor
1 x Holder for sensor
1 x Sensor extension
1 x Transport case
Operating instructions (available in English, Italian in translation)
The UV radiation meter is a precision instrument designed for measuring ultraviolet (UV) radiation. This device is essential for monitoring and evaluating UV exposure in various environments and industries.
The UV radiation meter quantifies the intensity of UV radiation under different environmental conditions. Measurement is achieved through highly sensitive sensors that detect UV radiation and provide accurate readings. Users can monitor UV exposure levels and take appropriate measures to ensure safety and process effectiveness.
This instrument is applicable across a wide range of sectors, including:
- Research laboratories: for studies in radiobiology and its implications.
- Healthcare industry: to monitor UV exposure during therapeutic and sterilization treatments.
- Photovoltaic sector: to test the effectiveness of solar panels and other UV technologies.
- Industrial environment: for monitoring exposure in production settings and testing UV-sensitive materials.
Operators using the UV radiation meter include laboratory technicians, quality engineers, and safety specialists. The required expertise varies depending on the context, but all users must be able to interpret readings and apply necessary safety measures to mitigate risks associated with UV exposure.
In summary, the UV radiation meter is a crucial tool for effective UV radiation management, ensuring compliance with safety standards and optimizing performance across various professional and industrial domains.
