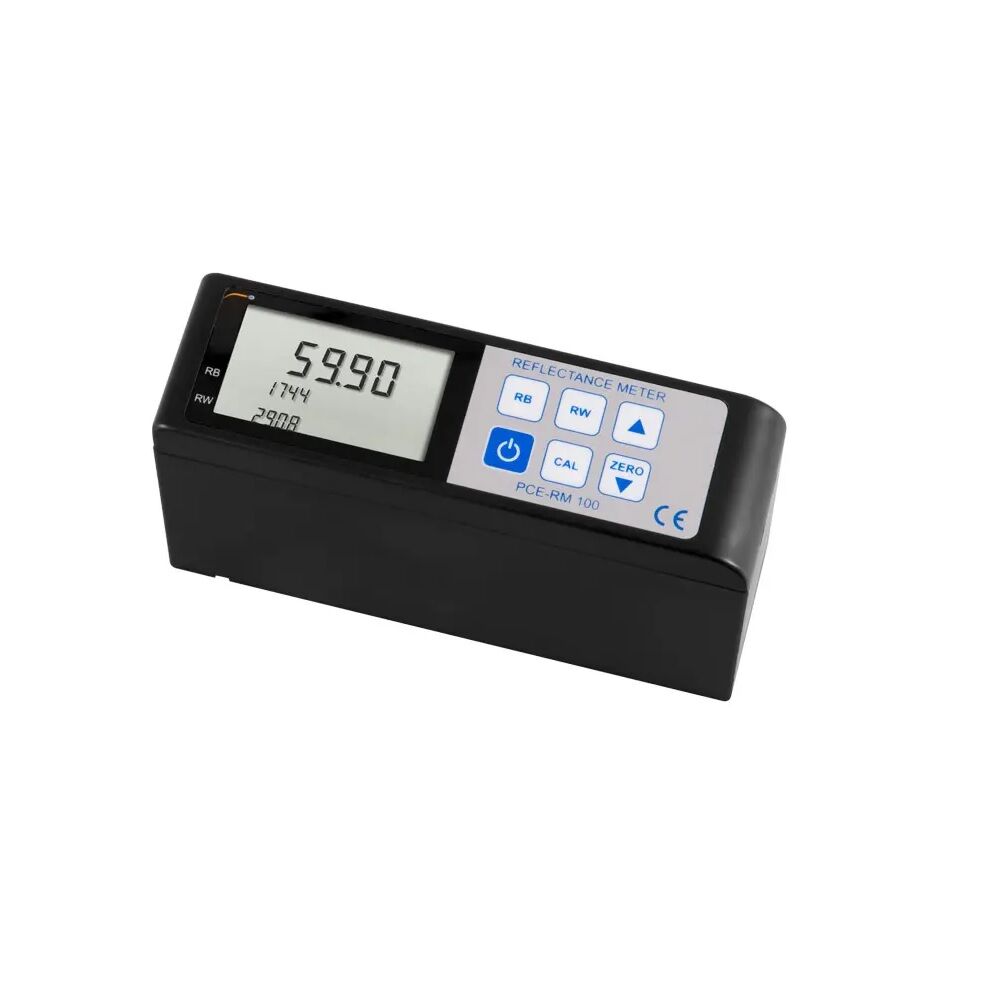

PCE Instruments PCE-RM 100 Reflectometer for determining the reflection of surfaces
In stock
SKU
PCE-RM-100
€652.71
(Incl. Tax: €796.31)
(Incl. Tax: €796.31)
The reflectometer is used to measure the reflection properties of surfaces related to opacity. The PCE-RM 100 glossmeter is used in furniture construction, workplace control, lighting design etc. The surface testing measures the reflectance off the surface in which a light is reflected from the surface. Subsequently, the reflection of the light is compared with an absolute black and an absolute white background, and from this the degree of opacity is determined mathematically. The gloss meter measures the surface reflectance according to the currently valid international standards ISO3906-1980, ISO3905, ISO2814.
The surface reflection is an important measure to detect, for example, whether a furniture surface for the human eye is too reflective and so unpleasant. The reflectometer PCE-RM 100 can measure this reflection directly in the development of furniture decors and the engineer can make a statement of quality.
- Measurement of surface opacity
- Large LC display
- Battery operation
- Interface and software
- Easy handling
- Reflectance measurement up to 100
- Large LC display
- Battery operation
- Interface and software
- Easy handling
- Reflectance measurement up to 100
Specification:
| Measuring range | 0 ... 100 (0 is transparent and 100 is fully opaque) |
| Optical measurement angle | 45º degree angle |
| Measurement accuracy | ± 1 |
| Resolution | 0.1 |
| Repeatability | ± 0.3 |
| Measuring surface | 7 x 14 mm (elliptical) |
| Interface | USB |
| Power supply | 3.7V Li-ion battery |
| Operating conditions | 0 ... 40°C / 32 ... 104°F, <85% rh |
| Dimensions | 141 x 45 x 79 mm / 5.6 x 1.8 x 3.1 in |
| Weight | About 310 g / < 1 lb |

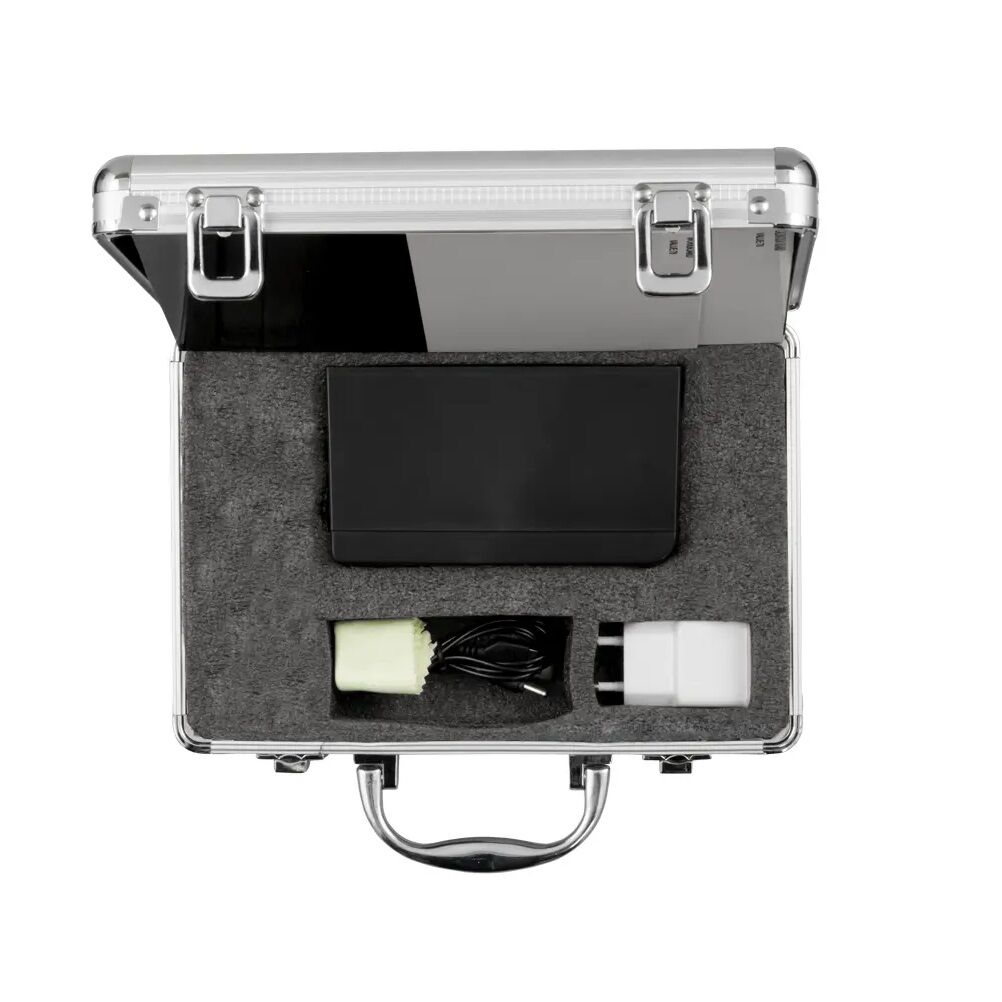

Delivery scope:
1 x Gloss meter PCE-RM 100 for opacity
1 x White & black standard
1 x White & black test box
1 x Power supply
1 x Cleaning cloth
1 x Carrying case
1 x Operating instructions
1 x White & black standard
1 x White & black test box
1 x Power supply
1 x Cleaning cloth
1 x Carrying case
1 x Operating instructions
- EAN Code:
- 4250348719331
- Typology:
- Glossmeters
- Brand:
- PCE INSTRUMENTS
- Resolution (mm):
- 0.1 GU
- Measurements range:
- 0 - 100 GU
