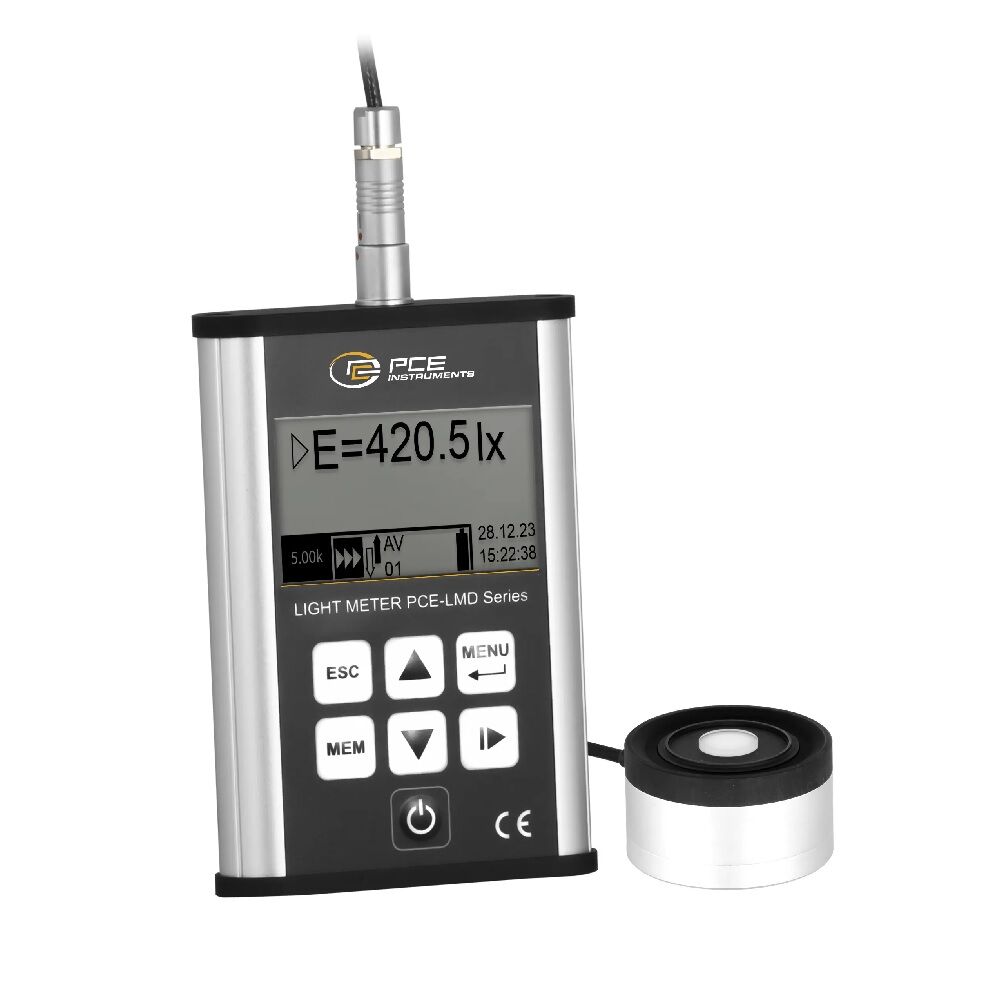

PCE Instruments PCE-LMD 200 Lux Meter class A according to DIN 5032-7 with 8 GB measured value memory, auto-range switching and external sensor
In stock
SKU
PCE-LMD-200
€1,971.91
(Incl. Tax: €2,405.73)
(Incl. Tax: €2,405.73)
The luxmeter complies with DIN 5032-7, ensuring precise and reliable light measurements up to 500,000 lux. Its accuracy class A ensures high reproducibility, essential for applications requiring accurate light intensity measurements. Versatile for various situations, from lighting control at work to trade fairs or outdoors, the lux meter is equipped with external sensors and integrated memory for easy data logging.
The luxmeter, with external sensor and probe holder, facilitates measurements in hard-to-reach places and offers a practical integrated memory. Thanks to this functionality, measurement results can be saved and automatically recorded for further analysis. With the optional luminance adapter, the device can be extended for surface or distance measurements at 1° measuring angle. Overall, the luxmeter combines precision, versatility and ease of use, making it ideal for various light measurement situations in indoor, outdoor and industrial environments.
- Precision according to DIN 5032-7
- Large measuring range: 0.000 lx ... 500 klux
- Accuracy class: A
- External sensor
- 8 GB measured value memory
- Battery operation
|
Light
|
|
| Measurement range | 0 lx ... +50 lx |
| Resolution | 0.001 lx |
| Accuracy | Total error ≤ 2.0% (CIE, DIN 5032-7) Class A @ 10 ... 40 °C |
| Light | |
| Measurement range | +50 lx ... +5 klx |
| Resolution | 0.1 lx |
| Accuracy | Total error ≤ 2.0% (CIE, DIN 5032-7) Class A @ 10 ... 40 °C |
| Light | |
| Measurement range | +5 klx ... +500 klx |
| Resolution | 0.01 klx |
| accuracy | total error ≤ 2.0% (CIE, DIN 5032-7) class A @ 10 ... 40 °C |
| General technical data | |
| Units | lx, klx |
| Display type | LCD |
| Display refresh rate | 1 x per second |
| Storage medium | Micro-SD card |
| Memory interval of | 1 s |
| Memory interval up to | 60 s |
| Memory capacity | 8 GB |
| Interface | Micro-USB |
| Standard(s) | DIN 5032-7, ISO/CIE 19476, EN 12464-1, EN 12464-2, EN 12665 |
| Operating time | 23 h |
| Measurement rate | 1 Hz |
| Classification | A (CIE, DIN 5032-7) |
| Menu language | English, Polish |
| Protection class (appliance) | IP20 |
| Power supply | 5V DC / max. 2,1A |
| Weight | 172 g |
| Device weight with delivery | 1.67 kg |
| Equipment weight with scope of delivery and outer packaging | 1,71 kg |
| Dimensions (L x W x H) | 118 x 74 x 21 mm |
| Other dimensions | Probe dimensions: Ø 44 x 25 mm . Extension rod: approx. 1 metre |
| Operating conditions | -20 ... 50 °C , 90 % r.H. |
| storage conditions | -20 ... 50 °C , 90 % RH |
| Languages of the instructions | English |
Delivery scope:
1 x PCE-LMD 200 lux meter
1 x lux sensor
1 x micro USB charging cable
1 x 8 GB micro SD memory card incl. adapter
1 x probe holder
1 x long extension rod
1 x USB power supply
2 x operating instructions
1 x transport case
- EAN Code:
- 4250348733849
- Typology:
- Luxmeter
- Brand:
- PCE INSTRUMENTS
- Measurements range:
- 0 - 500 klux
