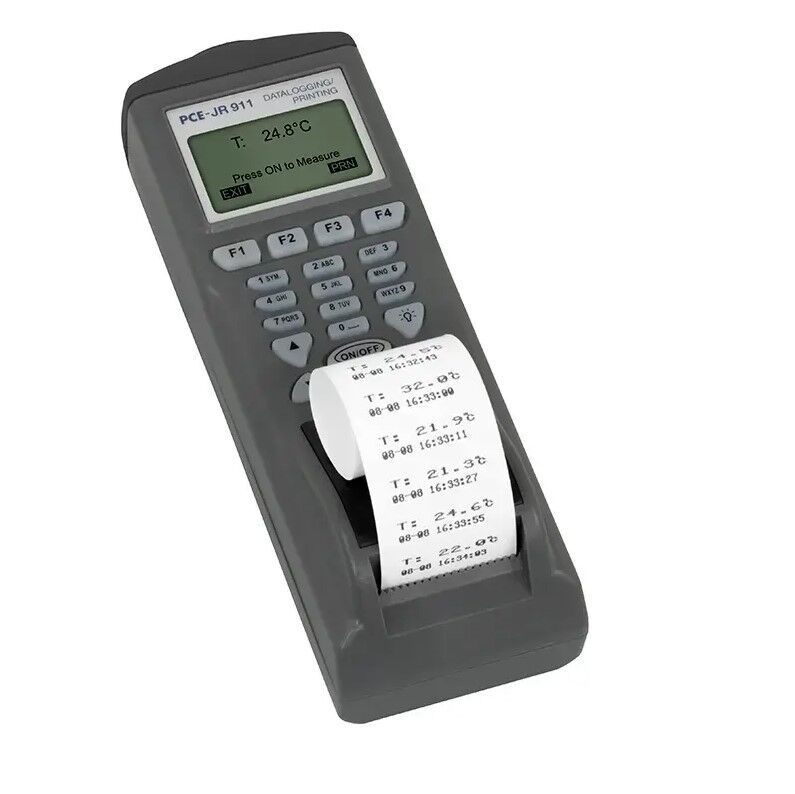

PCE Instruments PCE-JR 911 Pyrometer, measures temperature without contact, with memory, software, and integrated printer for industrial and research applications
In stock
SKU
PCE-JR-911
€465.50
(Incl. Tax: €567.91)
(Incl. Tax: €567.91)
The PCE-JR 911 pyrometer is an advanced instrument for contactless temperature measurement. Thanks to the internal memory that stores up to 12,000 values, it allows for rapid data analysis. Using the RS-232 interface, it is possible to transmit results to a PC for detailed evaluation. Equipped with an integrated printer, the pyrometer allows for printing values anywhere. The Plug and Play function simplifies use, while the visible laser beam facilitates locating the measurement point. With an adjustable emissivity and the ability to designate 99 measurement positions, it is ideal for industrial, food, and research applications. Delivered already calibrated, it is possible to request an ISO certification from an accredited laboratory, as well as accessories such as a tripod for prolonged measurements.
Technical specifications:
| Temperature range | -40 to 500°C / -40 - 932°F |
| Resolution | 0.1°C / 0.18°F |
| Accuracy | ±2% of reading or ±2°C / 3.6°F (the highest value is valid) |
| Emissivity | 0.3 - 1.0 (adjustable) |
| Optical resolution | 8:1 |
| Response time | 0.2 seconds |
| Memory | 1200 readings |
| Interface | RS-232 (optional RS-232 to USB adaptor available) |
| Measurement interval | (adjustable) |
| Printer | Integrated thermal printer, 38 mm / 1.5 in wide for 28 x 30 mm / 1.1 x 1.2 in paper |
| Display | LCD |
| Power | 4 AA batteries or optional mains adaptor |
| Dimensions | 208 x 70 x 53 mm / 8.2 x 2.8 x 2 in |
| Weight | 260 g / < 1 lb |
The pyrometer represents an advanced and essential instrument for contactless temperature measurement, crucial in multiple fields such as industry, scientific research, and quality control. The PCE-JR 911 pyrometer is designed to meet a variety of measurement needs, allowing for precise detection of surface temperatures from a distance. Its ability to measure without contact makes it ideal for situations where the monitored surface is hard to reach or could be damaged by direct contact.
One of the distinctive features of this pyrometer is its internal memory, which can store up to 12,000 measurement values. This functionality allows operators to perform series measurements and subsequently transfer the data to a computer via the RS-232 interface. The ability to store and manage data effectively makes this device particularly useful in work environments where constant monitoring is crucial for ensuring product quality and process efficiency.
The configuration and use of the PCE-JR 911 pyrometer are extremely simple and intuitive, making it accessible even to those without specific technical training. Equipped with an integrated printer, the pyrometer allows for immediate printing of measured values, thus facilitating real-time documentation and reporting. This function is particularly valued in industrial settings, where immediate data recording is fundamental for monitoring and controlling production processes.
Another important feature is the ability to designate up to 99 measurement positions, providing users with an effective way to classify and manage collected data. This is useful for comparative analysis or for monitoring temperatures in different sections of a production facility. The adjustable emissivity allows the pyrometer to be adapted to various materials, ensuring accurate readings even on uneven surfaces.
The use of a visible laser beam greatly enhances the device's precision, facilitating the identification of the measurement point even in low-visibility situations. The pyrometer is designed to operate under various environmental conditions, and its robust design makes it suitable for challenging work contexts. Furthermore, as it is delivered calibrated, it is ready for use, although it is possible to request an ISO certification for additional guarantees of accuracy and reliability.
In industrial applications, this pyrometer finds use in numerous sectors, including automotive, electronics, and the food industry. In these areas, it is vital to monitor temperatures to ensure product quality and process safety. For instance, in the food sector, the pyrometer can be used to ensure that materials are stored at optimal temperatures, preventing contamination or spoilage.
It is also possible to request optional accessories, such as a tripod for long-term measurements, an RS232-USB adapter to facilitate connection to modern computers, and replacement paper rolls for the integrated printer. These additional options make the PCE-JR 911 pyrometer even more versatile, adapting to the various needs of users.
In conclusion, the pyrometer is not just a tool for recording temperature, but a versatile and innovative device that enables precise and thorough control of processes. Its ease of use, combined with its reliability and rich range of features, makes it an indispensable resource for engineers, technicians, and professionals working in technical and scientific fields. Thanks to its advanced technology, the PCE-JR 911 pyrometer not only improves the quality of measurements but also contributes to the optimization of production processes and the safeguarding of safety in various work environments.
Caratteristichs:
- Easy to use
- Adjustable date and time
- Printer, memory and Thermometer integrated
- RS-232 interface
- Thermometer for up to 1200 readings
- Possibility to designate 99 measurement positions
- Software with RS-232 cable
- Infrared point for accuracy
- Adjustable emissivity
- Can be mounted on a tripod
- Backlit display
- Auto shut-off function
- Modes of operation:
- Measurement and printing of data
- Measurement and printing of data in tables
- Measurement time intervals over a long duration, readings transferred to a computer
- Adjustable date and time
- Printer, memory and Thermometer integrated
- RS-232 interface
- Thermometer for up to 1200 readings
- Possibility to designate 99 measurement positions
- Software with RS-232 cable
- Infrared point for accuracy
- Adjustable emissivity
- Can be mounted on a tripod
- Backlit display
- Auto shut-off function
- Modes of operation:
- Measurement and printing of data
- Measurement and printing of data in tables
- Measurement time intervals over a long duration, readings transferred to a computer
***ATTENTION*** The temperature sensors are designed for industrial and laboratory surface temperature measurement ONLY. It is not designed or certified for body temperature measurement or for medical use.
Delivery scope:
1 x PCE-JR 911 Pyrometer
1 x Carrying case
4 x Batteries
1 x Roll of paper
1 x Software for Windows
1 x RS-232 cable
1 x User's manual
1 x Carrying case
4 x Batteries
1 x Roll of paper
1 x Software for Windows
1 x RS-232 cable
1 x User's manual
- EAN Code:
- 4250348701657
- Typology:
- Industry & Process
- Brand:
- PCE INSTRUMENTS
