PCE Instruments PCE-IRT 10 Pyrometer for fixed installation with emission degree adjustable between 0.1 and 1000, measuring range from 0 to 600°C
(Incl. Tax: €526.49)
The PCE-IRT 10 is a fixed installation infrared thermometer designed for accurate temperature measurement. It features an adjustable emissivity setting ranging from 0.1 to 1.0, allowing for precise readings across various materials. The measurement range extends from 0 to 600°C, making it suitable for a wide range of industrial applications where temperature monitoring is essential.
The fixed-installation pyrometer is designed for continuous temperature monitoring in industrial processes, featuring a stainless steel housing with IP65 protection for reliable operation in demanding environments. With a fast 150 ms response time and adjustable emissivity from 0.1 to 1.000, it delivers precise 0-600°C measurements through its 4-20 mA analog output, scalable across the entire temperature range.
Technical specifications:
| Measuring range | 0 - 600°C / 32 - 1112°F |
| Measurement accuracy | ±Measuring range1.5°C / 2.7°F or 1% of the measured value, whichever is greater applies |
| Repeatability | ± 1°C / 1.8°F or 0.5% of the measured value, the higher value applies |
| Optical resolution | 20: 1 |
| Output signal | 4 - 20-mA |
| Spectral sensitivity | 8 - 14 µm |
| Emissivity | Adjustable 0.100 - 1.000 |
| Power supply | 12 - 24V DC max. 20-mA |
| Load | 500 ohms |
| Protection class | IP65 |
| Material | Stainless steel |
| Operating temperature | 0 - 70°C / 32 - 158°F |
| Relative humidity | 10 - 85% |
| Measurement time | 150 ms |
| Cable length | 3 m / 9.8 ft |
| Display | LCD display |
| Dimensions | Ø59.5 x 63.5 mm / 2.3 x 2.5 in |
| Weight | Approx. 200 g / < 1 lb |

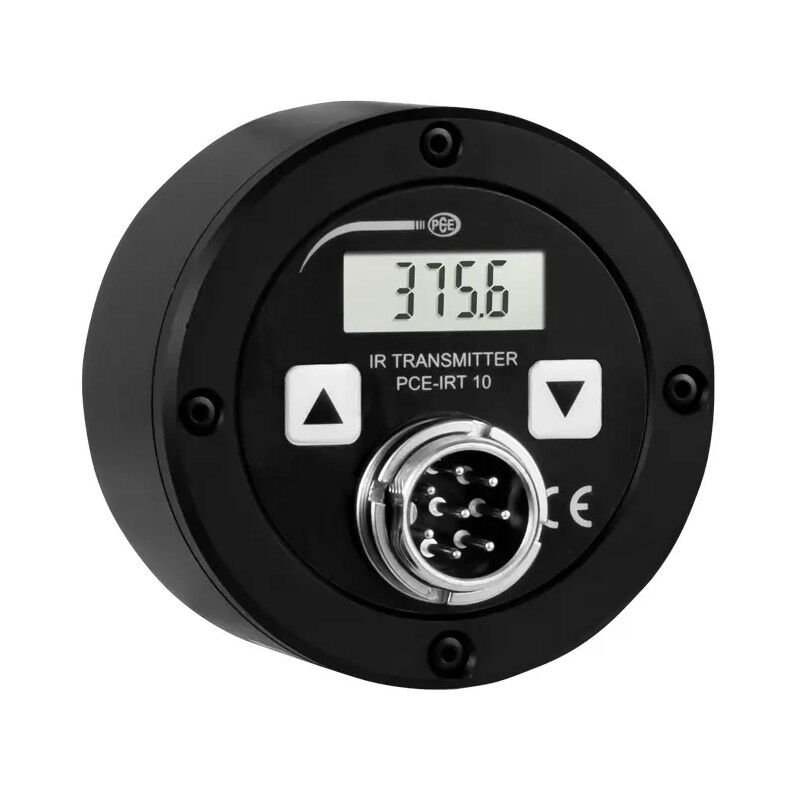

The device includes a 1-meter connection cable and operates on 12-24 V DC power, while its backlit display shows real-time measurements and allows for emissivity adjustments. The included mounting bracket enables direct installation on machinery for process control applications, combining rugged construction with quick-response thermal monitoring capabilities in a compact, maintenance-free package.
Features:
- Measurements from 0 - 600°C / 32 - 1112°F

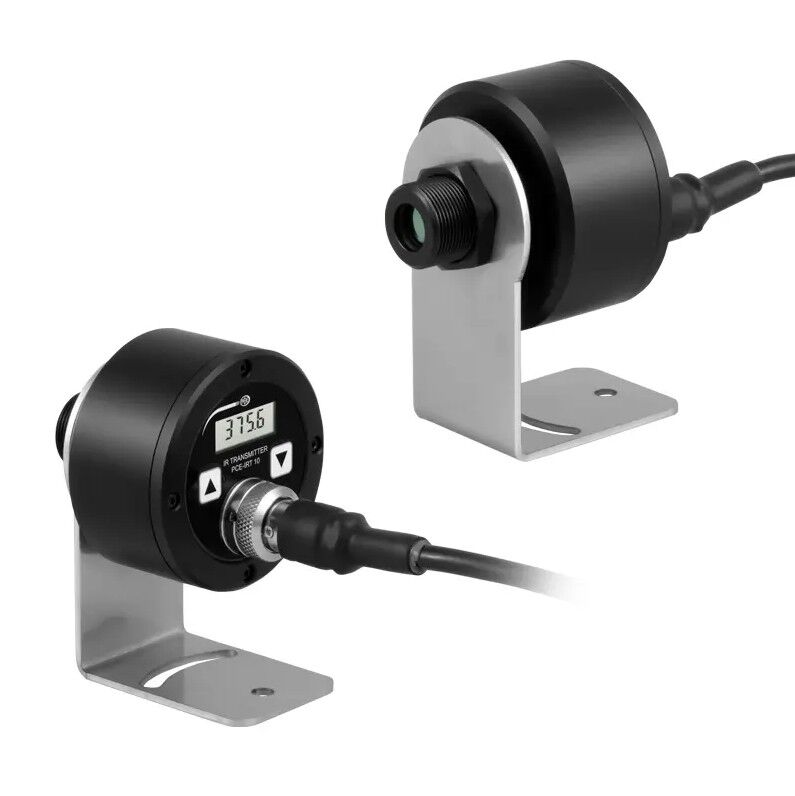

- Including mounting bracket
- Output signal: 4 - 20-mA
- Easy operation and assembly
- 150 ms response time
- 3 m / 9.8 ft connection cable

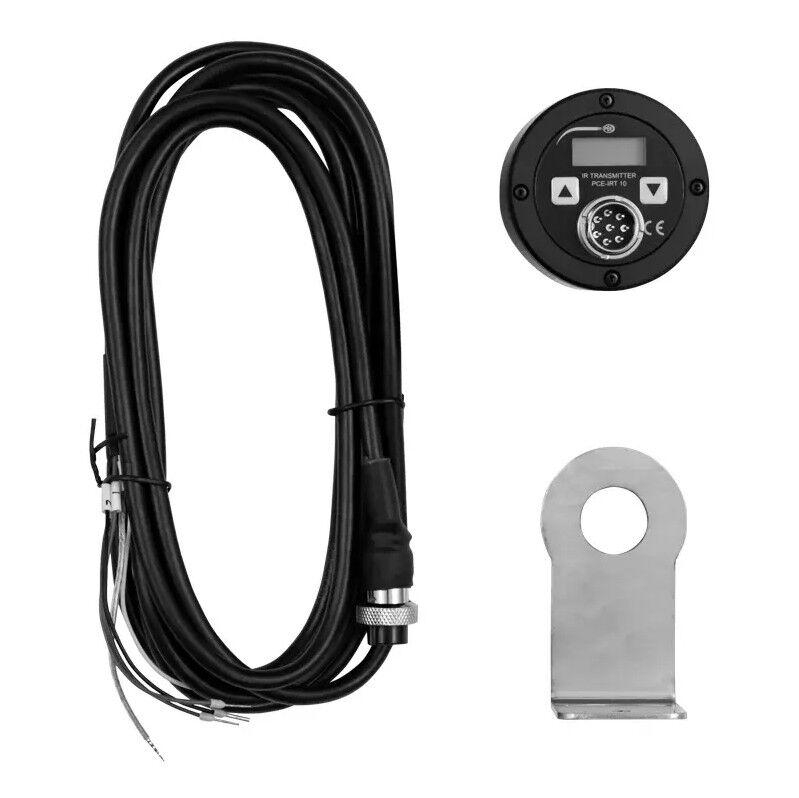

Delivery scope:
1 x Thermometer PCE-IRT 10
1 x Mounting bracket
1 x Instruction manual
- EAN Code:
- 4250348722300
- Typology:
- Industry & Process
- Brand:
- PCE INSTRUMENTS
- Resolution (mm):
- ±1.5°C
- Temperature:
- 0°C +600°C
