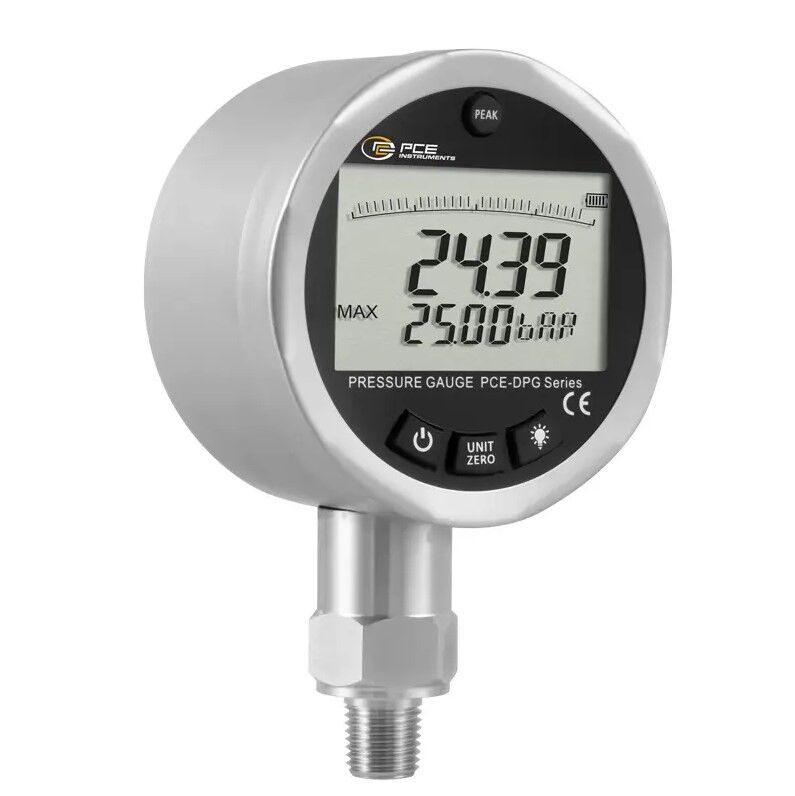

PCE Instruments PCE-DPG 25 Digital manometer for water and gas with backlit display, pressure detection, bar graph, and 1/4" NPT threaded connector
In stock
SKU
PCE-DPG-25
€324.85
(Incl. Tax: €396.32)
(Incl. Tax: €396.32)
The manometer is an essential tool for monitoring the pressure of gas and water, featuring a 1/4" NPT threaded connector. Thanks to its high resolution and precision, it is suitable for multiple applications. The device displays the current value in both numerical format and as a bar graph, making reading easier. It is equipped with a PEAK function for detecting maximum and minimum values, activated by a simple button. The large 2.5" display allows for easy reading of measurements, with selectable units such as Mpa, bar, Kpa, mH2O, kg/cm², psi, mmH2O, in.WC, and mbar. With a response time of less than 50 ms, the manometer is ideal for vacuum control, leak testing, and pressure monitoring. The adjustable backlighting enhances visibility in low-light conditions. Powered by three 1.5V AAA batteries, the manometer is designed for prolonged and versatile use in various contexts.
Technical specifications:
| Measuring range | 0 - 362.6 psi, 0 - 25 bar |
| Resolution | 0.145 psi, 0.01 bar |
| Accuracy | 0.25% FSO |
| Pressure | Relative |
| Overpressure | 1.5 times |
| Measurable media | Gases, water |
| Response time | < 50 ms |
| Housing material | Metal |
| Measurement units | Mpa, bar, Kpa, mH2o, kg / cm², |
| psi, mmH2o, in.WC, mbar | |
| Protection class | IP56 |
| Diameter display | 2.5" |
| Dimensions (without sensor) | Ø80 x 50 mm / 3.1 x 2 in |
| Pressure connection | 1/40" NPT |
| Power supply | 3 x 1.5V AAA batteries |
| Environmental conditions | -10 - 60°C / 14 - 140°F, < 80% RH |
| Weight | Approx. 276 g / < 1 lb (without batteries) |
The manometer is an essential device used for measuring the pressure in gases and liquids, playing a crucial role in many sectors, from manufacturing to hydraulic system installation. This instrument is designed to provide accurate and reliable readings, making it indispensable for engineers and technicians who need to monitor the operating conditions of their systems.
The manometer is particularly useful for pressure control in environments where safety is paramount. With a 1/4" NPT threaded connector, this device can be easily connected to existing pipes and systems. Thanks to its high resolution, the manometer ensures accurate readings, allowing operators to make informed and timely decisions.
Using the manometer is simple and straightforward. Operators connect the device to the system under examination and read the values on the digital display. A distinctive feature of the manometer is its adjustable backlighting, which facilitates data reading even in low-light conditions or confined spaces. The display not only shows pressure values as numbers but also includes a bar graph, providing an immediate visual representation of the readings, enhancing the understanding of pressure variations over time.
One of the most advanced features of the manometer is the PEAK function, which allows for recording and displaying maximum and minimum pressure values at the push of a button. This is particularly useful in applications where rapid pressure fluctuations are common, and monitoring peaks is essential for operational safety. Users can choose from various measurement units, such as Mpa, bar, Kpa, mH2O, kg/cm², psi, mmH2O, in.WC, and mbar, making the manometer versatile and suitable for a wide range of applications.
The manometer boasts a response time of less than 50 ms, meaning it provides readings almost in real-time, a crucial factor for continuous pressure monitoring. This instrument is commonly employed in vacuum control, leak testing of hydraulic systems, and pressure monitoring in pneumatic systems, where it is essential to ensure that pressures remain within predetermined safety limits.
Furthermore, the design of the manometer includes the option to mount it on a stand, allowing for greater stability and optimal reading angles. This is particularly advantageous in situations where working conditions may vary, such as in test laboratories or construction sites. Powered by three 1.5V AAA batteries, the manometer is designed for long-lasting use, making it suitable for extended field applications.
The robustness and ease of use of the manometer make it a valuable tool for professionals who can rely on its reliability to maintain high standards of safety and performance. The manometer is also fundamental in preventive maintenance, as regular pressure readings can prevent malfunctions and failures in systems.
In summary, the manometer represents an indispensable tool for anyone working in the field of pressure measurement, thanks to its combination of advanced technology, versatility, and ease of use. This device enables engineers and technicians to maintain strict control over their operations, contributing to ensuring that every project is executed safely and efficiently.
Caratteristichs:
- Measuring range up to 362.6 psi, 25 bar
- Scaled bar graph
- Battery powered 3 x 1.5V AAA
- Large 2.5" display
- Adjustable backlight
- 1.4" NPT connection thread
- Scaled bar graph
- Battery powered 3 x 1.5V AAA
- Large 2.5" display
- Adjustable backlight
- 1.4" NPT connection thread
Delivery scope:
1 x Manometer PCE-DPG 25
3 x Batteries 1.5V AAA
1 x Operating instructions
- EAN Code:
- 4250348721273
- Typology:
- Pressure gauge
- Brand:
- PCE INSTRUMENTS
- Resolution (mm):
- 0.01
- Measurements range:
- 0 - 25 bar
