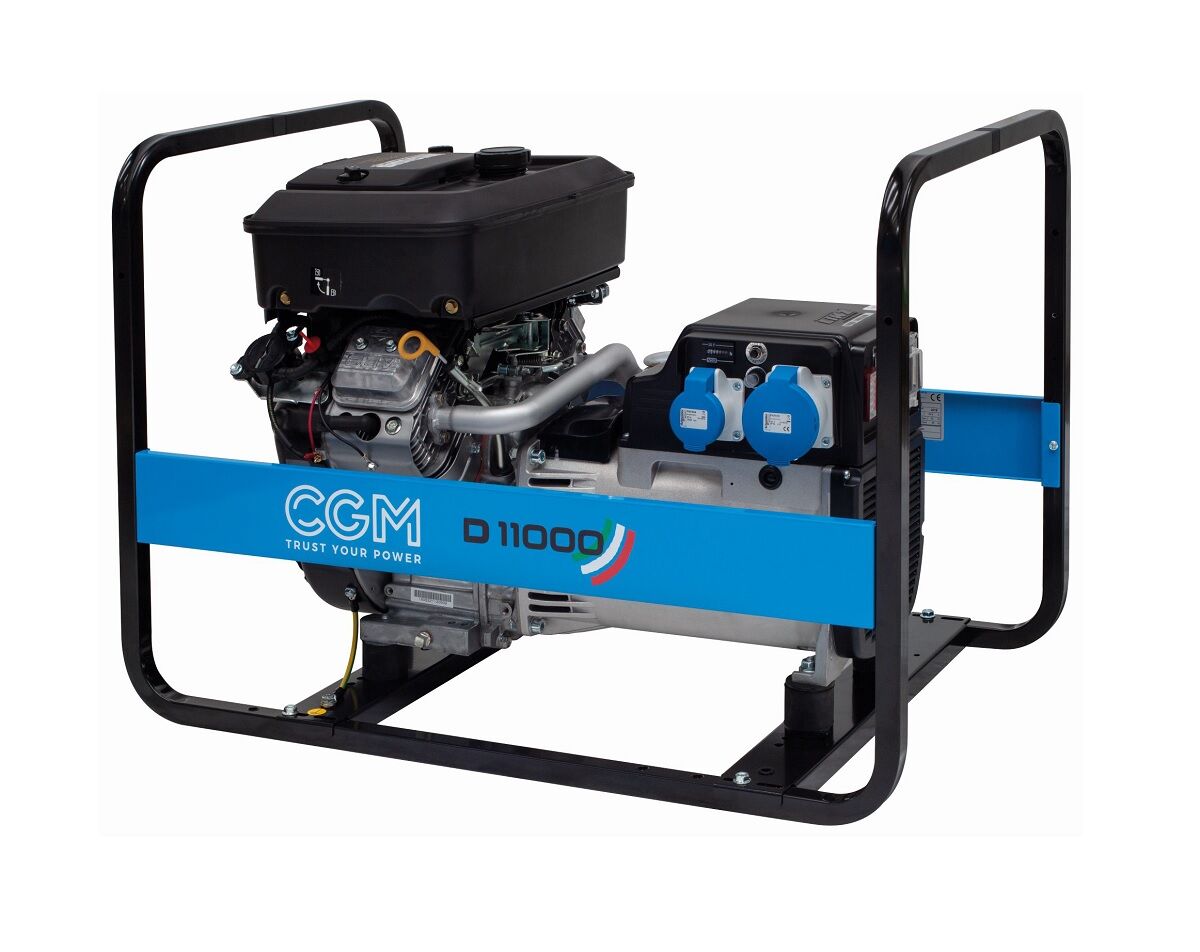

CGM D11000 Portable Diesel current generator 9,9kW, single-phase 230V with electric startering system and AVR voltage regulation
(Incl. Tax: €5,910.90)
CGM CLASSIC DIESEL series genserating sets, 3000 rpm, equipped with KOHLER diesel engines with electric starting system with key and battery. These generating sets are characterized by lower consumption and a longer life expectancy compared to the petrol powered range. 3000 rpm gensets have been designed for stand-by use only. Not recommended using for more than 6 hours continuously or more than 500 hours/year. The CLASSIC DIESEL range
represents the highest quality of diesel generators in a simple configuration with the certainty of a longer life: CGM Classic Diesel generating sets are robust and their consumption is moderate.

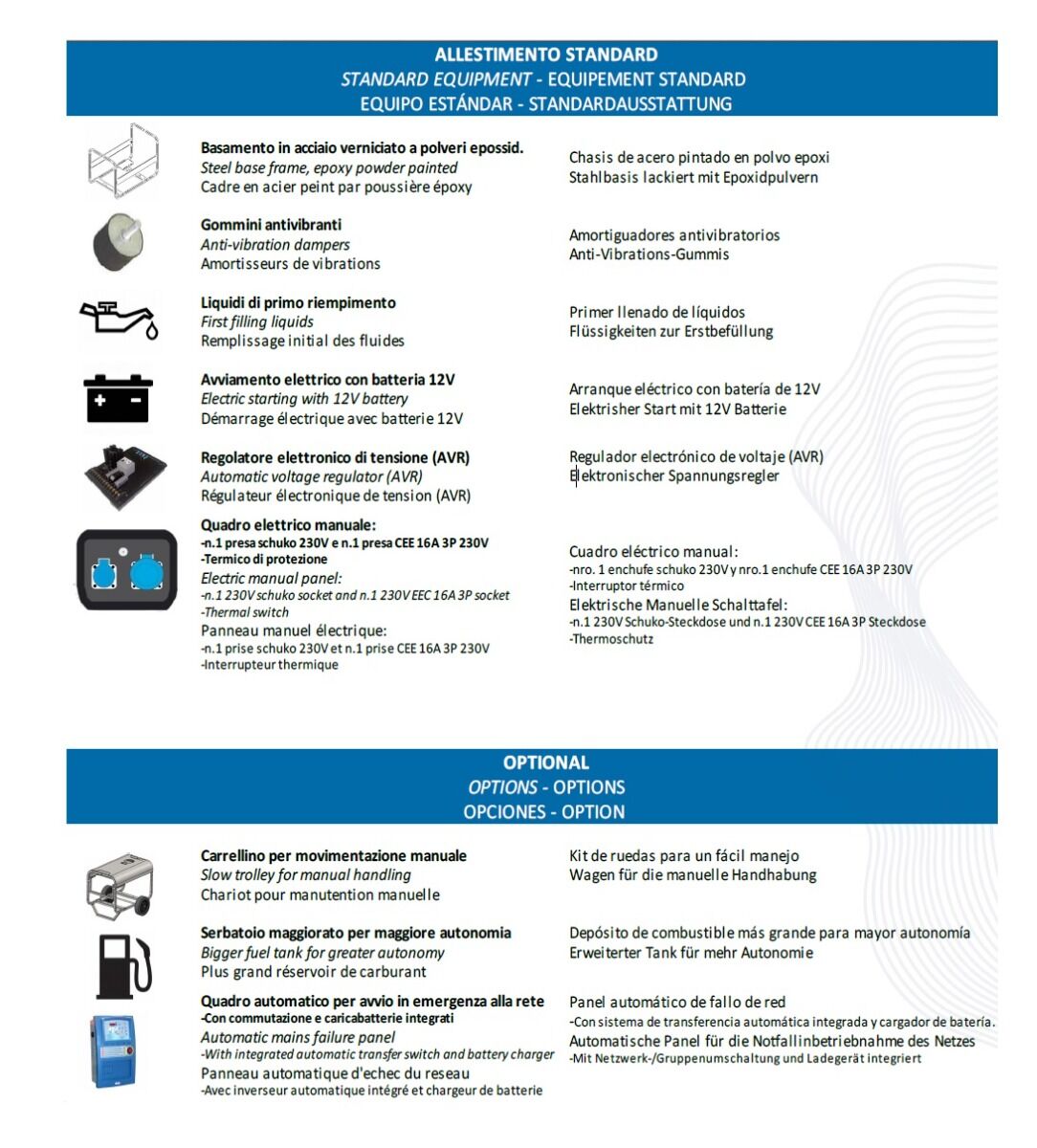

Features:
- Diesel Kohler engines;
- Italian alternator;
- Electric starting;
- Voltage stabiliser (AVR).
- 12-month warranty worldwide
- The quality of a generating set completely designed and produced in Italy
DELIVERY TIME: TO BE CONFIRMED
TECHNICAL DATA:
| Prime Power kVA | 11 |
| Prime Power kW | 9,9 |
| Stand-by power kVA | 12,1 |
| Stand-by power kW | 10,9 |
| Weight Kg | 170 |
| Dimensions mm | Length=910mm Width=580mm Height=640mm |
| Electrical system type | 1F+N ~ |
| Power factor | 0,9 ϕ |
| Voltage | 230 V |
| Frequency | 50 Hz |
| Ampere rating | 53,8 A |
| Engine | KOHLER KD425 |
| Engine emissions standards | / |
| Engine power | 14,2 (10,5) Hp (kW) |
| Rpm | 3000 |
| No. of cylinders | 2 |
| Engine starting system | Electric starter |
| Displacement | 851 cc |
| Fuel type | Diesel |
| Consumption | 2,8 lt/h @ 75% |
| Tank capacity | 4 lt |
| Autonomy | 1,4 h |
| Alternator | LINZ ELECTRIC – NSM MADE IN ITALY |
| Type | Self-excited, with brushes |
| Voltage regulation | Voltage stabiliser (AVR) |
| Voltage precision | ± 5 % |
The image is only f or demonstration purposes. All data can be found out in the original technical datasheet of the engine and the alternator.
Values shown are nominal values, they can change in every moment and without warning.
- Typology:
- Diesel generator
- Application:
- 220-240V Single-phase
- Brand:
- C.G.M Gruppi Elettrogeni srl
- Power:
- 9.9 kW
