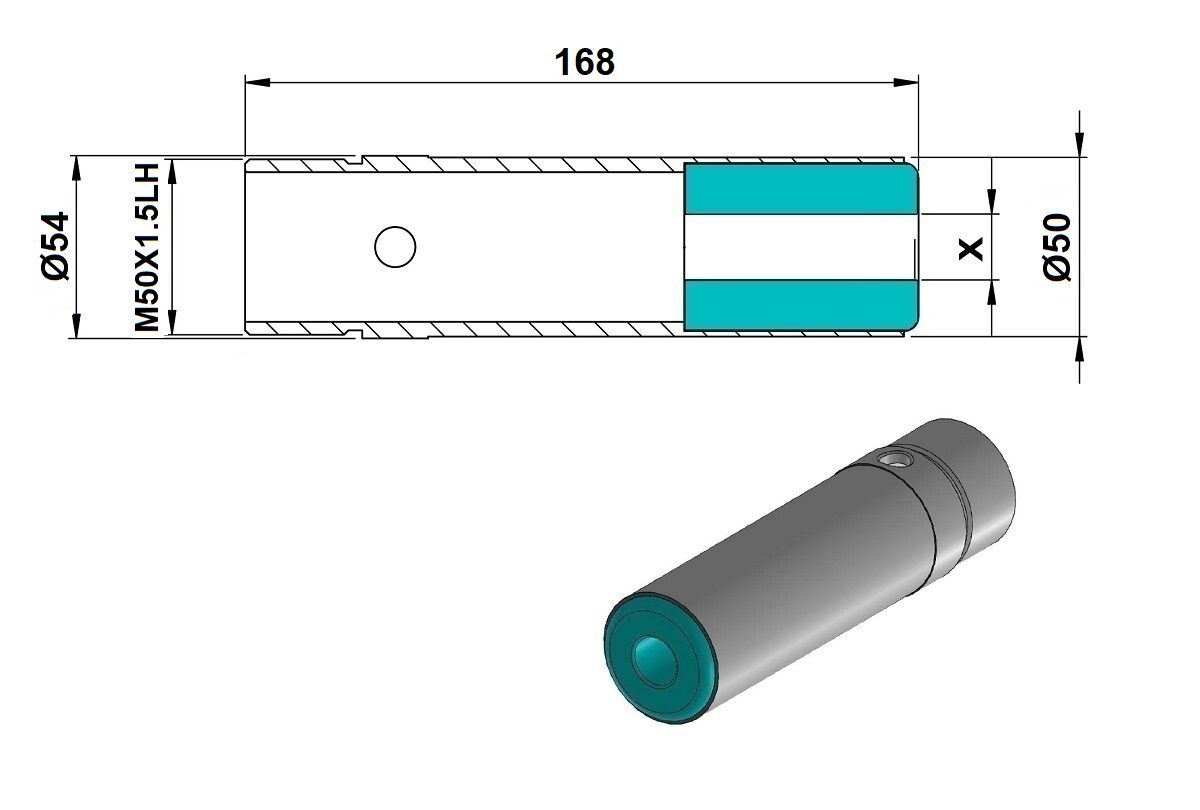

9364E Plastic bar feed fingers collet ROUND - HEXAGONAL suitable for multi spindle lathes Schuette KS42 left thread M50x1.5mm
(Incl. Tax: €140.91)
Delivery: about 1 week, with confirmation by email
For the hexagonal bars the collets will be made in the round version with the hole being made on the circumscribed theoretical diameter of the hexagon
HIGH RESISTANCE TO WEAR:
The average life is about 5/15 km of bars,depending of pressure generated on them
RESISTANCE TO CENTRIFUGAL FORCE:
The collet has a cylindrical body completely free of longitudinal cuts. This guarantees high resistance to centrifugal force (potential 4000 to 7000 RPM), and so protection from wear
RECONDITIONING THE BORE:
After the full wear of the bore, it is possible to regenerate the collet widening the hole with a drill or a tool
REDUCTION OF VIBRATIONS:
Remarkable absorption of vibrations, due to the thermoplastics characteristics
Le pinze di avanzamento barra sono compatibili con le originali.
- Brand:
- INDEX
- Application:
- Hexagonal, Round
- Typology:
- Thread outside left
- Machine Type:
- KS42
- Diameter "d1" mm:
- 50
- Dimension of thread :
- M50x1.5 LH
- Diameter "D" mm:
- 54
- Lengt "L":
- 168mm
- Code:
- 9364E
