172.300-F-CM2 Revolving tailstock with MT2 Morse taper connection and without absorber stroke, for single and multi-spindle lathes
In stock
SKU
TD-172.300-F-CM2
€223.00
(Incl. Tax: €272.06)
(Incl. Tax: €272.06)
Revolving tailstock centre with MT2 Morse taper in a no spring travel configuration, designed for stable workpiece support in between-centres turning.
Centre supplied with 60° tip
Revolving tailstock centre with MT2 Morse taper supplied in a no spring travel configuration for supporting the workpiece during between-centres turning.
The interchangeable 60° insert can be replaced when worn, helping maintain consistent accuracy and uptime in machining operations.

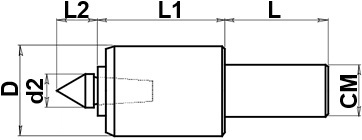

Technical Data – MT2 Rotary Tailstock (Without compression)
| Parameter | Value |
|---|---|
| Shank | Morse taper MT2 |
| Diameter (D) | 32 mm |
| Diameter (d2) | 14 mm |
| Length (L1) | 44 mm |
| Length (L) | 69 mm |
| Length (L2) | 16 mm |
- Brand:
- TADAAH
- Typology:
- Without compression
- Shank Type:
- MT2
- Diameter "d2":
- 14mm
- Diameter "D":
- 32mm
- Lengt "L":
- 69mm
- Length "L1":
- 44mm
