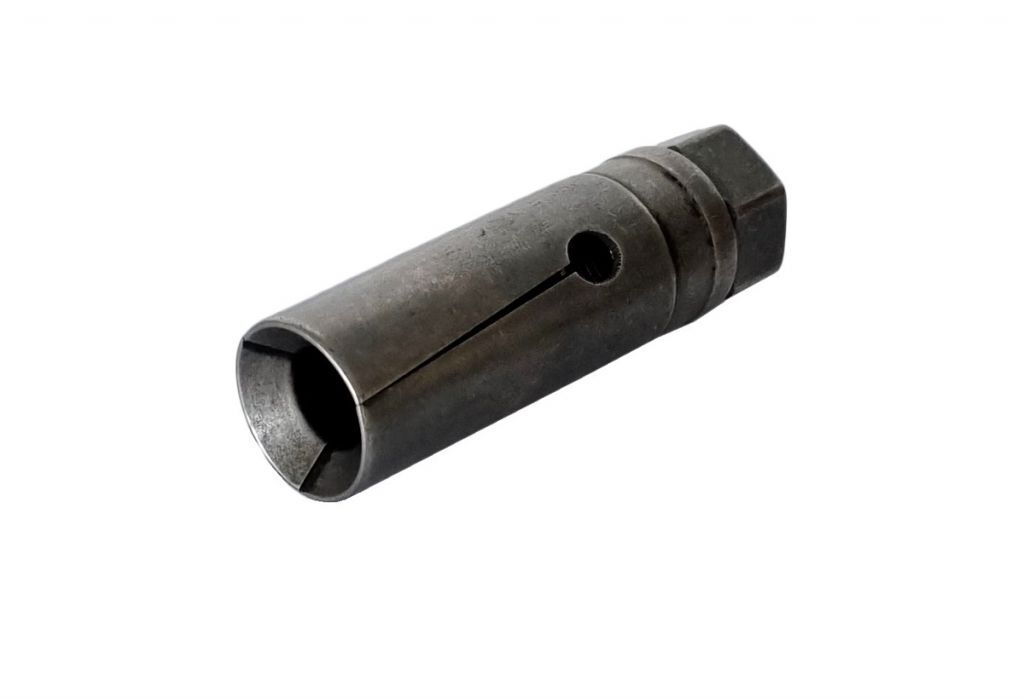

The 035.700 push collet for the Cucchi Pietro PB70-72 automatic bar feeder is a technical component designed for bar feeding on automatic lathes, CNC lathes and sliding headstock machines. It is intended for bar machining systems where feed continuity, grip stability and correct interface with the bar feeder are essential to maintain machining regularity and reduce machine downtime.

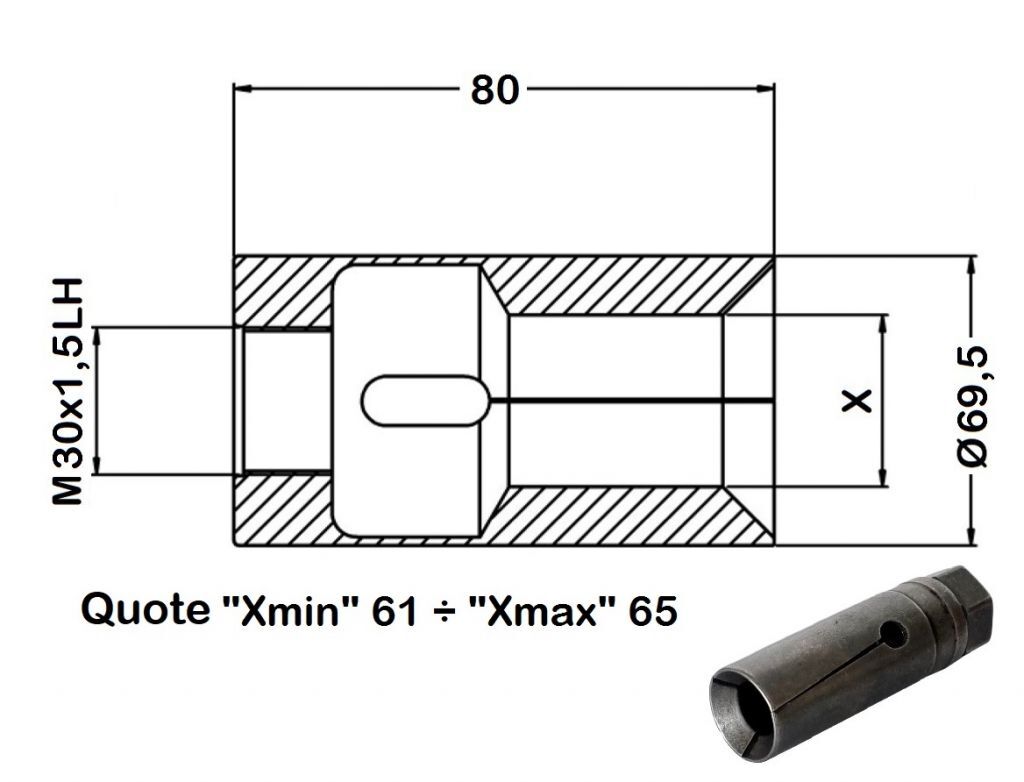

This push collet is designed for use with an M30x1.5 left-hand connection and OD= 69.5 mm. Its main function is to grip and guide the bar during the feeding movement inside the bar feeder, transferring the motion in a controlled way towards the spindle or the working area of the lathe. When correctly applied, the collet also helps manage the final bar remnant, improving order, operating safety and repeatability of the production cycle.

The component is used when a worn push collet must be replaced, when the feeder must be adapted to a new bar diameter or when correct grip on the material has to be restored. Selection must be made by checking feeder model, connection type, thread direction, outside diameter, bar diameter or profile and the condition of the feeding system. An incorrect match may cause vibration, irregular dragging, noise, abnormal wear or loss of accuracy during the feeding phase.

Push collets can be supplied for round, hexagonal or square bars. For non-round profiles, such as hexagon and square, the internal profile is ground according to the corner dimension in order to obtain a consistent contact with the actual geometry of the material. This is important because incorrect grip on the profile may generate clearance, unwanted rotation or uneven feeding, especially in repetitive high-productivity machining.

From a technical point of view, the collet must work with the lowest possible functional clearance, without excessively clamping the bar and without creating interference with the feeder. Precision should not be understood as measuring resolution, but as geometric consistency between collet, bar, connection and pushing system. For this reason, it is advisable to periodically check wear, elasticity, integrity of the slots, seat cleanliness, possible deformation and the presence of burrs or residues that could alter the grip.

During installation, check that the M30x1.5 left-hand thread is compatible with the Cucchi Pietro PB70-72 feeder and that tightening is performed without forcing. Before starting production, it is advisable to check the alignment between bar feeder, bar channel, spindle and machine axis, because shape errors, geometry errors, height differences or centering deviations can affect feeding quality. Correct alignment reduces friction, vibration and stress on the material, improving cycle continuity.

This product is intended for machining workshops, turning departments, machine tool builders and maintenance technicians, production technicians, process engineers and companies using automatic bar feeders. It is particularly useful for preventive and corrective maintenance, when restoring feeder efficiency, optimizing the changeover from one diameter to another or reducing issues related to slipping, vibration, transmission clearance and irregular feeding.

Tadaah supports customers in choosing the correct push collet by evaluating connection type, dimensions, bar profile and feeder model. For reliable selection, it is recommended to provide the machine type, feeder model, material diameter or profile, corner dimension for hexagonal or square bars, thread direction and the main dimensions of the existing collet.
