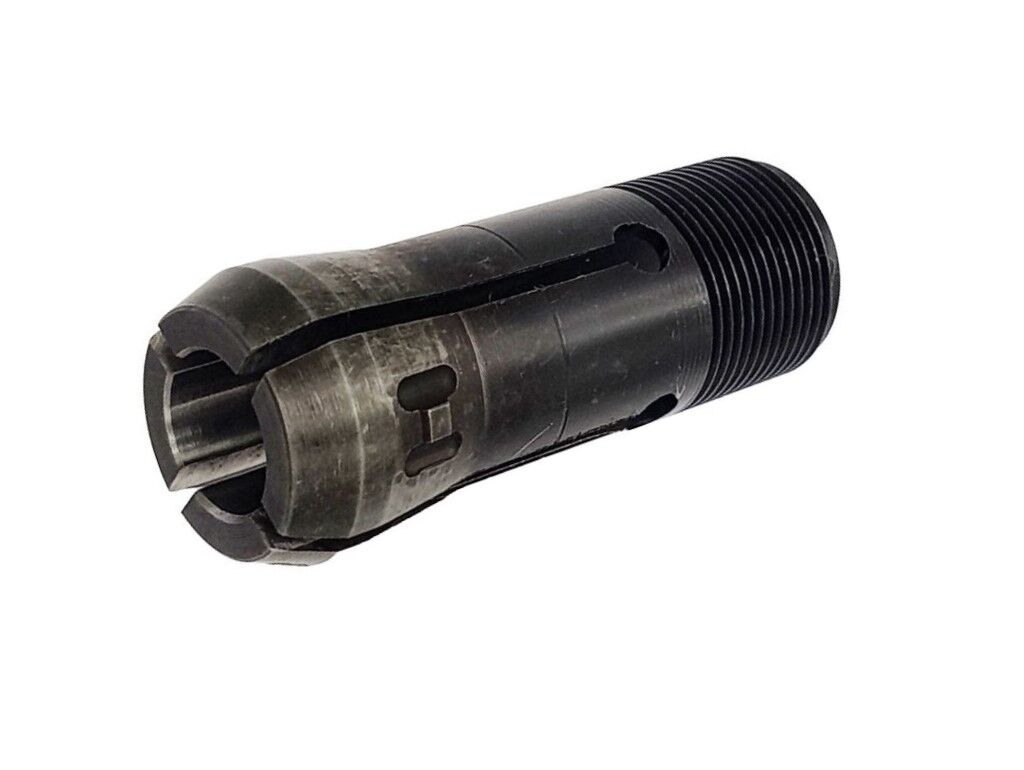

013.917 RS ROUND quick change insert for feed collet 9268E - 9265E suitable for Gildemeister DMG-Mori GM16AC - Tornos SAS 16
In stock
SKU
013.917-D
€40.00
(Incl. Tax: €48.80)
(Incl. Tax: €48.80)
Insert for feed collet with adjustable sliding load.
Characteristics:
Machine: Gildemeister DMG-Mori - Tornos
Model: GM16 - SAS16
Assembly group: bar pusher collet
Insert mounting body: 9268E (GM16AC) - 9265E (SAS16)
Interchangeability: the assembled body and insert are perfectly interchangeable with the 9268E - 9265E collet

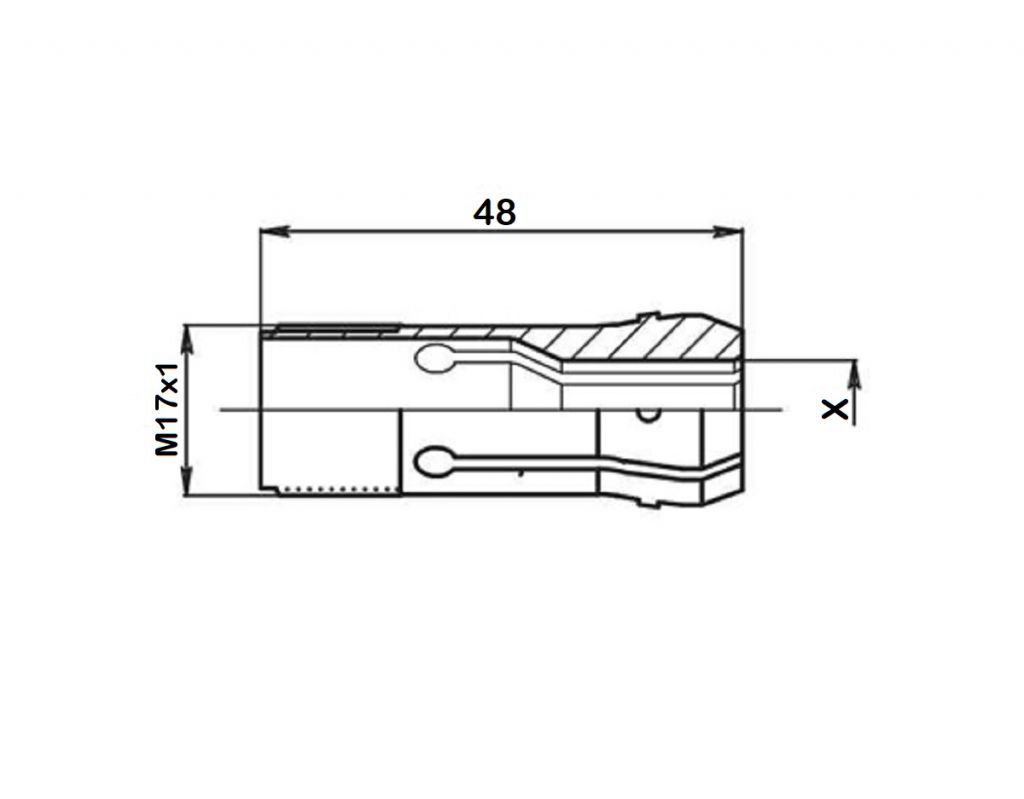

Use: Once assembled to the body, adjust the sliding load according to the attached diagram
- Brand:
- GILDEMEISTER - DMG MORI, TORNOS
- Application:
- Insert round
- Typology:
- Thread outside right
- Machine Type:
- GM16AC, SAS16
- Dimension of thread :
- MF17x1
- Lengt "L":
- 48mm
