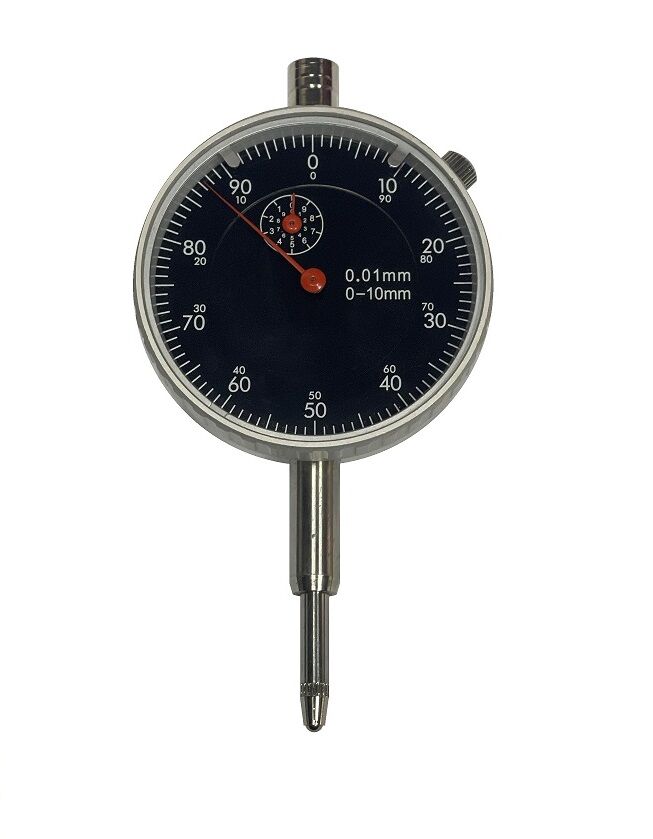

The Black Edition analog dial indicator with a 0–10 mm measuring range is designed for comparative dimensional inspection in mechanical applications. The measuring travel is 0 to 10 mm with 0.01 mm resolution, enabling centesimal deviation checks during setup, verification and adjustment operations.

Reading is performed on a 58 mm analog dial. The Black Edition dial face provides high contrast to support quick value interpretation, including in workshop environments with variable lighting. The graduated scale allows immediate monitoring of deviation from a reference value.

Operation is based on axial movement of the measuring spindle, which transfers displacement to the internal mechanical transmission and converts it into pointer rotation on the dial. This enables monitoring of dimensional variation during inspection of machined parts.

The instrument is intended for use with magnetic bases, measuring stands or inspection fixtures, and for integration into machine tool checks. Typical applications include flatness verification, runout monitoring, parallelism checks, alignment control and general comparative inspection in production and metrology environments.

Use is limited to the stated 0–10 mm measuring range; measurements beyond this travel are outside the declared specifications.
