RUPAC 1502256 Baker K14 Micromet PLUS Dial Gauge DIN 878 – 12 mm range, 0.002 mm resolution
(Incl. Tax: €300.12)
Baker K14 Micromet PLUS dial gauge ensures long-term accuracy and reliability thanks to its all-metal movement and rigid brass body construction. Manufactured in accordance with DIN 878, it offers a 12 mm measuring range with 0.002 mm resolution. Supplied with carbide contact point, slotted back, protective case and inspection certificate.
The Baker K14 Micromet PLUS dial gauge is designed for high-precision dimensional inspection in workshops, quality control departments and metrology laboratories. The Micromet PLUS series is engineered with a fully metallic internal mechanism to guarantee smooth spindle movement, stable readings and excellent repeatability over time.
The robust brass housing provides superior structural rigidity, reducing deformation under continuous use and maintaining consistent measurement performance even in demanding industrial environments. The carbide contact point enhances wear resistance during repetitive measurements on metallic surfaces.
With a 12 mm measuring range and a fine 0.002 mm resolution, the K14 model is ideal for comparative measurements, checking flatness, concentricity, runout and dimensional deviations against nominal values.
Supplied complete with:
-
Protective storage case
-
Slotted back plate
-
Inspection certificate
Standard: DIN 878
Bezel diameter: 57.4 mm

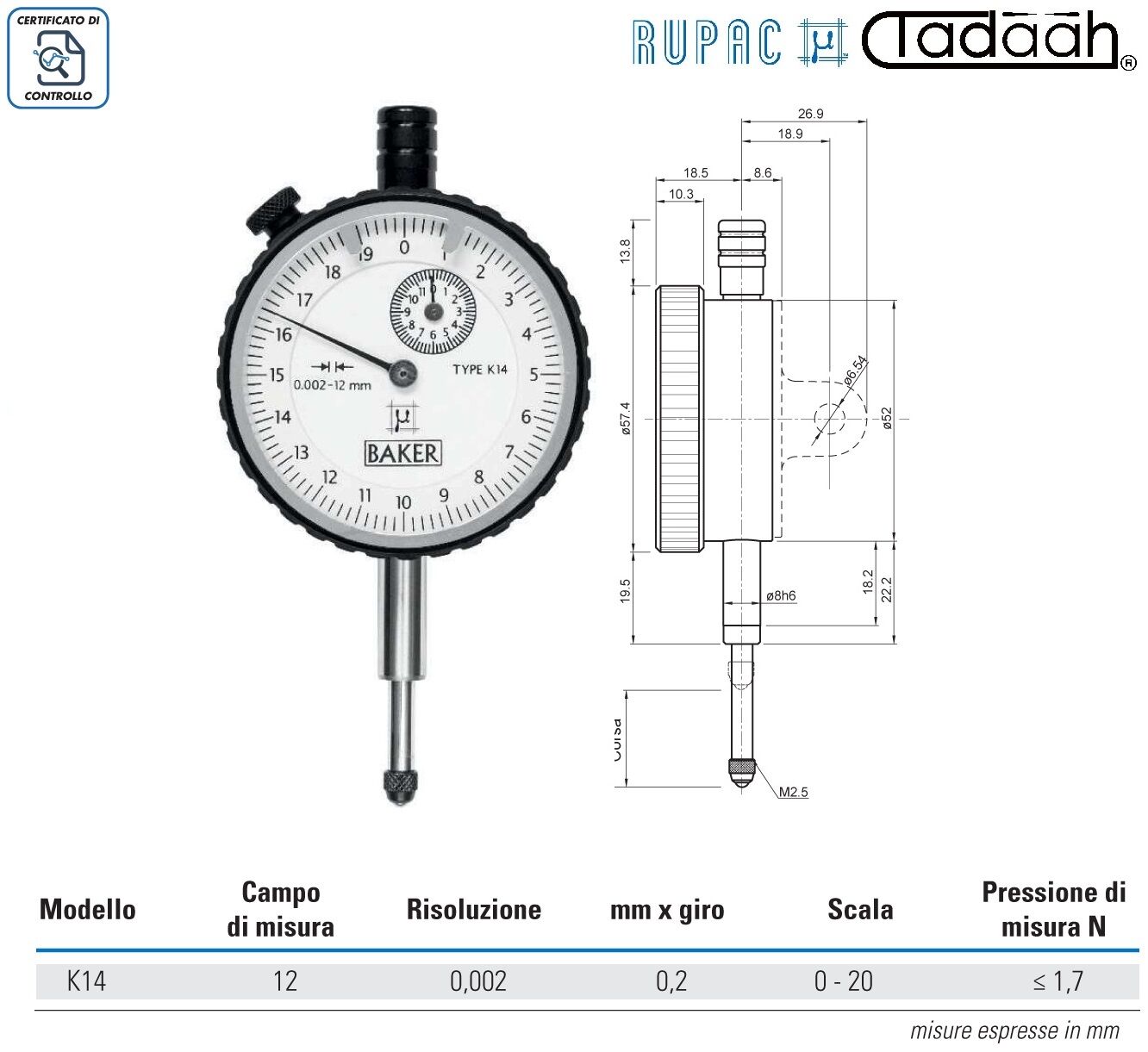

Technical Data – Baker K14 Micromet PLUS
| Code | 1502256 |
| Model | K14 |
| Measuring range | 12 mm |
| Resolution | 0.002 mm |
| mm per revolution | 0.2 mm |
| Scale | 0 – 20 |
| Measuring force | ≤ 1.7 N |
| Standard | DIN 878 |
| Bezel diameter | 57.4 mm |
- Brand:
- RUPAC
- Typology:
- Analog
- Measurements range:
- 0 - 12 mm
- Resolution (mm):
- 0.002 mm
