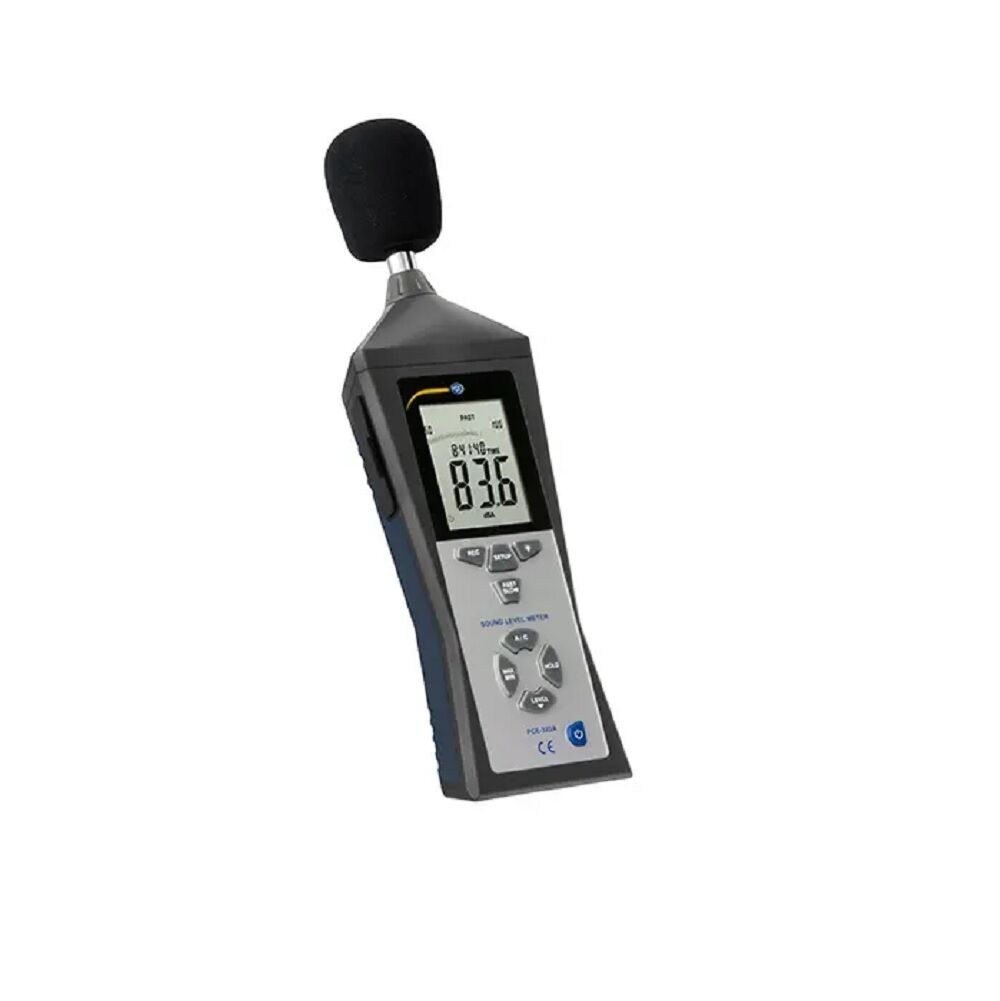

PCE Instruments PCE-322A Sound level meter with datalogger, USB interface, memory for 32,700 values and measuring range 30-130 dB
In stock
SKU
PCE-322A
€190.99
(Incl. Tax: €233.01)
(Incl. Tax: €233.01)
The professional noise analyser is versatile for industry, healthcare, security and noisy environments. With 32,700 memory values, it is suitable for extended recordings. Data can be transferred via USB to PC for detailed analysis using Windows software in English, which supports graphical, numerical and peak peak display. The zoom function enables in-depth analysis, and the software allows data to be exported to external programs such as MS Excel. It also includes a built-in analogue output for further applications.
Features:
- Measurement range: 30 ... 130 dB
- Resolution: 0.1 dB
- USB interface for data transfer
- Memory for 32,700 values
- FAST and SLOW evaluation
- Date and time
- Durable ABS plastic structure
- Large LCD display
- Resolution: 0.1 dB
- USB interface for data transfer
- Memory for 32,700 values
- FAST and SLOW evaluation
- Date and time
- Durable ABS plastic structure
- Large LCD display
Technical Data:
| Measurement range | Low 30 ... 80 dB Medium 50 ... 100 dB High 80 ... 130 dB Auto 30 ... 130 dB |
| Dynamic range | 50 dB |
| Display | 4-digit LCD |
| Resolution | 0.1 dB |
| Accuracy | ±1.4 dB |
| Display update | 2 times per second |
| Frequencies | 31.5 Hz ... 8 kHz |
| Data logger | 32,700 points |
| Frequency evaluation | A, C |
| Time evaluation | Fast: 125 ms Slow: 1 s |
| Microphone | Electret condenser |
| Functions | MIN, MAX, HOLD, ALARM |
| Analog output | AC/DC Headphones/earphones |
| Data interface | USB |
| Automatic shutdown | After approx. 15 minutes of inactivity |
| Operating conditions | 0 ...+40 °C, < 90% RH |
| Storage conditions | -10 ...+60 °C, 10 ... 75% RH |
| Power supply | 1 x 9V battery (approx. 30h continuous use) or via power adapter for extended measurements |
| Dimensions | 280 x 95 x 45 mm |
| Weight | Approx. 350 g |
| Standards | IEC 61672-1 (Class II) |
Shipping Contents:
1 x Noise Analyzer PCE-322A
1 x Wind noise suppressor
1 x USB cable
1 x Analog output
1 x Calibration screwdriver
1 x Battery
1 x Power adapter
1 x Carrying case
Windows-compatible software (available for download)
Operating instructions (available for download)
1 x Wind noise suppressor
1 x USB cable
1 x Analog output
1 x Calibration screwdriver
1 x Battery
1 x Power adapter
1 x Carrying case
Windows-compatible software (available for download)
Operating instructions (available for download)
- EAN Code:
- 4250348713728
- Typology:
- Acoustic Assessment
- Brand:
- PCE INSTRUMENTS
- Resolution (mm):
- 0.1 dB
- Measurements range:
- 30 - 130 dB
