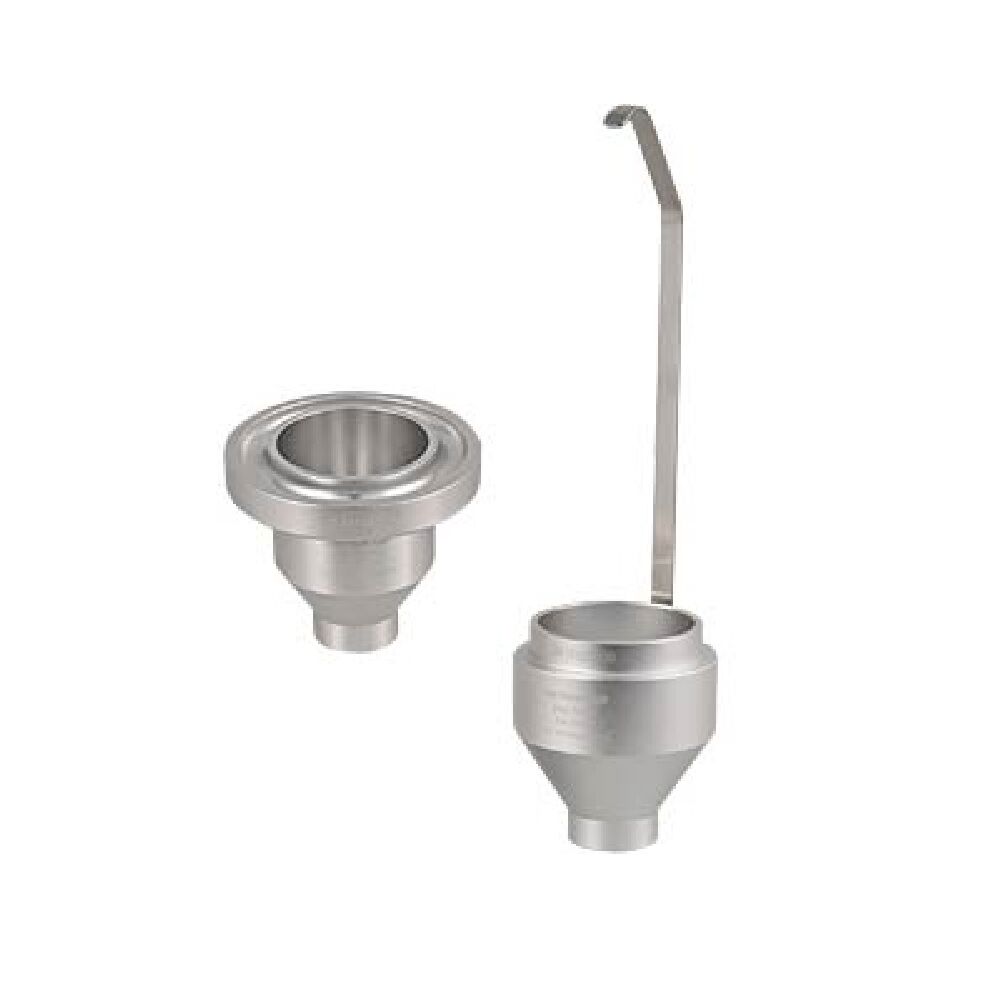

PCE Instruments PCE-127/4P Immersion Flow Cup Viscometer for measuring viscosity
In stock
SKU
PCE-127/4P
€239.49
(Incl. Tax: €292.18)
(Incl. Tax: €292.18)
Viscometer for determining the hardness of liquids, especially those with low viscosity. It is ideal for measuring Newtonian liquids with high precision.
- Material anodized aluminum
- Factory calibration certificate included
- With overflow channel
- Meets international standards
Viscosity is determined by the flow rate and the time it takes for the liquid to pass through the viscometer nozzle. Stopping the time once all the liquid has flowed out is essential. After measurement, clean the viscometer thoroughly to avoid residue that could influence subsequent results. Avoid using sharp or pointed instruments to prevent scratches and abrasions.
| Technical Specifications | |
| Capacity | 100 ml |
| Diameter nozzle | 4 mm (± 0.02 mm) |
| Standard | DIN 53211 |
| Flow time | 25-150 |
| Dynamic viscosity (mPA * s) | 96.2-680 |
| Material | Cup: anodised aluminium / Nozzle: stainless steel |
| Weight | 215 g |
| Dimensions | Ø interior 50 millimetri Ø exterior 65 millimetri Height 78 millimetri Handle height 170 mm |
Contenuto della spedizione:
1 x PCE-127/4 DIN Immersion Flow Cup Viscometer
1 x Glass plate
1 x Factory certificate
1 x Instruction manual
1 x Glass plate
1 x Factory certificate
1 x Instruction manual
- Typology:
- Viscometer
- Brand:
- PCE INSTRUMENTS
