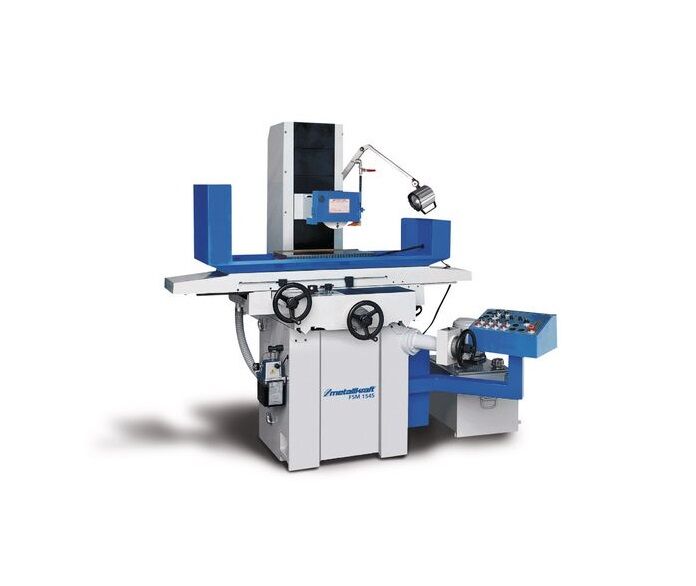

METALLKRAFT 3931545 Precision surface grinding machine With NC-controlled vertical feed, Surface grinding table 150x450 mm - Model FSM 1545
In stock
SKU
MET3931545
Special Price
€33,127.90
Regular Price
€38,974.00
(Incl. Tax: €40,416.04)
(Incl. Tax: €40,416.04)
· Maximum stiffness and stability thanks to tension-free re-heated and hardened cast iron construction
· High-quality spindle with precision cone roller bearings (circular accuracy 2 microns)
· Electromagnetic clamping plate for fixing the workpiece including automatic demagnetization function
· Automatic central lubrication for all slides and spindles
· Hand scraped and Turcite-B-coated V-flat guides guarantee extremely uniform, low-friction movement and highest precision
· Halogen working light dustproof, completely contact-proof and protected against jet water according to IP65
· Second grinding wheel flange included in delivery
Delivery date to be confirmed by e-mail.
· High-quality spindle with precision cone roller bearings (circular accuracy 2 microns)
· Electromagnetic clamping plate for fixing the workpiece including automatic demagnetization function
· Automatic central lubrication for all slides and spindles
· Hand scraped and Turcite-B-coated V-flat guides guarantee extremely uniform, low-friction movement and highest precision
· Halogen working light dustproof, completely contact-proof and protected against jet water according to IP65
· Second grinding wheel flange included in delivery
Delivery date to be confirmed by e-mail.
DATI TECNICI:
Model FSM 1545
Useful table dimensions mm: 150x450
Max. distance between spindle and table mm: 450
Table feed m/min: 5-25
Max. permissible load kg: 110
Spindle speed rpm: 2900
Grinding wheel size mm: 180x13x31,7
Grinding wheel motor power kW: 1.5
Hydraulic motor power kW: 0.75
Electrical connection: 400V/50 Hz
Dimensions mm: 1,900x1,300x1,700
Weight kg: 900
DOTAZIONE DI SERIE:
· Grinding wheel flange
· Grinding wheel
· Balancing mandrour
· Operating tool
· Halogen working light according to IP65
Any optional accessories in the photos are on request. Images are purely indicative.
The above data are not binding and may be changed at the manufacturer's discretion.
- Brand:
- METALLKRAFT
- EAN Code:
- 8032819408496
- Typology:
- Grinding machine
