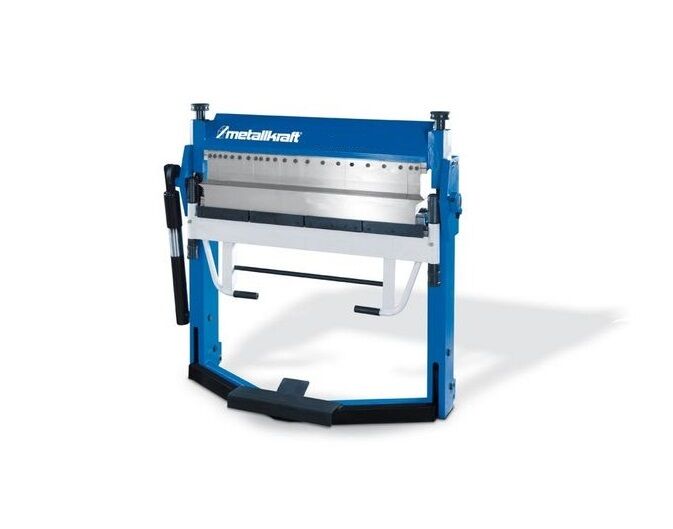

METALLKRAFT 3772129 Manual swing bending machine for sheet metal curving with workpiece clamp by foot pedal, working width 1520mm, sheet thickness 1.5mm - Model FSBM FSBM 1520-15 E
In stock
SKU
MET3772129
Special Price
€4,331.36
Regular Price
€4,922.00
(Incl. Tax: €5,284.26)
(Incl. Tax: €5,284.26)
· The workpiece clamping by means of foot pedal thereby both hands remain free for the material supply
· The powerful auxiliary cylinder facilitates bending
· Next passage between top and bottom cheek of up to 25 mm
· Self-lubricating plain bearings
· Clamping pressure of the upper beam via non-slip thumbscrews easily adjustable
· Adjustment of material thickness by means of knurled screw
· Adjustable stop for bending angle
· The powerful auxiliary cylinder facilitates bending
· Next passage between top and bottom cheek of up to 25 mm
· Self-lubricating plain bearings
· Clamping pressure of the upper beam via non-slip thumbscrews easily adjustable
· Adjustment of material thickness by means of knurled screw
· Adjustable stop for bending angle
· Built in accordance with EC regulations.
TECHNICAL DATA:
Working width: Max. 1520 mm
Sheet thickness Max. 1.5 mm
Bending angle: Max. 135°
Segmentation: 25-30-35-40-45-50-75-100-150-200-250-250-270
Dimensions: 1.850x770x1.130 mm
Weight: 415 kg
** Performance data refer to materials with a mechanical strength of 400 N/mm²; materials with mechanical strengths above 400 N/mm² bending is with factor 0.5 to 0.75; aluminium bending: factor 1.2. Hardened segments are required for bending materials with mechanical strengths greater than 400 N/mm².
The above data are not binding and may be changed at the manufacturer's discretion.
- Brand:
- METALLKRAFT
- Application:
- Manual
- EAN Code:
- 4036351042624
- Typology:
- Bender machine
