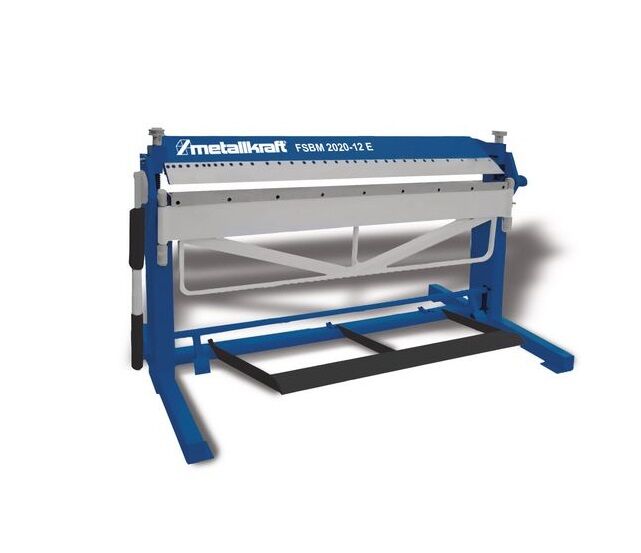

METALLKRAFT 3772130 Manual swing bending machine for sheet metal curving with workpiece clamp by foot pedal, working width 2020mm, sheet thickness 1.2mm - Model FSBM 2020-12 E
In stock
SKU
MET3772130
Special Price
€6,816.48
Regular Price
€7,746.00
(Incl. Tax: €8,316.11)
(Incl. Tax: €8,316.11)
· The workpiece clamping by means of foot pedal thereby both hands remain free for the material supply
· The powerful auxiliary cylinder facilitates bending
· Next passage between top and bottom cheek of up to 25 mm
· Self-lubricating plain bearings
· Clamping pressure of the upper beam via non-slip thumbscrews easily adjustable
· Adjustment of material thickness by means of knurled screw
· Adjustable stop for bending angle
· The powerful auxiliary cylinder facilitates bending
· Next passage between top and bottom cheek of up to 25 mm
· Self-lubricating plain bearings
· Clamping pressure of the upper beam via non-slip thumbscrews easily adjustable
· Adjustment of material thickness by means of knurled screw
· Adjustable stop for bending angle
· Built in accordance with EC regulations.
TECHNICAL DATA:
Working width: Max. 2020 mm
Sheet thickness Max. 1.2 mm
Bending angle: Max. 135°
Segmentation: 25-30-35-40-45-50-75-100-150-200-250-250-270-500
Dimensions: 2.290x820x1.180 mm
Weight: 540 kg
** Performance data refer to materials with a mechanical strength of 400 N/mm²; materials with mechanical strengths above 400 N/mm² bending is with factor 0.5 to 0.75; aluminium bending: factor 1.2. Hardened segments are required for bending materials with mechanical strengths greater than 400 N/mm².
The above data are not binding and may be changed at the manufacturer's discretion.
- Brand:
- METALLKRAFT
- Application:
- Manual
- EAN Code:
- 8032819342714
- Typology:
- Bender machine
