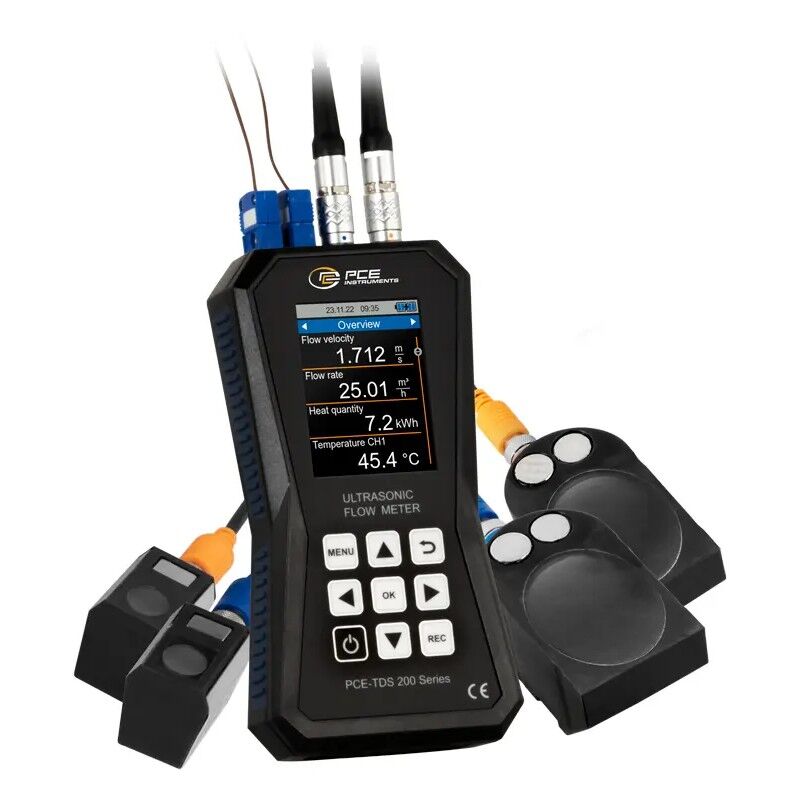

PCE Instruments PCE-TDS 200+SL Ultrasonic flowmeter for measuring pipe DN less than 50, accuracy ±1.5%, measurement range of ±32 m/s
(Incl. Tax: €4,378.46)
The PCE-TDS 200+SL is an ultrasonic flow meter designed for measuring flow rates in pipes with a diameter of less than 50 mm. It boasts a measurement accuracy of ±1.5% and operates within a flow range of ±32 m/s. This device is ideal for various applications where precise flow measurement is required.
This ultrasonic flow meter provides an advanced solution for precise flow rate and velocity measurements across a wide range of ±32 m/s, suitable for any type of substance. With exceptional reproducibility (±0.5% of measured value) and guaranteed accuracy (±1.5% for pipes ≥50 DN, ±3.5% for DN <50), the device stands out for reliability in industrial, hydraulic and heating applications.
Technical specifications:
| Flow measurement | |
| Measuring range | ±32 m/s |
| Accuracy | 0,001 m/s DN ≥50 mm: ±1.5 % rdg. for velocities > 0.3 m/s DN <50 mm: ±3.5 % rdg. for velocities > 0.3 m/s |
| Reproducibility | ±0.5 % of measured value |
| PCE-TDS 200 S SENSOR | Sensor pair |
| Pipe diameter | DN 15 - 100 / 20 - 108 mm |
| Temperature resistance | -30 - 160 °C |
| Dimension | 45 x 30 x 30 mm |
| Measuring method | Z, V, N, W |
| Medium | - water - sea water - oil - crude oil - methanol - ethanol - diesel - petrol - petroleum - user defined (manual input of the sound velocity from the medium) |
| All liquids with an impurity | <5 % |
| Pipe material | - copper CU - steel FE - stainless steel VA - aluminium AL - brass ME - cast iron CI - iron FE - nickel NI - titanium TI - zink ZI - acrylic AC - polyethylene PE - polypropylene PP - polyvinyl chloride PVC - nylon NY - user defined (manual input of the transversal sound velocity of the pipe material) |
| Inner pipe lining | - no lining - user defined - epoxy resin - rubber - mortar - polystyrene PS - polyethylene PE - polytetrafluoroethylene PTFE - polyurethane PU - polypropylene PP - user defined (manual input of the longitudinal sound velocity of the inner lining of the pipe) |
| Measurement parameters | flow velocity, volume flow and volume |
| Units (dimensions) | mm, in |
| Units (flow velocity) | m/s, ft/s |
| Units (volume flow) | m³, l, gal, igl, mgl, cf, bal, ib, ob |
| Time specification | seconds, minutes, hours, days |
| Units (volume) | m³, l, gal, igl, mgl, cf, bal, ib, ob |
| Temperature measurement | |
| Measuring range | Accuracy |
| Type B: 600 - 1800 °C | Type B: ±(0.5 % + 3 °C) |
| Type E: -100 - +900 °C | Type E: ±(0.4 % + 1 °C) |
| Type J: -100 - 1150 °C | Type J: ±(0.4 % + 1 °C) |
| Type K: -100 - +1370 °C | Type K: ±(0.4 % + 1 °C) |
| Type N: -100 - + 1150 °C | Type N: ±(0.4 % + 1 °C) |
| Type R: 0 - 1700 °C | Type R: ±(0.5 % + 3 °C) |
| Type S: 0 - 1500 °C | Type S: ±(0.5 % + 3 °C) |
| Type T: -100 - +400 °C | Type T: ±(0.4 % + 1 °C) |
| Resolution | 0.1 °C |
| Connectable thermocouples | B, E ,J ,K ,N ,R ,S ,T |
| Measuring parameters | Flow rate, volume flow, volume, temperature, heat output and heat quantity |
| Units (temperature) | °C / °F |
| Units (heat quantity) | K, kJ, MJ, Wh, kWh, MWh, Btu, kBtu, MBtu |
| Units (heat output) | W, kW, MW, J/h, kJ/h MJ/h, Btu/h, kBtu/h, MBtu/h |
| Cost display | EUR, Pound, USD, Turkish Lira, Zloty, Yen |
| Further specifications | |
| 2.8" LCD | 2,8“ LCD |
| Menu | metrisch / imperial |
| Menu languages | German, English, French, Spanish, Italian, Dutch, Portuguese, Danish, Turkish, Polish, German, Turkish, Polish, Russian, Chinese, Japanese |
| Operating and storage conditions | Temperature: -20 - +65 °C Humidity: 10 - 95 % r. h., non-condensing |
| Data logger | 32 GB memory capacity / 10 million measuring points |
| Unterface | USB (for online measurement, readout of the internal memory and for recharging the battery) |
| Protection class | IP52 |
| Power supply Internal | Internal: LiPo battery (3.7 V, 2500 mAh) External: USB 5 VDC, 500 mA |
| Operating time | approx. 10 h |
| Dimensions | 165 x 85 x 32 mm |
| Weight | 255 g |
The unit features a 2.8" LCD display showing real-time flow, rate and volume measurements, with selectable measurement units (m³, liters, gallons, etc.). An intuitive installation menu guides users through sensor placement, graphically indicating signal quality and proper probe spacing. Available sensors accommodate both small (DN 15-100 mm) and large (DN 300-6000 mm) pipe diameters.
The 32GB internal memory stores up to 10 million data points with customizable recording intervals from 1 second to 12 hours. Data can be exported in CSV format or processed via optional software, enabling graphical analysis, PDF report generation and real-time monitoring. Advanced features include thermal energy calculation (with optional thermocouples) and customizable alarms for anomaly detection.
For traceability requirements, ISO calibration reports or ACCREDIA/LAT certification are available upon request. The USB-C interface facilitates data transfer, while the rugged design and magnetic sensors simplify installation on metal pipes. Ideal for heating systems, industrial processes and water management, this device combines precision, versatility and user-friendliness.
Features:
- Measuring range ±32 m/s
- USB-C interface for data transfer
- Optional software for analysing the measured values
- Reproducibility ±0.5 % of measured value
- Heat quantity measurement
- Data memory for 10 million measuring points
- individually adjustable alarm limits
- optionally with ISO or DAkkS calibration certificate
Delivery scope:
1 x Ultrasonic flow meter PCE-TDS 200+ SL
1 x Flow sensors PCE-TDS 200 S SENSOR (pair)
1 x Flow sensors PCE-TDS 200 L SENSOR (pair)
2 x Temperature sensor TF-RA330
2 x 5 m connection cable
2 x detachable cable ties
1 x power supply unit
1 x USB-C cable
1 x ultrasonic contact gel
1 x PCE measuring tape
1 x plastic case
1 x instruction manual
- EAN Code:
- 4250348731494
- Typology:
- Flowmeter
- Brand:
- PCE INSTRUMENTS
- Resolution (mm):
- 0.001 m/s
- Measurements range:
- ±32 m/s
