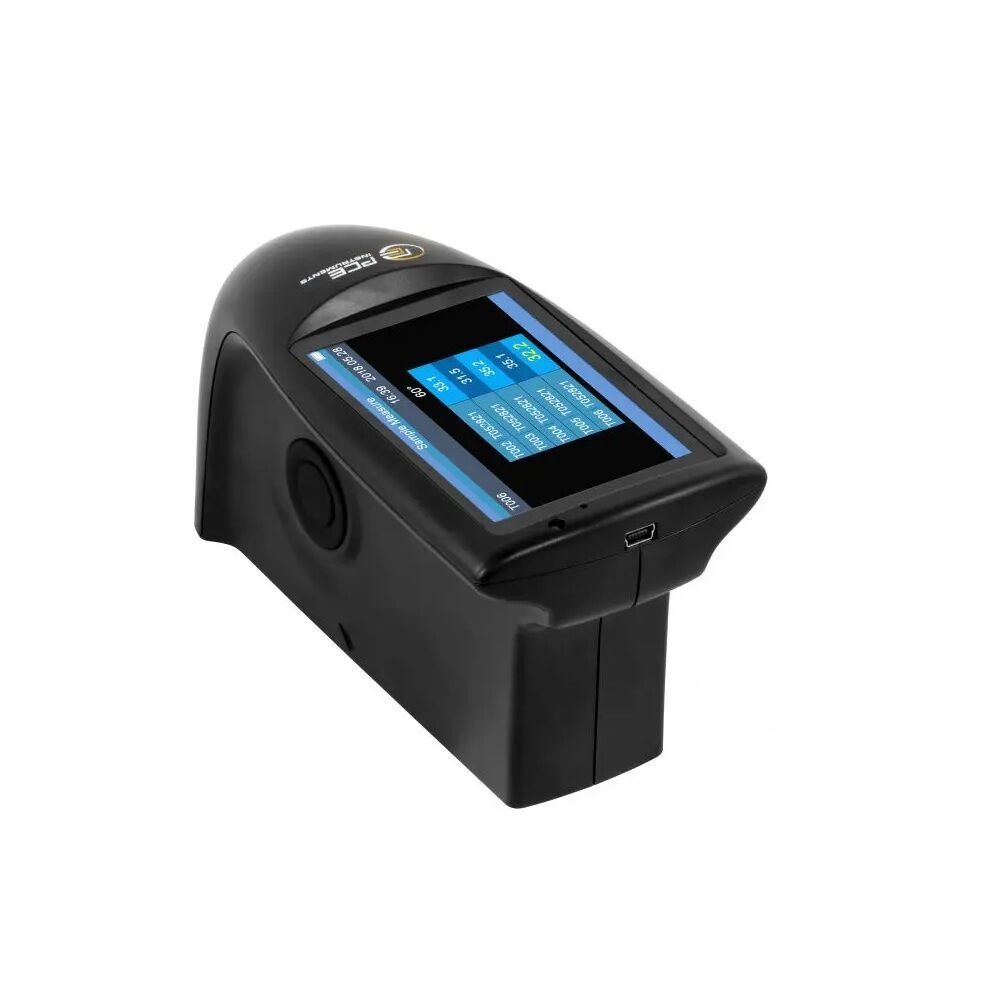

PCE Instruments PCE-PGM 60 Gloss meter with 60° reflective gloss tester and internal memory, for quality and incoming goods control
In stock
SKU
PCE-PGM-60
€625.55
(Incl. Tax: €763.17)
(Incl. Tax: €763.17)
The PCE-PGM 60 gloss meter works with a 60° geometry and is used in the surface analysis of different types of material. Gloss measurement is necessary in production, where it is important to ensure that all products have the same properties. The paint gloss tester is therefore used in quality control and incoming goods inspection to check product properties.
The software of the PCE-PGM 60 surface testing enables subsequent analysis of the results and allows them to be presented graphically. Results can be stored directly in the device's internal memory, with a memory for 1000 measurement values. This glossmeter, unlike other devices, has a fixed pre-set geometry value of 60°.
- Measuring geometry: 60°
- 3.5" TFT touchscreen display
- Internal memory with storage for up to 1000 measurement values
- Calibration plate included in the delivery contents
- Quick measuring time
- Includes PC-compatible software for detailed analysis
- 3.5" TFT touchscreen display
- Internal memory with storage for up to 1000 measurement values
- Calibration plate included in the delivery contents
- Quick measuring time
- Includes PC-compatible software for detailed analysis
|
Measurement geometry
|
60° |
| Display | 3.5" TFT touchscreen display |
| Standards | ISO 2813 GB/T 9754 ASTM D 523 ASTM D 2457 |
| Measuring surface | 9x15 mm / .4 x .6 in |
| Measuring range | 0 ... 300 GU |
| Readability | 0.1 GU |
| Repeatability | Meas. range 0 ... 10 GU: ±0.1 GU Meas. range 10 ... 100 GU: ±0.2 GU Meas. range 100 ... 300 GU: ±0.2 GU (%) |
| Reproducibility | Meas. range 0 ... 10 GU: ±0.2 GU Meas. range 10 ... 100 GU: ±0.5 GU Meas. range 100 ... 300 GU: ±0.5 GU (%) |
| Chromaticity | Fulfils CIE 1931(2°) under a CIE C – light source |
| Measurement accuracy | ±1.5 / ±1.5% |
| Measuring time | 0.5 second |
| Dimensions | 160 x 75 x 90 mm / 6.3 x 3 x 3.5 in |
| Weight | 350 g / < 1 lb |
| Menu language | English, Chinese |
| Power supply | 3200-mAh Li-ion rechargeable battery |
| Interface | USB / RS-232 |
| Measuring storage | Baseline measurement: 1000 |
| Software | Included |
| Operating temperature | 0 ... 40°C / 32 ... 104°F |
| Storage temperature | -20 ... 50°C / -4 ... 122°F |
| Relative humidity | <85% rel. humidity (non-condensing) |

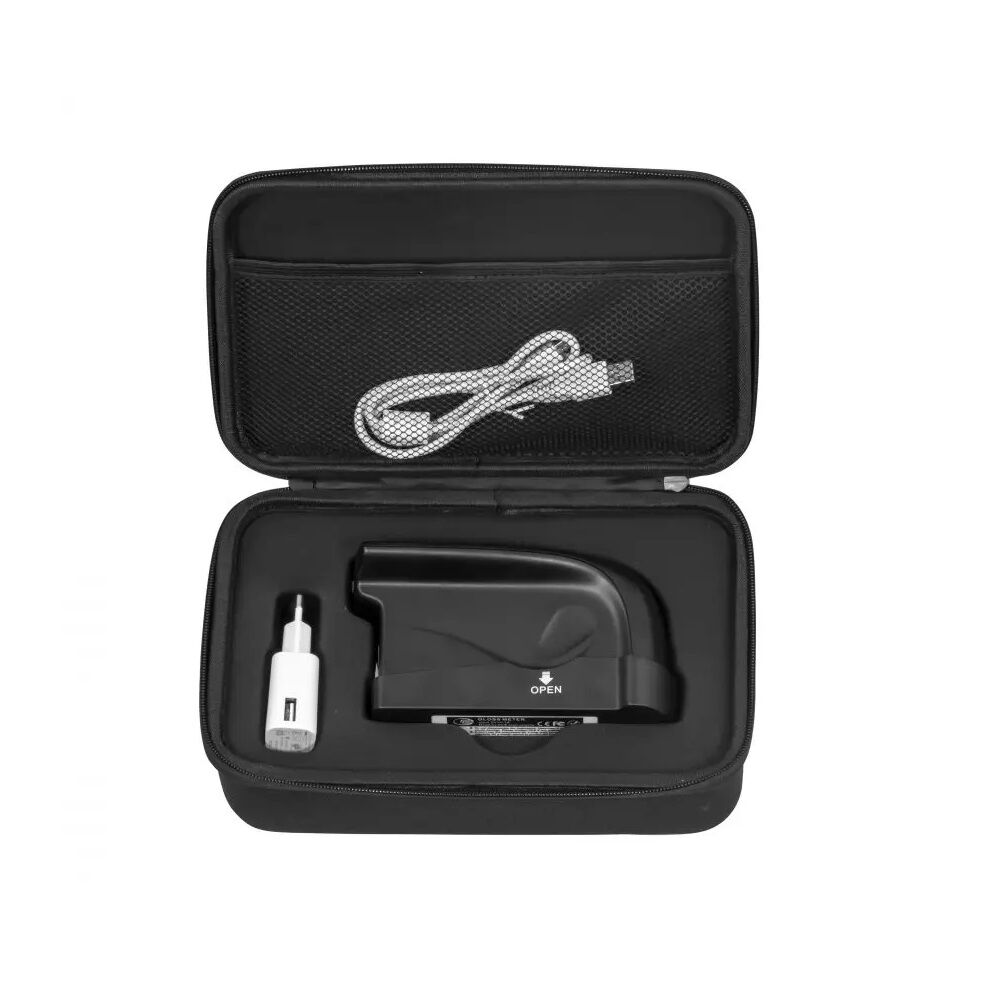

Delivery scope:
1 x PCE-PGM 60 gloss meter
1 x Rechargeable Lithium-ion battery
1 x Charging adapter
1 x USB cable
1 x Calibration plate
1 x PC-compatible software
1 x User manual
1 x Rechargeable Lithium-ion battery
1 x Charging adapter
1 x USB cable
1 x Calibration plate
1 x PC-compatible software
1 x User manual
- EAN Code:
- 4250348715074
- Typology:
- Glossmeters
- Brand:
- PCE INSTRUMENTS
- Resolution (mm):
- 0.1 GU
- Measurements range:
- 0 - 300 GU
