PCE Instruments PCE-PFG 2K Dynamometer with internal load cell, measurement range from 0 to 2000N with 0.5N resolution
(Incl. Tax: €1,396.29)

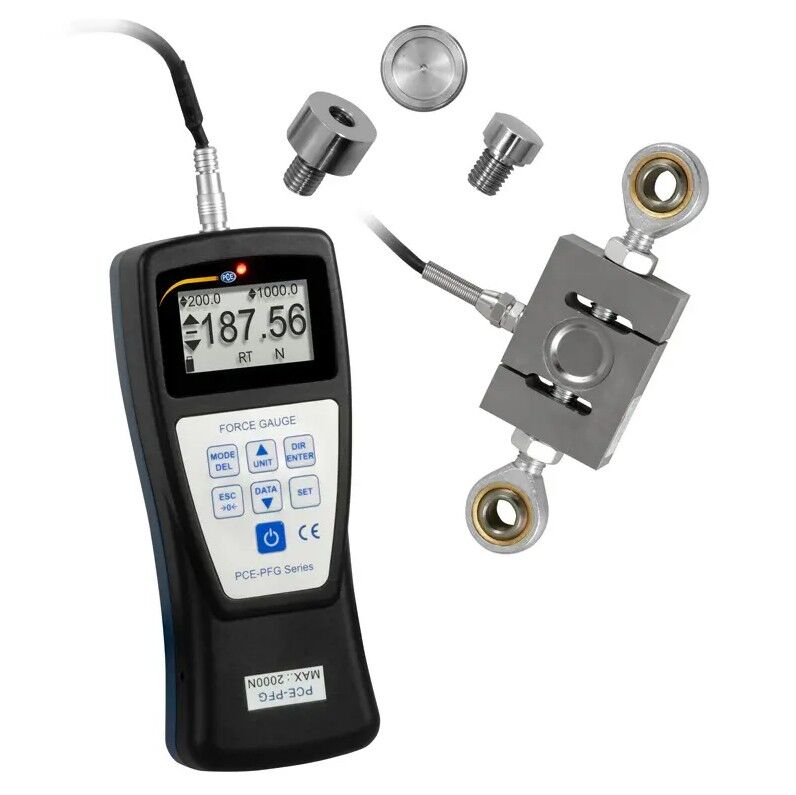

The PCE-PFG 2K is a digital dynamometer featuring an internal load cell. It has a measurement range of 0 to 2000 N and offers a resolution of 0.5 N, making it suitable for precise force measurements in various applications. Its design ensures user-friendly operation, while its robust construction adds to its durability and reliability in demanding environments.
This digital dynamometer is an intuitive and precise tool for measuring tensile and compressive forces, ideal for both portable and lab applications. Equipped with an integrated load cell and a graphical display, it offers a high sampling rate (500 Hz) and four operating modes: real-time measurement (RT), peak detection (PEAK), average value calculation (Average), and an auto-save function that stores up to 100 results. The display clearly shows real-time data along with useful statistics such as minimum, maximum, and average recorded values.
Technical specifications:
| Measuring range | 0 - 2000 N |
| Resolution | 0.5 N |
| Accuracy | ±0.3 % of the measuring range |
| Measurement units | N, kgF, lbF |
| Display | 1.8" graphic display |
| Alarm modes | Below, Inside, Outside |
| Sampling rate | 500 Hz |
| Memory | 100 measurements |
| Power supply | lithium battery 3.7 V / 1500 mAh |
| Battery life | up to 36 hours |
| Power supply / USB charging adapter | 5 V / 1 A |
| Outputs | interface: USB B Switching output / alarm modes: MD6 with 2.85 V if active |
| Protection class | IP 54 |
| Operating and storage conditions | 5 - 45 °C 35 - 65 % r.H. not condensing |

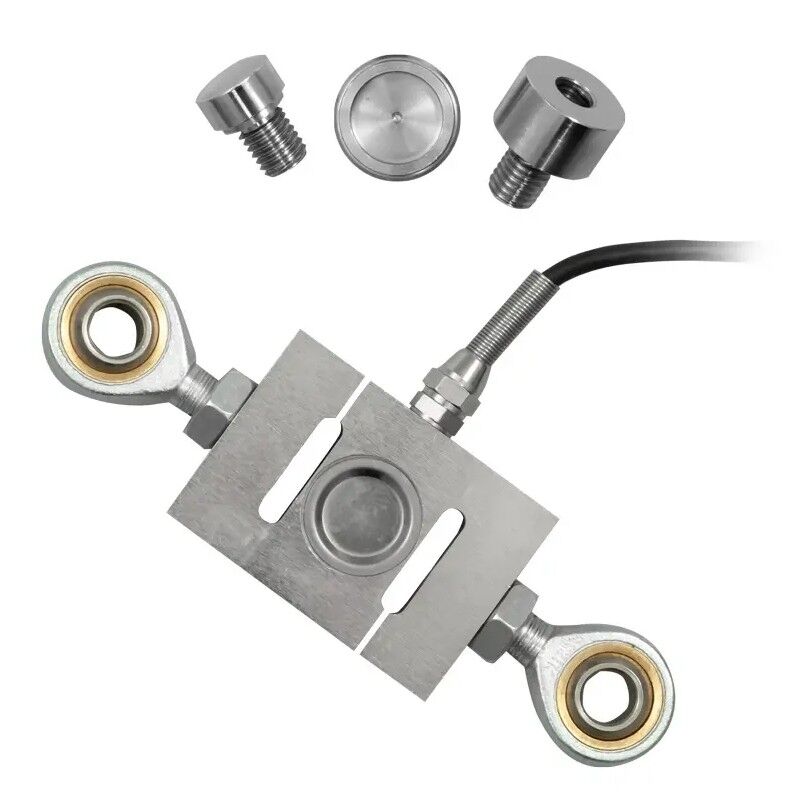

| Dimensions of load cell | L 52 mm / H 72 mm / W 19 mm / M12 thread / 490 g |
| (see technical drawing) | |
| Cable length of load cell | approx. 1.8 m |
| Dimensions handset | 189 x 707 x 34 mm |
| Weight handset | 240 g |
Thanks to its USB-B interface, data can be easily transferred to a PC for further analysis. The dynamometer also includes a handy alarm function with a multicolor LED (yellow, green, red) and a switching contact (2.85 V), which automatically signals when preset limit values (MIN/MAX) are exceeded. Designed for extended use, it delivers up to 36 hours of battery life on a single charge (with backlight off), making it perfect for intensive work sessions. Display rotation further enhances readability in any operating position.
Features:
- 4 measurement modes (real-time measurement / maximum value / average measurement / automatic memory measurement)
- Internal memory for up to 100 measured values
- Statistics evaluation (MIN / MAX / average)
- rotatable display
- Alarm function with multi-colored LED (yellow / green / red) and switching contact output 2.85 V.
- USB B interface
- Battery life up to 36 hours

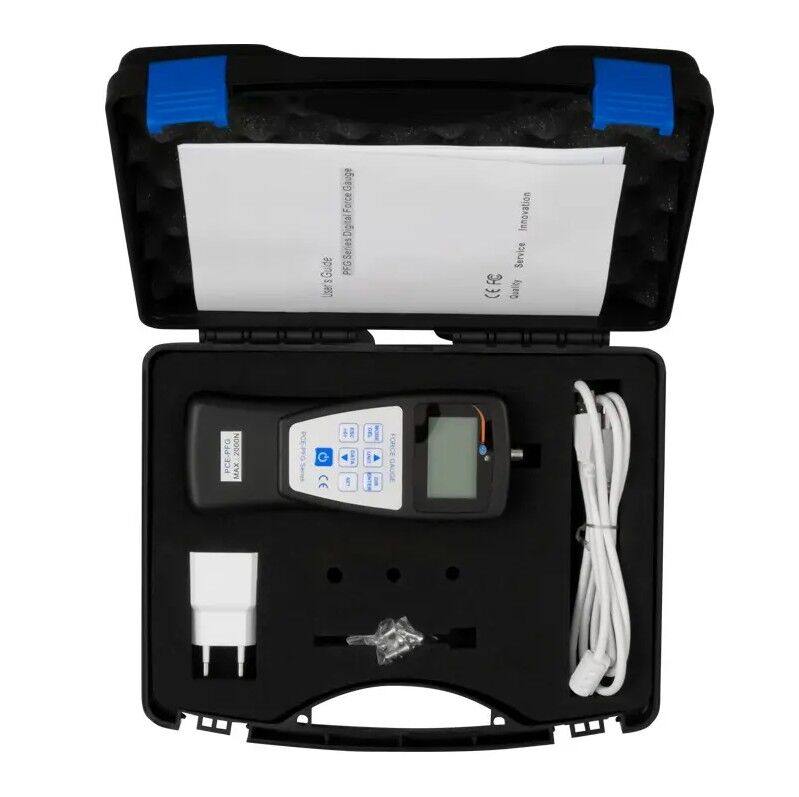

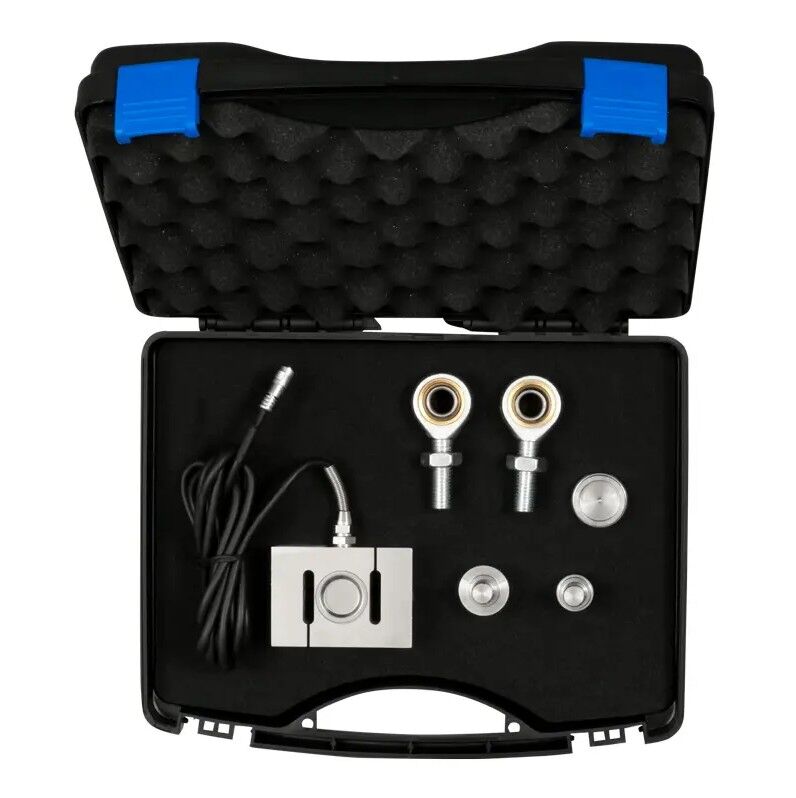

Delivery scope:
1 x Durometer PCE-PFG 2K
1 x 2000N S load cell
2 x M12 eye bolts
2 x force pads
1 x USB cable
1 x USB charger
1 x instruction manual
1 x plastic carrying case
- EAN Code:
- 4250348721556
- Typology:
- Dynamometer
- Brand:
- PCE INSTRUMENTS
- Resolution (mm):
- 0.05N
- Measurements range:
- 0 - 2000N
