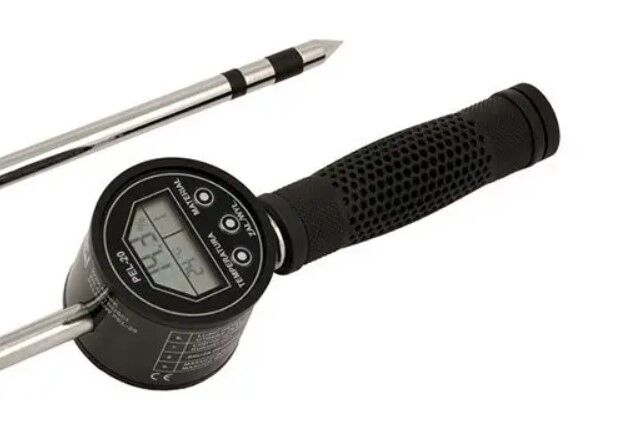

PCE Instruments PCE-PEL 20 Pellet moisture meter with 1000 mm probe, simple and quick measurement, ideal for biomass power plants
In stock
SKU
PCE-PEL-20
€798.21
(Incl. Tax: €973.82)
(Incl. Tax: €973.82)
The pellet moisture meter is a highly specialized instrument, designed in collaboration with biomass power plant experts. With its measurement range between 10% and 20% and a resolution of 0.1%, it provides precise readings essential for evaluating the calorific value of pellets. Equipped with a 1000 mm probe, simply insert it into the pellet pile to perform quick and easy measurements. The device uses a resistive sensor to calculate moisture through stored characteristic curves. The measurement is taken at the tip of the probe, and it is recommended to take multiple readings for a comprehensive understanding. Featuring an LCD display and battery power, the meter is practical and ideal for a variety of materials such as sawdust, hay, straw, and more.
Technical specifications:
| Measuring range moisture | 10 - 20 % |
| Resolution | 0.1 % |
| Temperature compensation | manually, 0 - +50 °C / 32 - 122 °F |
| Response time | approx. 3 sec. |
| Measuring sensor | Ø 10 mm x 1000 mm, stainless steel |
| Display | LCD |
| Power supply | 12 V battery type 23A |
| Battery life | Approx. 10,000 measurements |
| Automatic Power Off | after approx. 10 minutes |
| Dimensions of carrying case | Ø 80 mm x 12500 mm / 3.1 x 492.1 in |
| Weight | approx. 900 g / 31.7 oz |
The wood moisture meter is a highly specialized instrument designed to provide accurate readings of moisture in wood materials, particularly focusing on pellets used in energy applications. This device is essential for evaluating the calorific value of pellets, as moisture significantly affects their efficiency and combustion capacity. Excess moisture in pellets can considerably reduce energy yield and increase harmful emissions during combustion, making accurate monitoring of this parameter crucial.
The meter operates within a measurement range of 10% to 20%, with a resolution of 0.1%, ensuring reliable and precise results even under variable conditions. Utilizing a resistive sensor, the meter measures the resistance of the sample and determines the moisture content using stored characteristic curves. To obtain optimal readings, it is essential to correctly set the characteristic curve and temperature, as these factors can significantly influence the results.
To use the meter, simply insert the 1000 mm probe into the pellet sample, which can be easily taken from bags or containers, and read the result at the tip of the probe. This design facilitates quick and precise measurements, making the meter ideal for field use. The device is battery-powered, making it practical and versatile for on-the-go applications. Additionally, it features an LCD display that allows for easy data visualization, facilitating immediate interpretation of the readings.
It is advisable to take multiple measurements at different points to gain an overall picture of the moisture content of the material. This approach ensures more representative results and allows for the identification of any significant variations in moisture within the same batch of pellets. The ability to obtain quick and accurate readings makes the meter a valuable ally for professionals and operators in the energy and wood sectors.
The wood moisture meter finds applications in various fields, from the wood industry to biomass power plants, and even in agricultural contexts. In particular, in power plants, it is used to optimize combustion processes, ensuring that the pellets used meet specific moisture standards to maximize energy yield. In agriculture, this tool can also be used to monitor the moisture conditions of sawdust pellets or other materials intended for feeding biomass plants, ensuring that crops are protected and that materials are utilized optimally.
In summary, the wood moisture meter is an extremely useful and versatile device capable of providing precise and detailed data on the moisture content of pellets and other wooden materials. Whether used for professional, industrial, or research purposes, it represents an indispensable tool for monitoring and improving the quality of materials used in energy production, contributing to safe and efficient operations. Its advanced technology, combined with a practical and functional design, makes it a reference device for anyone needing reliable and detailed measurements in the field of moisture assessment.
Caratteristichs:
- Measuring range from 10 % to 20 %
- Resolution 0.1 %
- 1000 mm measuring sensor- simple handling
- LCD display
- Battery-powered
- Resolution 0.1 %
- 1000 mm measuring sensor- simple handling
- LCD display
- Battery-powered
Delivery scope:
1 x Pellets moisture tester PCE-PEL 20
1 x Battery
1 x Instruction manual
1 x Carrying case
- EAN Code:
- 4250348716545
- Typology:
- Hygrometer
- Brand:
- PCE INSTRUMENTS
- Resolution (mm):
- 0.1%
- Measurements range:
- 10 - 20%
