PCE Instruments PCE-MMK 1 Moisture meter for wood, building materials, paper, and cardboard with adaptable probes, manual temperature compensation, and percentage display for precise results
In stock
SKU
PCE-MMK-1
€484.90
(Incl. Tax: €591.58)
(Incl. Tax: €591.58)
The moisture meter for materials detects relative and absolute humidity in wood, building materials, paper, and cardboard. The internal and external penetration probes are adaptable, ensuring flexibility and precision. The device offers various measurement modes, selection of material characteristic curves, and an auto-test function to verify its correct operation. The manual temperature compensation ensures accurate readings. The backlit display shows humidity in percentage, without the need for conversions, and the shipment includes three probes for different applications.
Technical specifications:
| Measuring ranges | Wood, paper, textiles: 1 - 75% moisture Concrete, building materials: 0.1 - 2.4% moisture Ambient temperature: -40 - 70°C / -40 - 158°F Ambient relative humidity (RH): 0 - 100% RH |
| Resolution | 0.1 |
| Accuracy | Wood, paper, textiles: 1 - 30% / ±1%, 31 - 60% / ±2%, 61 - 75% / ±4% Concrete, building materials: ±0.5% Ambient temperature: -40 - -10°C and 40 - 70 °C / ±2°C, -10 - 40°C / ±1°C Ambient relative humidity (RH): 0 - 20 % and 80 - 100% / ±5%, 20 - 80% / ±3.5 % |
| Automatic power off | After 3 minutes of inactivity, meter powers off to save battery After 10 seconds of inactivity, LCD backlight powers off to save battery |
| Enclosure | Impact-resistant plastic housing |
| Battery | 3 x Cr 2032, replaceable |
| Operating conditions | 0 - 40°C / 32 - 104°F, 0 - 85% RH |
| Dimensions | 139 x 47 x 25 mm / 5.5 x 1.9 x 1.0 in |
| Weight | 100 g / < 1 lb (without electrodes) |
The moisture meter is an essential tool for accurately determining relative and absolute humidity in materials such as wood, building materials, paper, and cardboard. This device is specifically designed for use by professionals like technicians, installers, and engineers, both in the field and in industrial environments. It is mainly used to assess material conditions during installation, maintenance, or quality control, ensuring maximum reliability in production and operational processes.
The moisture meter stands out for its versatility and precision. Thanks to its internal and external penetration probes, it allows for quick and accurate measurements across a wide range of materials. The interchangeable probes can be adapted to different materials, ensuring a customized measurement based on the user’s specific needs. The device also allows the selection of different material characteristic curves, offering high flexibility in use with 130 types of wood and 19 building materials, including concrete, plaster, mortar, and reinforced concrete.
Using the moisture meter is simple and intuitive. Once turned on, the operator can select the desired measurement mode and immediately begin the process. The device is equipped with four measurement modes, allowing the operator to choose the most suitable option based on the type of material and the depth of the measurement. The ability to store MAX and MIN values facilitates the analysis of moisture variations over time, enabling constant and precise monitoring.
One of the most important features of the moisture meter is the manual temperature compensation, ensuring accurate results even in variable environmental conditions. This is crucial when taking measurements in fluctuating temperatures, as it prevents the readings from being affected by such changes. Additionally, the dry-wet indicator gives the operator an immediate and intuitive reading of the material's state, making quick inspections or routine checks easier.
The device is equipped with a backlit display that clearly shows the measured values, making it usable even in poorly lit environments. This is especially useful during inspections in industrial areas or construction sites where visibility may be limited. The automatic conversion of measured values into percentages eliminates the need for additional calculations, further simplifying the measurement process.
To ensure long-lasting performance and reliability, the moisture meter features an auto-test function that verifies the device’s proper operation before each use. This ensures that the tool is always ready for use and in optimal condition, minimizing the risk of measurement errors.
In terms of practicality, the moisture meter comes with three interchangeable probes, including short and long electrodes, that can be adapted to the operator’s specific measurement needs. All probes and accessories are provided in a transport case, making the device easy to carry and usable in different operating conditions. This portability makes it an ideal tool for those who frequently move between different work locations or environments.
The applications of the moisture meter are numerous, spanning across sectors such as construction, paper, and even more complex industrial applications. In new installations, monitoring moisture is essential to ensure work quality and prevent structural issues related to excess moisture. Additionally, during periodic maintenance, the device helps verify that materials are maintaining optimal conditions, avoiding potential damage or defects over time.
In conclusion, the moisture meter is an indispensable tool for engineers, technicians, and operators in the electrical and construction sectors. Its combination of precision, versatility, and ease of use makes it the ideal choice for anyone needing to reliably and effectively monitor moisture in materials. With its advanced technology, intuitive functions, and ergonomic design, the moisture meter ensures excellent performance and accurate results in every application.
Caratteristichs:
- Measures moisture content of wood, paper, textiles, concrete and other building materials
- Also measures ambient temperature and ambient relative humidity
- Measuring principle: Electrical resistance
- Also measures ambient temperature and ambient relative humidity
- Measuring principle: Electrical resistance

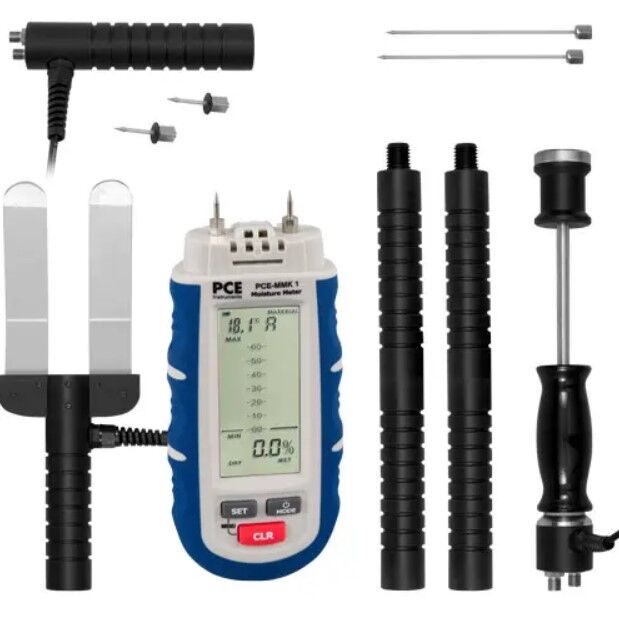

Delivery scope:
1 x PCE-MMK 1 multifunction environmental meter
2 x 30 mm / 1.18 in insertion needles
2 x 150 mm / 5.91 in insertion needles
1 x Cap to connect external electrodes
1 x Ramming electrode
1 x Penetrating electrode
1 x Paper electrode
1 x Self-test probe
2 x 300 mm / 11.81 in extensions
1 x User manual
2 x 30 mm / 1.18 in insertion needles
2 x 150 mm / 5.91 in insertion needles
1 x Cap to connect external electrodes
1 x Ramming electrode
1 x Penetrating electrode
1 x Paper electrode
1 x Self-test probe
2 x 300 mm / 11.81 in extensions
1 x User manual
- EAN Code:
- 4250348710505
- Typology:
- Multifunctional
- Brand:
- PCE INSTRUMENTS
