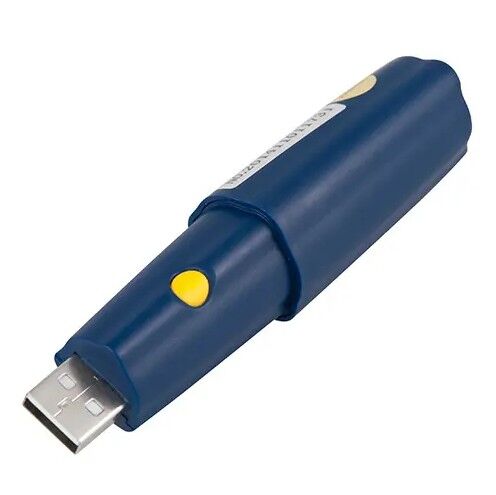

PCE Instruments PCE-HT 71N-ICA USB data logger for long-term measurement of temperature and relative humidity, resolution 0.1 H.r./°C
(Incl. Tax: €292.18)
The PCE Instruments PCE-HT 71N-ICA is a compact USB data logger designed for long-term monitoring of temperature and relative humidity. It records measurements autonomously into a 32K internal memory, with a user-adjustable sampling rate, and transfers logged data to a PC via USB for analysis. The included software supports full reporting and dew point calculation. Powered by a long-life 3.6 V lithium battery (replaceable) and supplied with ISO certification.
The PCE-HT 71N-ICA USB data logger measures and stores relative humidity and temperature using internal sensors, providing reliable traceability for controlled environments and cold-chain applications. It is widely used in supermarket refrigerated displays, cold transport, warehouses, and air-conditioned server/IT rooms.

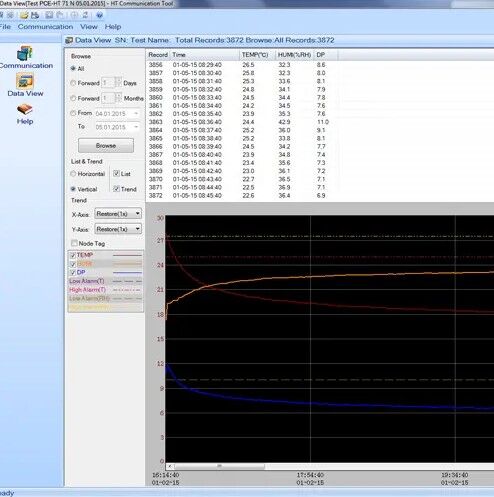

The logger can be started manually or fully scheduled (start/stop time, date, and sampling interval) and left to record autonomously. After USB transfer, data can be reviewed with the included software, which also enables dew point calculation. Thanks to non-volatile EEPROM memory and LED status indication (logging/alarm), monitoring is straightforward. The replaceable 3.6 V lithium battery can last up to about one year, depending on usage. ISO certificate included.
Technical specifications
| Parameter | Value |
|---|---|
| Relative humidity range | 0 … 100% H.r. |
| Temperature range | -40 … +70 °C / -40 ... 158°F |
| H.r. accuracy | ±3% H.r. (20 ... 80%) |
| Temperature accuracy | ±1 °C (1.8 °F) |
| H.r. resolution | 0.1% H.r. |
| Temperature resolution | 0.1 °C (0.18 °F) |
| Sensors | Internal (humidity and temperature) |
| Memory | Max 32,000 readings (16,000 per parameter) |
| Memory type | Non-volatile EEPROM |
| Sampling rate | Adjustable 2 s … 24 h |
| Alarm limits | Programmable (free configuration) |
| Status indication | 2 LEDs (logging / alarm) |
| Interface | USB |
| Software | Included |
| Dew point | Calculated via software after transfer (±2 °C (3.6 °F)) |
| Internal clock | Configurable date/time (drift 3 s/month) |
| Power supply | Replaceable 3.6 V lithium battery (≈ 1 year) |
| Mounting | Wall mount included / free placement |
| Operating conditions | -40 … +70 °C / -40 ... 158°F / 0 … 100% RH |
| Storage conditions | -40 … +70 °C / -40 ... 158°F / 0 … 100% RH |
| Housing | ABS plastic |
| PC requirements | From Windows 7 |
| Dimensions | 106 × 24 × 24 mm |
| Weight | 25 g (without battery) / < 1 lb |
| Certification | ISO certificate included |
Features:
- Storage capacity: 32K
- USB port
- A software for calculating dew point and analysing data in a computer is included
- Wall mount included in the delivery
- Adjustable date/time clock (it loses 3 s / month)
- Adjustable measurement quota (2s ... 24h)
- Long-life lithium battery
- Non-volatile EEPROM
- Staus indicated by 2 LEDs (including alarm)
- Programmable alarm limits across entire measurement range
- Replacement battery
- Incl. ISO calibration certificate
Delivery scope:
1 x PCE-HT 71N climate meter
1 x Wall mount
1 x Battery
1 x Software
1 x User’s manual

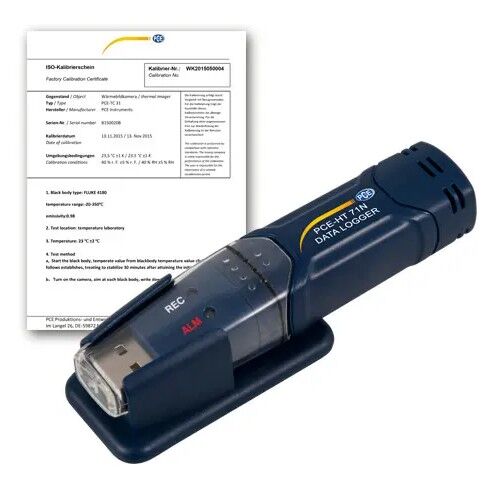

1 x ISO calibration certificate
- EAN Code:
- 4250348726117
- Typology:
- Datalogger
- Brand:
- PCE INSTRUMENTS
- Resolution (mm):
- 0.1
