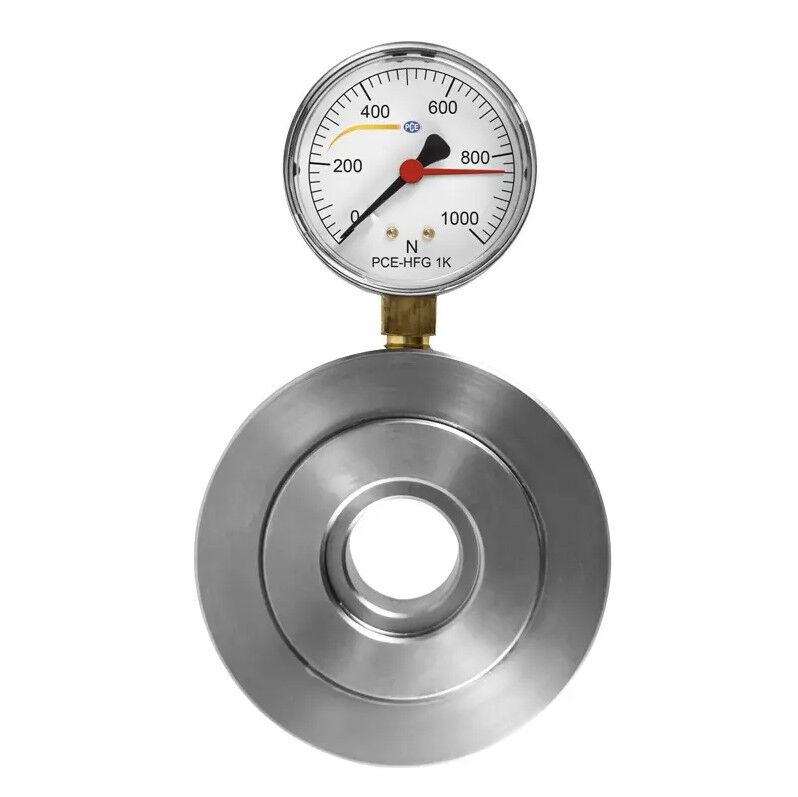

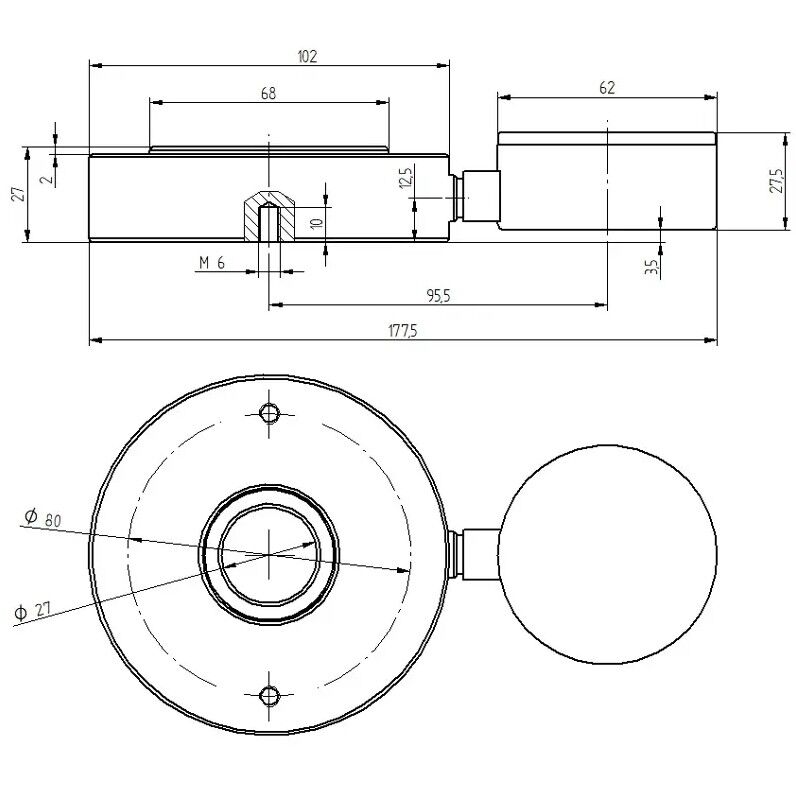

This compact instrument provides a practical solution for measuring static forces in confined spaces, operating on the hydraulic principle that converts piston-generated pressure into force values displayed on an analog Newton scale. Its distinctive 27mm central bore allows direct measurements on guides, shafts and bolts, while the included adapter plate (with 80mm support surface) extends versatility to various mechanical configurations.

Technical specifications:

The durable stainless steel load cell features a ring piston that ensures stable readings even in vibrating environments. The integrated drag tip automatically records peak measurement values - particularly valuable for quick verifications during industrial machinery maintenance and adjustment procedures.

Axial mounting threads and included fixing screws facilitate permanent installation on equipment, making this dynamometer ideal for continuous force monitoring in applications where compactness and reliability are critical. Direct Newton readouts eliminate conversion requirements, optimizing workflow efficiency in workshops and production lines.

With its rugged construction and modular design, this hydraulic dynamometer combines mechanical precision with adaptability, proving indispensable for technicians working with controlled force systems.

Features:

- Stainless steel force gauge
- Measurement of static compressive forces
- Ring force transducer and pressure adapter
- Screw mount for axial assembly
- Integrated drag pointer
- Pressure force display in Newton [N]

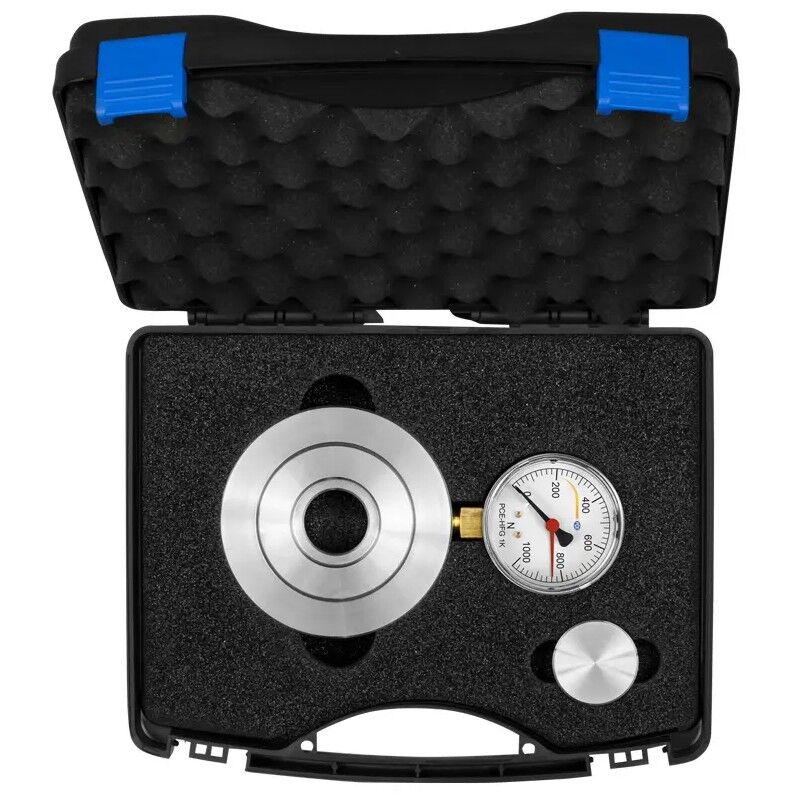

Delivery scope:

1 x Tension Dynamometer PCE-HFG 1K
1 x Instrument case
1 x Compression adapter
1 x Instruction manual
