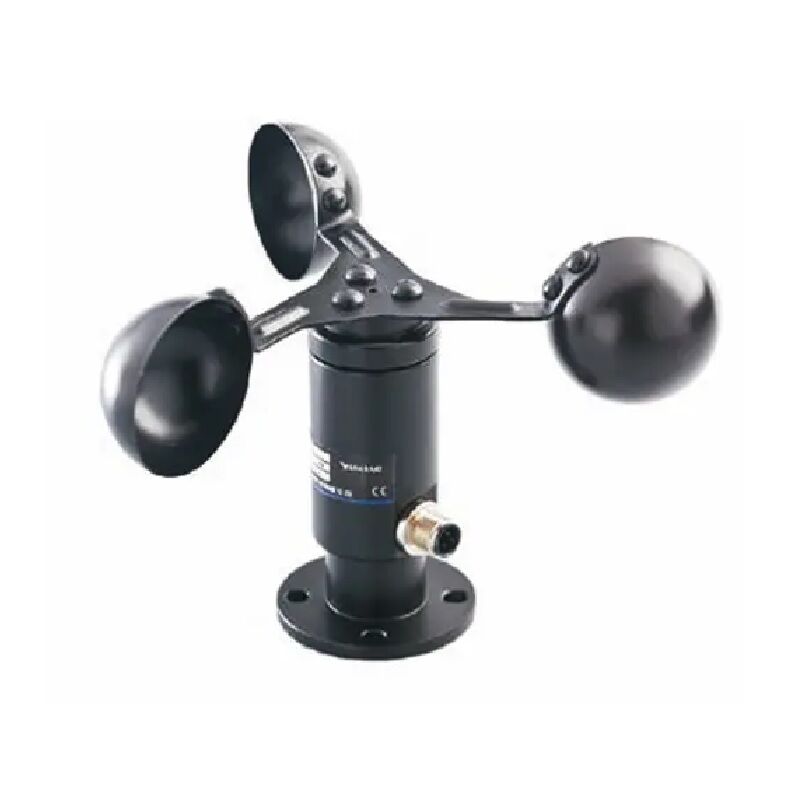

PCE Instruments PCE-FST-200-201-U Wind Measurer - Anemometer for permanent installation with weatherproof seal protection

PCE Instruments PCE-FST-200-201-U Wind Measurer - Anemometer for permanent installation with weatherproof seal protection

In stock
SKU
PCE-FST-200-201-U
€186.14
(Incl. Tax: €227.09)

The wind speed sensor is compatible with and can be mounted on to a wide variety of available measuring equipment. The sensor will detect even the minutest movements of air and the results are then output in analogue form. The sensor is manufactured from corrosion resistant alloy, thus making it impervious to oxidation or rust. This allows the device to be used in the toughest environments. Sensitive parts are protected with seals, to prevent the ingress of water or fine dust.

The PCE-FST-200-201 wind speed sensor is a cup anemometer and is sensitive to wind speed down to as little as, less than 0.5 meters per second. The wind speed sensor is available in different versions with different outputs. This one is available with 4 … 20-mA output and a 0 … 10V DC output.

- Alloys
- Long life span
- Seal protection
- Analogue output signal
- Easy assembly
- Detects minutest movements of air

Specification

Output signal 0 … 10V
Operating voltage 12 … 36V DC
Measurement reading range 0.5 m/s … 50 m/s (1.1 ... 111.8 mph)
Measurement readings from ≤ 0.5 m/s (1.1 mph)
Measurement reading accuracy       ± 0.5 m/s (1.1 mph), (< 5 m/s (11.2 mph))
± 3% from scale end value
Heat output 10 W at 24V DC
Operating temperature range -20 … 185°C / -4 ... 85°F, at ≤ 95% rel. humidity
Maximum wind speed 70 m/s (156.6 mph) at max. 30 minutes
Power connection M12
Protection class IP65

Delivery Scope:
1 x Wind Measurer PCE-FST-200-201-U
1 x Plug M12
1 x 3 m / 9.8 ft cable
1 x Operating Manual
EAN Code:
4250348716408
Typology:
Wind measurer
Brand:
PCE INSTRUMENTS
Speed:
0.5 - 50 m/s
Protection class:
IP65
