Oxygen in liquids
Measuring range	0 - 20 mg / L
Resolution	0.1 mg / L
Accuracy	± 0.4 mg / L
Oxygen in the air (reference measurement)
Measuring range	0 - 100%
Resolution	0.1%
Accuracy	± 0.7%
Temperature
Measuring range	0 - 50°C / 32 - 122°F
Resolution	0.1°C / 0.18°F
Accuracy	± 0.8°C / 1.4°F
Cable length	4 m / 13.1 ft
Temperature units	°C / °F
Display	LCD display 29 x 28 mm / 1.1 x 1.1 in
Temperature compensation	Automatically
Storage	MIN, MAX
Automatic shutdown	After approx. 15 minutes
Operating conditions	0 - 50°C / 32 - 122°F, < 80% RH
Power supply	4 x 1.5V AAA batteries
Power consumption	Approx. 6.2-mA
Dimensions	180 x 40 x 40 mm / 7.1 x 1.6 x 1.6 in(hand-held device without sensor)
Weight	Approx. 390 g / < 1 lb



The water analyzer is an advanced device designed for measuring and determining the content of dissolved oxygen in liquids such as freshwater and saltwater, as well as in gases like air. This instrument is essential for ensuring water quality and monitoring environmental conditions, addressing needs across various industrial and scientific sectors. Thanks to the automatic temperature compensation provided by an integrated sensor, the analyzer offers precise measurements even in environments subject to significant thermal fluctuations, such as those found in lakes and rivers. This functionality is crucial for obtaining accurate results, as temperature variations can significantly influence the levels of dissolved oxygen, altering the results of analyses.



The water analyzer is extremely versatile and finds applications in various sectors, including aquaculture, where constant monitoring of oxygen levels is vital for the well-being of aquatic ecosystems and for ensuring healthy fish growth. For example, adequate concentrations of dissolved oxygen are crucial to prevent stress and mortality in farmed fish. Beyond aquaculture, this tool is also useful in managing natural water bodies, research laboratories, and the chemical industry, where the quality of water and gas must be monitored to prevent environmental damage or safety issues.



To use the device effectively, it is necessary to fill the sensor with the provided electrolytic solution, thus ensuring effective and consistent measurements. Before the first use, it is important to ensure that the sensor is ready and dry. Additionally, in case of damage to the protective membrane, it can be quickly replaced, reducing downtime and ensuring that the device remains operational without prolonged interruptions. This ease of maintenance contributes to its long-term reliability, an essential factor in environments where continuous monitoring is critical.



With a measurement range of up to 20 mg/l, this instrument stands out for its ease of use and portability, making it suitable for both mobile and fixed applications. It can be used in open field situations, as well as in closed environments, always guaranteeing reliable results. Moreover, data recording occurs on removable media, allowing for effective subsequent analysis using standard software like Excel, thus facilitating reporting and comparison over time.



In summary, the water analyzer is an indispensable tool for anyone requiring precise monitoring of environmental conditions in liquids. Its combination of versatility, precision, and reliability makes it an excellent solution for applications in the industrial, environmental, and scientific research sectors. Thanks to its ease of use, the ability to customize sensors, and the integrated alert functionality for critical oxygen and temperature levels, this device is designed to ensure the control of water quality in various contexts, meeting the needs of a wide range of professional users.



- Measuring range up to 20 mg / L
- For oxygen analysis
- Temperature compensation up to 50°C / 122°F
- Electrolyte included
- For measurements in liquids and in air
- Exchangeable oxygen sensor

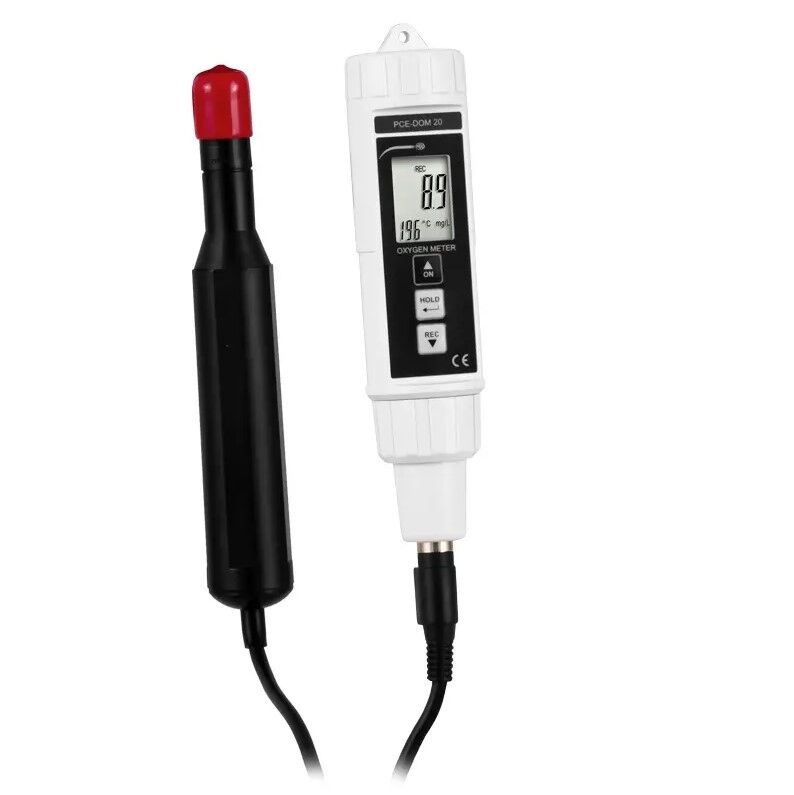

1 x Environmental meter PCE-DOM 20
1 x External oxygen probe (OXPB-11)
1 x Electrolyte (OXEL-03)
2 x Membrane (OXHD-04)
1 x Transport bag
4 x 1.5V AAA batteries
1 x Instruction manual
