PCE Instruments PCE-DFG 20 X Dynamometer with 20N internal load cell, for measuring tensile and compressive forces
(Incl. Tax: €999.85)
The PCE Instruments PCE-DFG 20 X is a digital dynamometer equipped with an internal load cell capable of measuring forces up to 20 Newtons. It is designed for both tensile and compressive force measurements, making it versatile for various applications. The device features a clear display for easy reading of measurements, and it is compact and user-friendly, suitable for laboratory and field use.

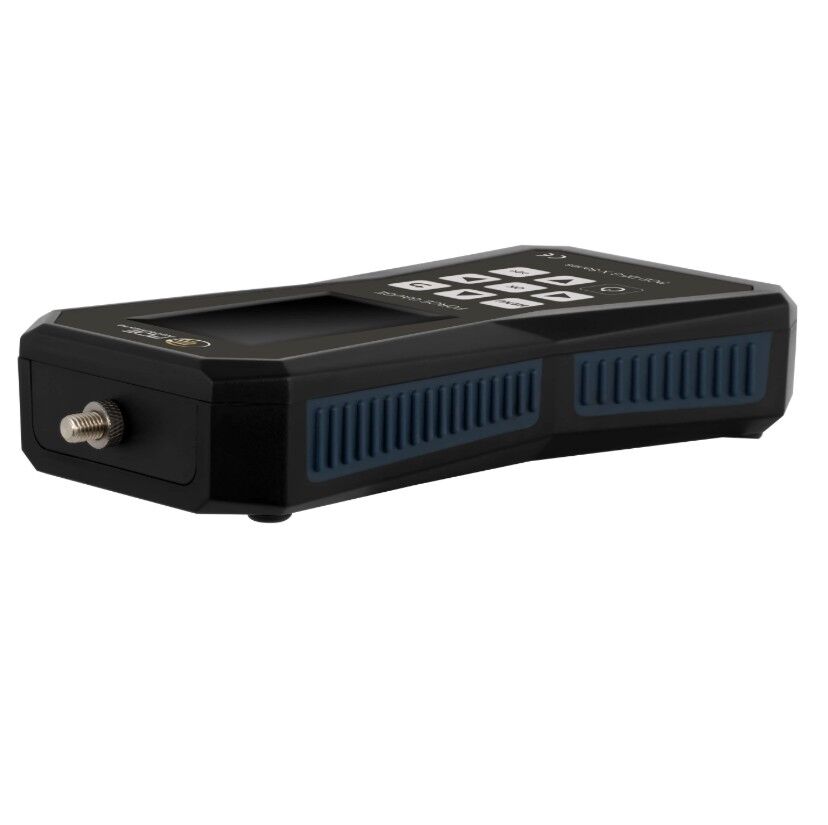

This high-precision digital force gauge offers an advanced solution for measuring both tension and compression forces up to 20 N, with guaranteed accuracy of ±0.05% full scale. The integrated load cell features an M6 thread for easy mounting of various accessories like hooks and eyelets, along with the ability to connect custom fixtures for specialized testing applications.
Technical specifications:
| Force | |
| Measuring range | 0 N - 20 N |
| Resolution | 0.01 |
| Accuracy | ± 0.05 % F.S. |
| General technical data | |
| Units | N, kg, kN, Pa, kPa, Nm, lb, ft, g |
| Display size | 2.8 inches |
| Adjustable measurement rate | 1 - 7200 Hz |
| Memory medium | Internal memory |
| Storage capacity | 32 GB |
| Memory interval of | 1 Hz |
| Memory interval up to | 7200 Hz |
| Operating time | 13 h |
| Automatic switch-off adjustable | 1 - 15 min. |
| Automatic switch-off can be deactivated | Yes |
| Alarm | Optical, acoustic |
| Alarm modes | Inside, Outside, Crack, Switch off |
| Menu language | German, English, French, Italian, Spanish, Dutch, Portuguese, Danish, Turkish, Polish, Russian, Chinese, Japanese |
| Protection class (device) | IP52 |
| Power supply | USB 5 V DC, 500 mA |
| Weight | 255 g |
| Dimensions (L x W x H) | 165 x 85 x 32 mm |
| Operating conditions | -20 - 65 °C , 10 - 95 % r.H |
| Storage conditions | -20 - 65 °C , 10 - 95 % r.H |
| Peso | 255 g |
The innovative dual-display LCD graphically presents both numerical values and real-time force curves, complemented by a convenient bar graph indicating the measured force within the selected range. With 32 GB of internal memory capable of storing up to 30 million data points and a USB-C interface, users can effortlessly export measurement data to the included software for detailed analysis and reporting.

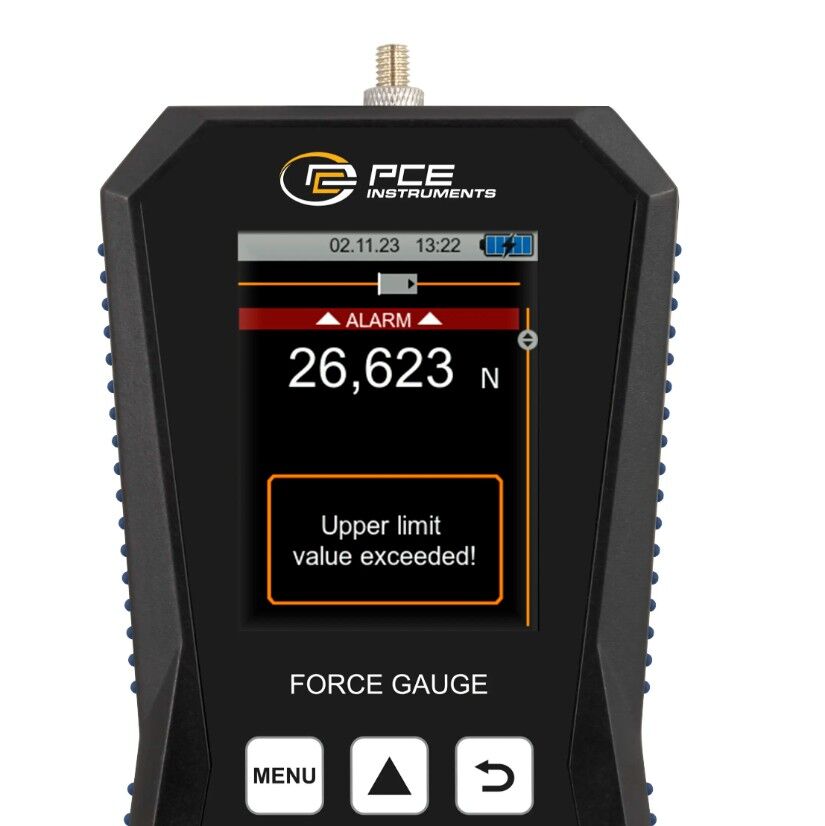

Operational versatility is further enhanced by configurable alarm modes and calibration reminders. Offering adjustable sampling rates from 1 to 7,200 Hz, this instrument proves ideal for applications ranging from industrial quality control to material testing, electromechanical component verification, and R&D - consistently delivering measurement repeatability and reliability.
Features:
- Measuring range: 0 - 20 N
- Measuring rate: 1 - 7200 Hz
- Accuracy: ±0.05 % F.S.
- Graphic display
- USB-C interface
- PC software
- 32 GB memory for 30 mio. measuring points
- Measuring cells can be easily changed
- Various alarm modes
- Bar chart for displaying the measured value in the measuring range
- Calibration reminder

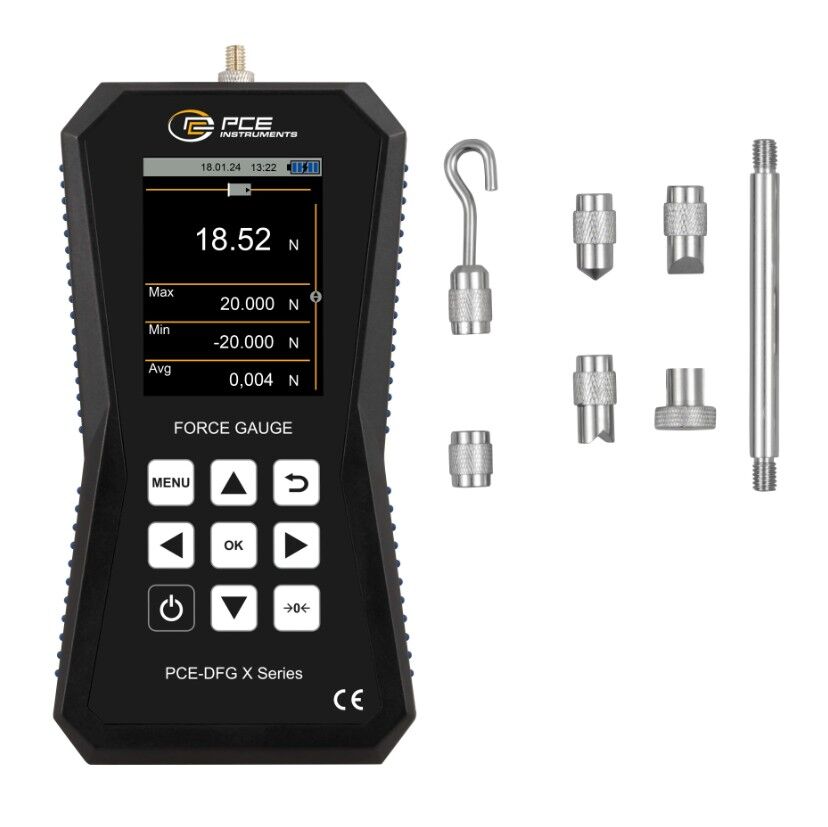

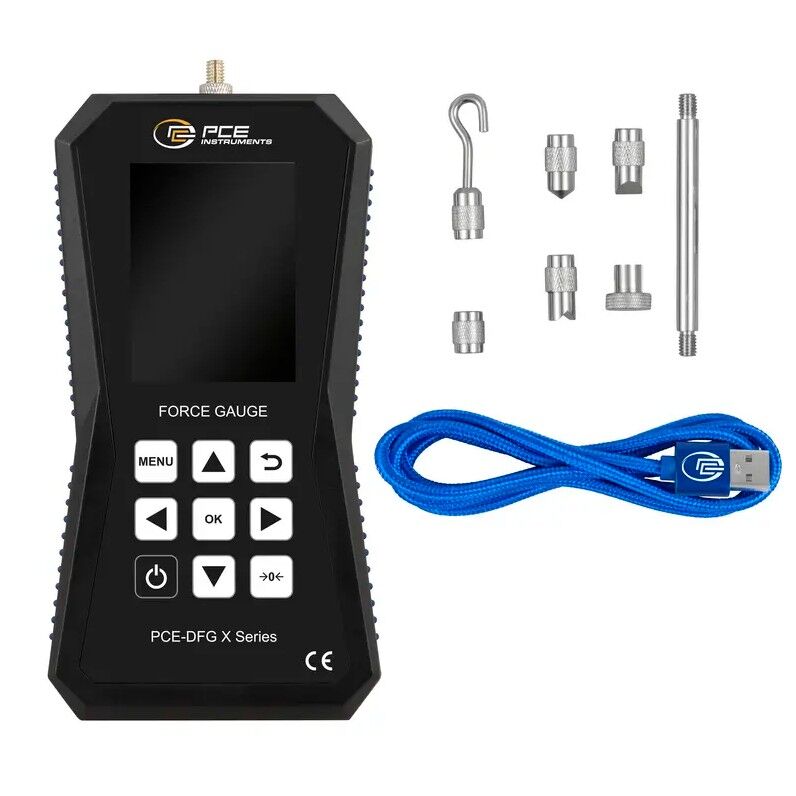

Delivery scope:
1 x dynamometer PCE-DFG 20 X
1 x adapter set
1 x case
1 x USB-C cable
1 x PC software
1 x operating instructions
- EAN Code:
- 4250348734938
- Typology:
- Dynamometer
- Brand:
- PCE INSTRUMENTS
- Resolution (mm):
- 0.01N
- Measurements range:
- 0 - 20N
