PCE instruments PCE-DFG 10K X Dynamometer mit externer 10.000-N-Kraftmessdose, Grafikdisplay, Datenaufzeichnung, inklusive Software, Speicherung von bis zu 30 Millionen Werten und Schutzart IP67
(Incl. Tax: €1,656.64)

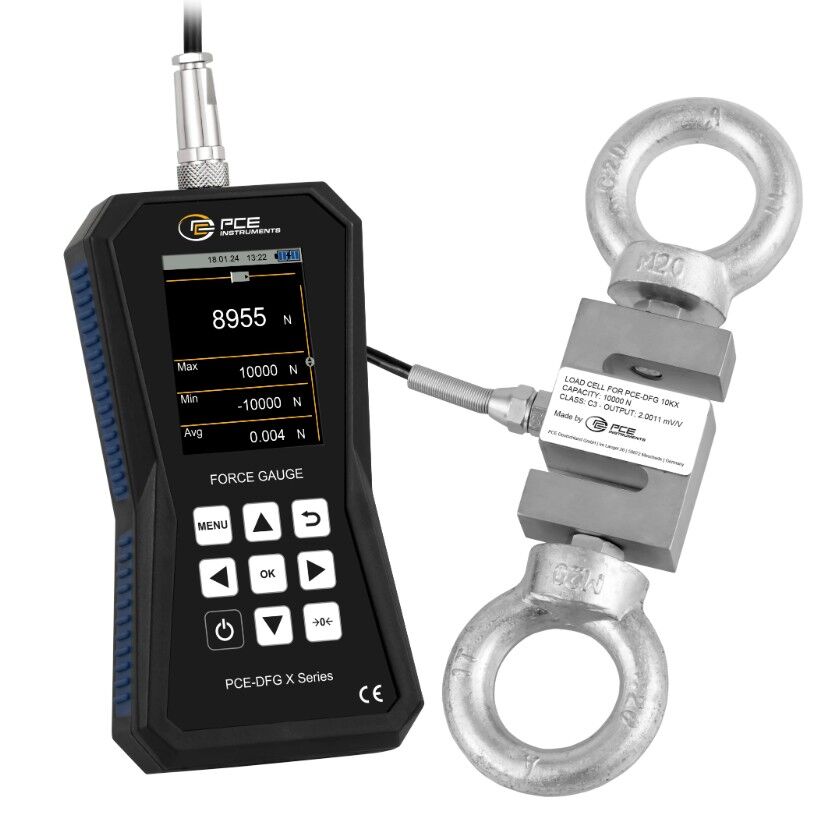

The dynamometer with an external load cell of 10,000 N is designed to accurately measure tensile and compression forces. Mainly used in laboratories to determine parameters such as the elastic limit and breaking force, it allows measuring forces up to 10,000 N. The load cell can be equipped with pins or hooks with an M10 screw, offering flexibility in adapting to different devices. With an internal memory of 32 GB, it can store up to 30 million values, managing data via a USB-C interface and dedicated software. The device features a graphical LCD display and a bar graph to visualize measurements in real-time and is protected by an IP67 rating, making it suitable for industrial environments. The dynamometer also allows for the replacement of the load cell, enabling the use of various cells with adjustable sensitivity in mV/V.

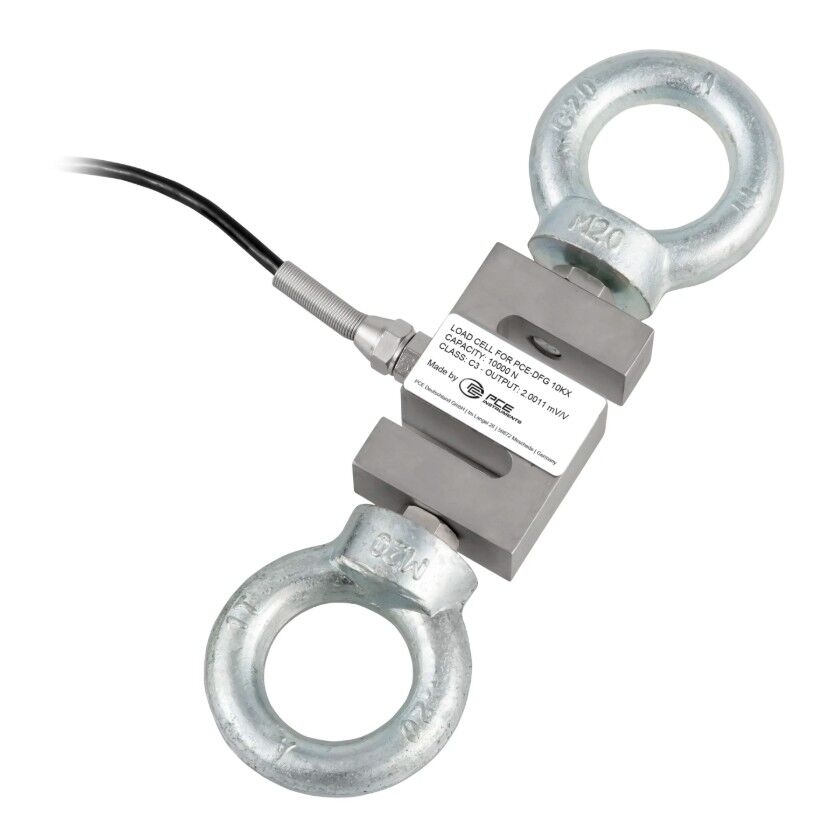

A dynamometer is a highly accurate measuring instrument designed to detect tensile and compressive forces. Mainly used in testing laboratories and industrial applications, it is essential for determining the elastic limit, breaking strength, or the force needed to activate devices such as buttons and switches. The external load cell allows for the measurement of forces up to 10,000 N, offering various mounting options through pins or hooks with M10 threads, making it easy to adapt to different devices.
Technical specifications:
| Force | |
| Measuring range | 0 - 10 kN |
| Resolution | 2 N |
| Accuracy | ± 0.05 % F.S. |
| General technical data | |
| Units | kPa, kg, g, ft, N, lb, t, kN, Pa, Nm, Ncm |
| Display type | LCD with illumination |
| Display size | 2.8 inch |
| Adjustable measurement rate | 1 - 7200 Hz |
| Memory medium | Internal memory |
| Storage capacity | 32 GB |
| Memory interval of | 1 Hz |
| Memory interval up to | 7200 Hz |
| Operating time | 13 h |
| Automatic switch-off adjustable | 1 - 15 min. |
| Automatic switch-off can be deactivated | Yes |
| Alarm | Optical, acoustic |
| Alarm modes | Inside, Outside, Crack, Switch off |
| Protection class measuring cell | IP67 |
| Menu language | German, English, French, Italian, Spanish, Dutch, Portuguese, Danish, Turkish, Polish, Russian, Chinese, Japanese |
| Protection class (device) | IP52 |
| Power supply | USB 5 V DC, 500 mA |
| Weight | 255 g |
| Dimensions (L x W x H) | 165 x 85 x 32 mm |
| Operating conditions | -20 - 65 °C , 10 - 95 % r.H |
| Storage conditions | -20 - 65 °C , 10 - 95 % r.H |

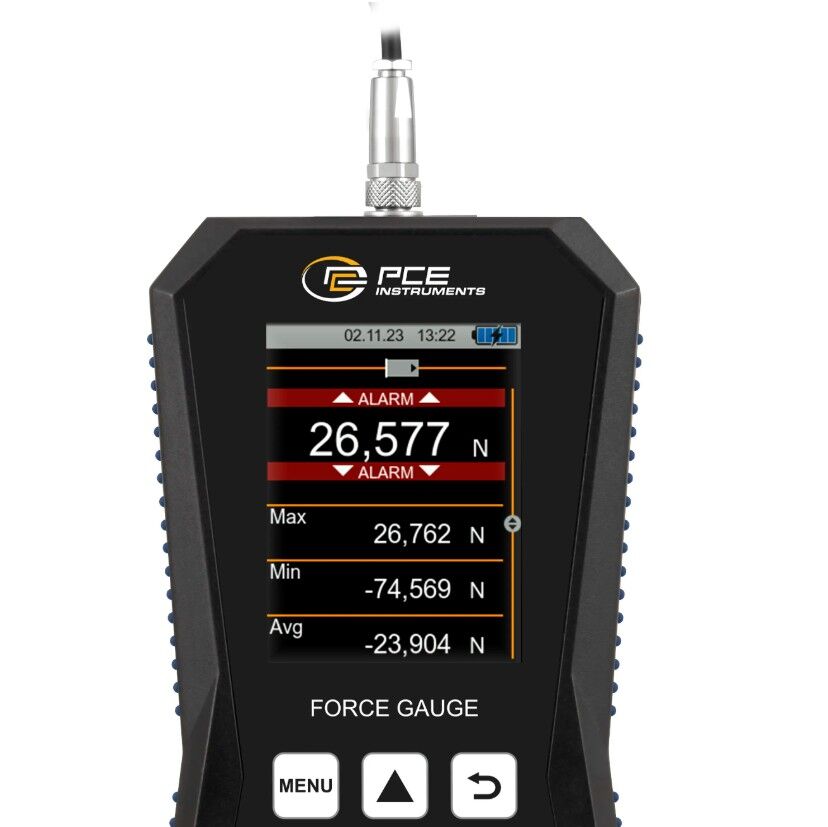

The dynamometer integrates a 32 GB memory, capable of storing up to 30 million values, allowing data to be saved, exported, and analyzed. The device is equipped with a USB-C interface for transferring data to a computer, where it can be viewed using the included software. The LCD graphic display shows data numerically and graphically, while the bar chart helps in interpreting the measured values within the selected measurement range.
With an IP67 protection rating, the dynamometer is durable and suitable for use in complex industrial environments. The easy replacement of the load cell, by entering the sensitivity in mV/V, offers great flexibility, allowing the use of any type of load cell.
Features:
- Measuring range: 0 - 10 kN
- Measuring rate: 1 - 7,200 Hz
- Accuracy: ±0.05 % F.S.
- Graphic display
- USB-C interface
- PC software
- 32 GB memory for 30 mio. measuring points
- Measuring cells can be easily changed
- Various alarm modes
- Bar chart for displaying the measured value in the measuring range
- Calibration reminder

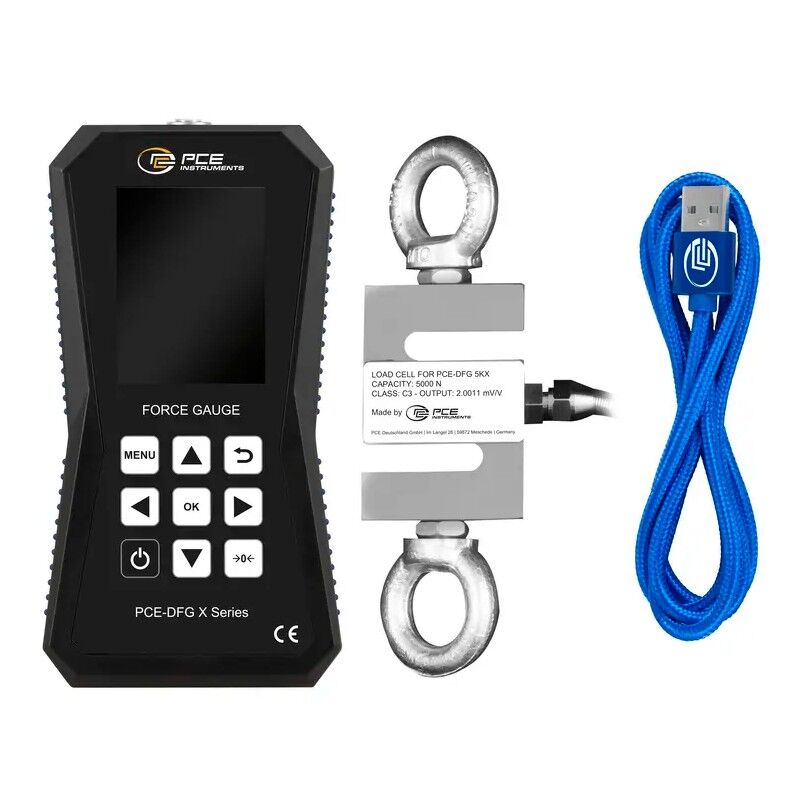

Delivery scope:
1 x dynamometer PCE-DFG 10K X
1 x load cell PCE-DFG 10K X load cell
2 x eyebolt with M10 thread
1 x case
1 x USB-C cable
1 x PC software
1 x operating instructions
- EAN Code:
- 4250348734945
- Typology:
- Dynamometer
- Brand:
- PCE INSTRUMENTS
- Resolution (mm):
- 2N
- Measurements range:
- 0 - 10000N
