PCE Instruments PCE-DDM 5 Handheld dynamometer for determining tensile force, measurement range 5000 kg
(Incl. Tax: €1,763.14)
The PCE Instruments PCE-DDM 5 is a portable dynamometer designed to measure tensile force, with a measurement range of up to 5000 kg. Its user-friendly interface and robust construction make it suitable for various applications, including industrial and laboratory settings. The device provides accurate and reliable readings, ensuring effective monitoring of force measurements in pulling and tension applications.

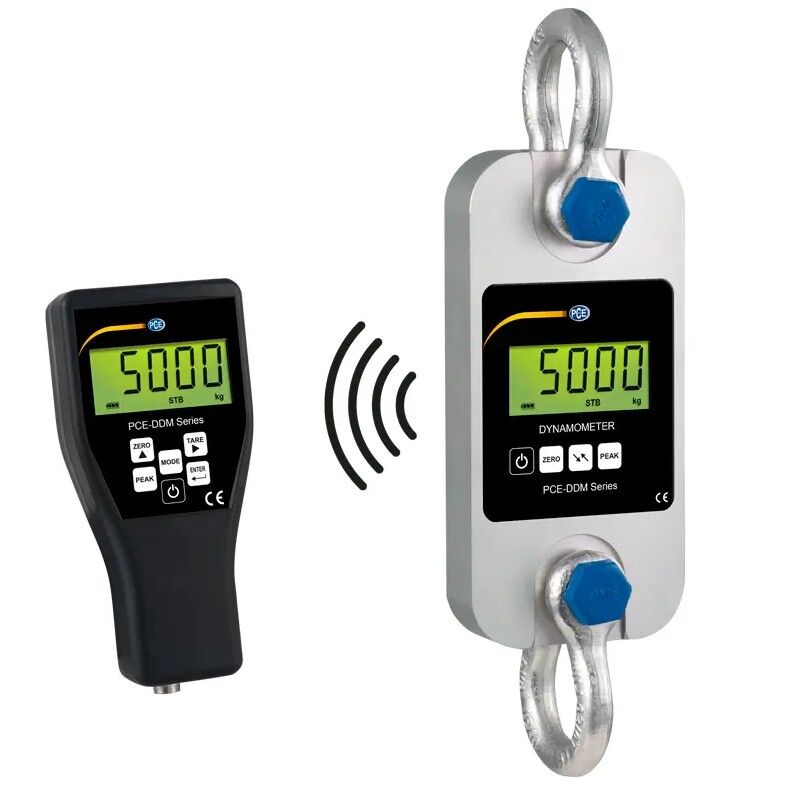

The portable PCE-DDM 5 dynamometer provides a professional solution for precise tensile force measurement across various applications. With a maximum capacity of 5,000 kg, this device combines high performance with a compact and lightweight design, ensuring easy field use and transportation. The package includes a protective carrying case and a wireless graphical display for remote monitoring of measurements.
Technical Data:
| Measuring range | 5000 kg / 50 kN / 11023 lbs |
| Resolution | 2 kg / 20 N / 4 lbs |
| Min. range | 40 kg / 88 lbs |
| Weight (with shackle) | 3 kg / 6.6 lbs (6 kg / 13 lbs) |
| Accuracy | ±0.1 % of measurement range |
| Tare range | Max. 20 % of measurement range |
| Display | LCD with 22 mm / 0.9 in digit height |
| Units of measurement | kg / t / lb / N / kN |
| Sampling rate | 2.5 Hz |
| Operating temperature | -10° C - +40° C / +14° F - +104° F |
| Power supply | 3 x 1.5 V AA batteries |
| Operating time | Approx. 50 hours |
Key technical features include the Peak Hold function, which captures and displays maximum force values during operation. The device also offers progressive force summing and automatic tare functionality across the entire measuring range. Users can select between multiple measurement units—kilograms, tons, pounds, Newtons, or kiloNewtons—to suit specific operational requirements.

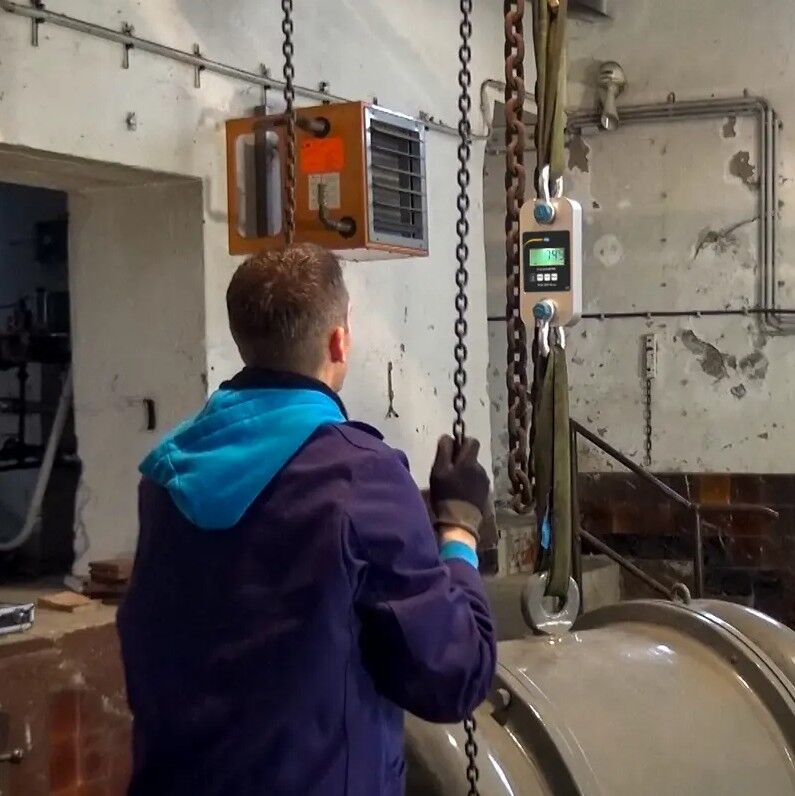

Battery-powered for extended operation, the dynamometer includes adjustable gravity field compensation for accurate measurements in varying environmental conditions. Essential accessories such as connection shackles are included, providing a turnkey solution for industrial quality control, logistics, construction, and maintenance applications.
The combination of rugged construction, measurement precision, and user-friendly operation makes this dynamometer ideal for professionals needing reliable tensile testing equipment in the field, without compromising performance despite its compact dimensions.
Features:
- High capacity
- Compact and portable
- Long battery life
- Peak hold function
- Summation function
- Selectable units of measurement: kg / t / lb / N / kN
- Adjustable gravitation range
- Remote control indicator, shackles and carrying case included

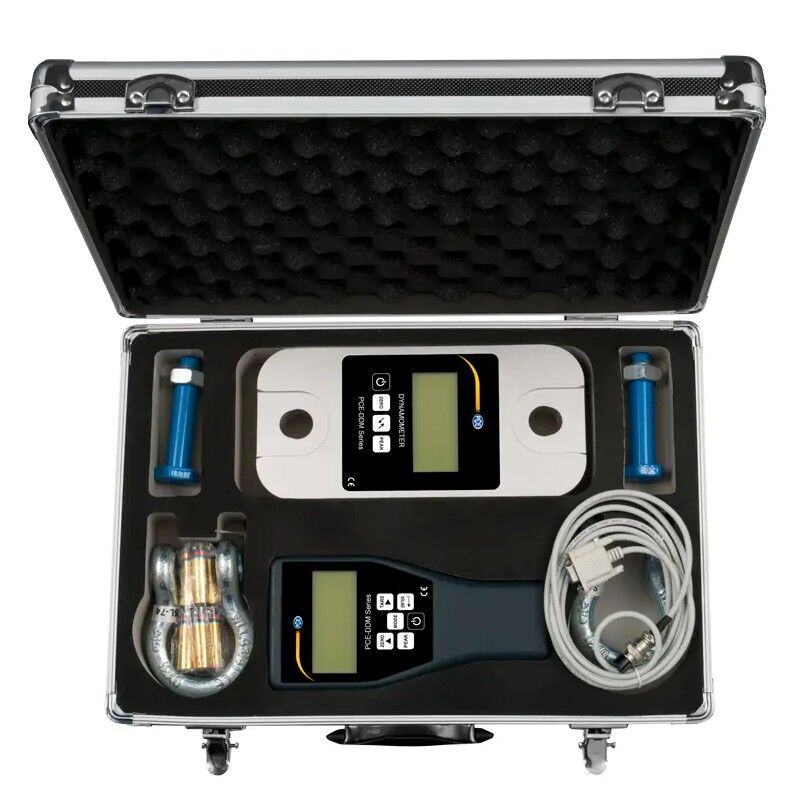

Delivery scope:
1 x PCE-DDM 5 Weighing Hook
1 x remote control indicator
2 x shackles
1 x carrying case
7 x AA 1.5 V batteries
1 x user manual
- EAN Code:
- 4250348712981
- Typology:
- Hook
- Brand:
- PCE INSTRUMENTS
- Capacity :
- 5 t
- Resolution (mm):
- 2 kg
