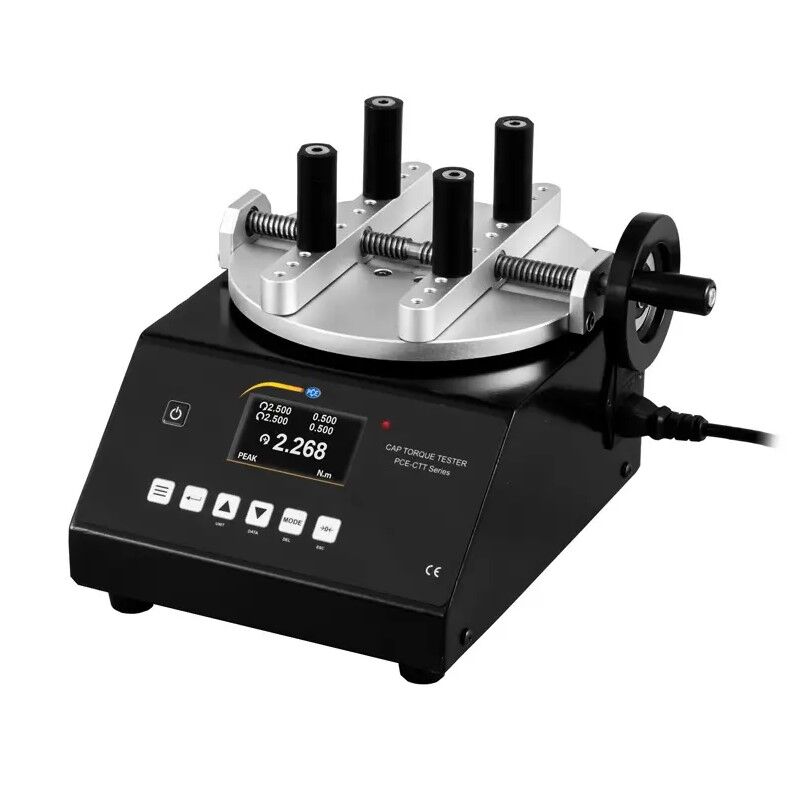

PCE Instruments PCE-CTT 5 Torque meter for threaded closures, accurate measurement up to 200 mm, analysis software, bidirectional rotation, and integrated printer for immediate data
In stock
SKU
PCE-CTT-5
€1,925.35
(Incl. Tax: €2,348.93)
(Incl. Tax: €2,348.93)
The torque meter for threaded closures is an essential tool for determining the closing torque of bottles and containers with threads. The measurement is crucial to ensure that the containers are properly sealed, preventing premature expiration, especially in the food industry. Designed for containers with a diameter of up to 200 mm, the torque meter features a rotating plate and a side crank for simple and flexible adjustment. Its analytical functions include displaying the current measurement value and the maximum value (PEAK). The USB connection allows interfacing with a computer and analyzing data through dedicated software. An integrated printer enables easy recording of results, with options to limit memory positions during printing.
Technical specifications:
| Measuring range | 5 Nm / 3.69 ft-lb |
| Resolution | 0.002 Nm / 0.0015 ft-lb |
| Accuracy | 0.3% of the measuring range |
| Unit | Nm, kgFcm, lbFin |
| Direction of rotation | Left and right direction of rotation |
| Clamping pins / sample grips | Rubberized |
| Data memory | For up to 100 measured values |
| Interface | USB |
| Display | LCD graphic display |
| Power supply | 230V / 110V |
| Sample size | 20 - 200 mm / 0.8 - 7.9 in, in diameter |
| Sample weight | max. 5 kg / 11 lb |
| Ambient conditions | 5 - 45°C / 41 - 113°F, 35 - 65% r.H. |
| Dimensions | 280 x 210 x 200 mm / 11 x 8.3 x 7.9 in |
| Weight | Ca. 9 kg / 19 lbs |
The torque meter is an advanced instrument designed to accurately measure the closing torque of bottles and threaded containers. This measurement process plays a crucial role in ensuring the quality and safety of packaged products. By using a torque meter, it is possible to verify whether containers are sealed correctly; inadequate sealing can compromise the freshness and safety of food, leading to premature expiration. This aspect is particularly relevant in the food industry, where consumer safety is a top priority. Additionally, the torque meter finds applications in various sectors, including pharmaceuticals, chemicals, and research laboratories, where quality control is fundamental to the success of production processes.
The torque meter is designed to measure containers with a variable diameter of up to 200 mm, allowing versatility that makes it suitable for different applications. Its ability to rotate in both directions enables more comprehensive and reliable testing of containers. The side crank, mounted on the torque meter, allows for simple and rapid adjustment, facilitating the locking of the container during the test. This ergonomic design not only improves operational efficiency but also ensures operator safety, reducing the risk of errors during measurement.
A distinctive feature of this torque meter is its advanced analytical functions. In addition to displaying the current measurement value in real-time, the device can record and show the maximum value (PEAK), providing crucial data for quality analysis and production process management. This is particularly useful in contexts where continuous monitoring of operating conditions is required, allowing users to promptly react to any anomalies.
To enhance the efficiency and reliability of measurements, the torque meter includes a USB interface for connection to a computer. Using dedicated software, users can visually represent the collected data graphically and archive it for further statistical analysis. This function is essential for ensuring traceability and compliance with quality standards, as it allows for detailed record-keeping of measurements over time. The integrated printer, conveniently located on the side of the torque meter, enables quick printing of recorded data, facilitating the documentation of measurements and communication of results to stakeholders.
Moreover, the device allows users to select specific memory positions to print, thus avoiding unnecessary printing of all positions simultaneously. This function helps optimize workflow and reduce paper waste, making the torque meter not only an effective device but also eco-friendly.
In summary, the torque meter for threaded closures represents an indispensable tool for ensuring high standards of quality and safety in production and packaging processes. Thanks to its precision, versatility, and ease of use, this instrument is essential for those looking to optimize their quality control processes. In a world where consumer expectations are continuously rising, equipping oneself with a high-quality torque meter means investing in the future of one’s business, ensuring safe products that comply with market standards.
Caratteristichs:
- Accuracy of 0.3% of the measuring range
- USB interface for software connection
- Different units can be set
- Samples can be clamped without tools
- Integrated printer
- Rubberized brackets
- USB interface for software connection
- Different units can be set
- Samples can be clamped without tools
- Integrated printer
- Rubberized brackets
Delivery scope:
1 x Torque meter for drinking bottles PCE-CTT 5
1 x USB cable
1 x IEC cable
1 x Software
1 x M6 hexagon socket
1 x M5 hexagon socket
4 x Rubber feet
4 x Rubberized sample holders
1 x Instruction manual
1 x USB cable
1 x IEC cable
1 x Software
1 x M6 hexagon socket
1 x M5 hexagon socket
4 x Rubber feet
4 x Rubberized sample holders
1 x Instruction manual
- EAN Code:
- 4250348722782
- Typology:
- Torque Meter
- Brand:
- PCE INSTRUMENTS
