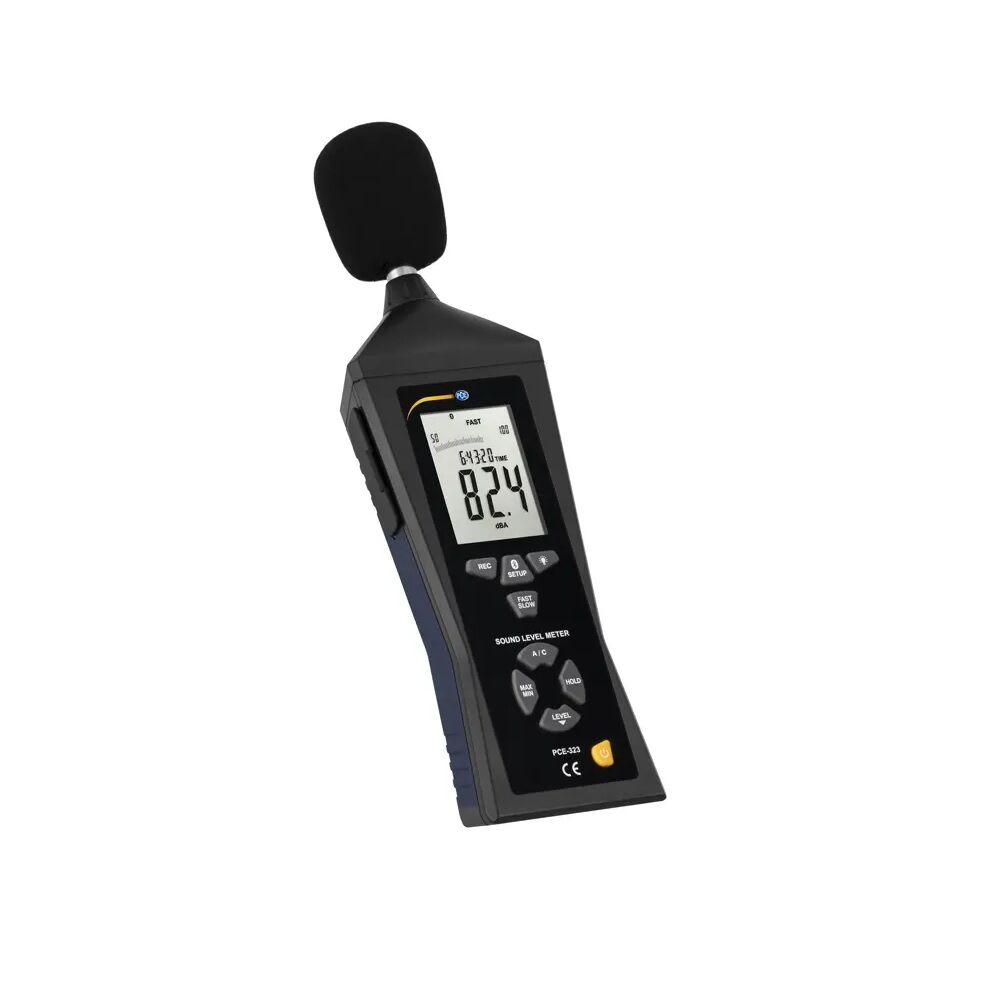

PCE Instruments PCE-323 Class 2 Sound Meter with frequency weighting A and C, PC and Bluetooth software for Android and iOS
In stock
SKU
PCE-323
€249.19
(Incl. Tax: €304.01)
(Incl. Tax: €304.01)
Bluetooth sound meter measures noise from 30 to 130 dB, ideal for detecting noise sources in environments such as presses, ventilation systems or busy streets. Frequency weighting between A and C. Data logger function records up to 32,700 values. Connectable to Android/iOS devices via free app for real-time data transfer, exportable in CSV format. Includes mini USB interface and 12V DC power supply, plus a 9V battery for mobile use. Optional housing and UNI EN ISO 9001 certification.
Features:
- Class 2
- Measurement range: 30 ... 130 dB
- Different noise measurement ranges
- Bluetooth interface with free App
- Battery and mains power supply
- Frequency weighting A and C
- Measurement range: 30 ... 130 dB
- Different noise measurement ranges
- Bluetooth interface with free App
- Battery and mains power supply
- Frequency weighting A and C
| Measurement range | Low: 30 ... 80 dB Medium: 50 ... 100 dB High: 80 ... 130 dB Auto: 30 ... 130 dB |
| Dynamic range | 50 dB |
| Resolution | 0.1 dB |
| Accuracy | ±1.4 dB (Reference conditions @94 dB, 1 KHz) |
| Accuracy class | Class 2, IEC61672-1 |
| Frequency | 31.5 Hz ... 8 kHz |
| Time weighting | FAST 125 ms SLOW 1 s |
| Frequency weighting | A / C |
| Microphone | ½" Electret condenser |
| Display | 4-digit backlit LCD |
| Display update rate | 2 Hz |
| Memory | 32,700 values |
| Sampling frequency | 1 ... 59 seconds |
| Analog output via 3.5 mm jack connection | 1 Vrms/dB AC Impedance 100 Ω 10 mV/dB DC Impedance 1 kΩ |
| Interface | USB, Bluetooth 4.0 |
| Mounting connection | 3/8" thread |
| Functions | MIN, MAX, HOLD High and low overrange indication |
| Auto power off | After 15 minutes of inactivity |
| Power supply (battery) | 1 x 9V battery Typical runtime: 30 h continuous |
| Power supply (mains) | Input: 100 ... 240V AC, 50/60 Hz, 0.2 A Output: 9V DC, 0.5 A |
| Operating conditions | 0 ... +40 °C / 10 ... 90% RH non-condensing |
| Storage conditions | -10 ... +60 °C / 10 ... 75% RH non-condensing |
| Altitude above sea level | < 2000 m |
| Dimensions | 278 x 76 x 50 mm |
| Weight | 350 g |
The Bluetooth sound level meter detects noise in a range of 30 ... 130 dB, making it ideal for identifying noise sources in various environments. It is used for monitoring industrial machinery noise, such as presses, ventilation systems, and traffic noise on busy roads. A simple button press switches the frequency weighting between A and C. The data logger function records up to 32,700 values. For precise positioning, the device can be mounted on a tripod.
The Bluetooth interface allows connection to Android or iOS devices. With a free app, data can be transferred and saved in real-time, and exported as a CSV file. Besides Bluetooth connectivity, a mini USB interface is available for PC connection. The included software enables data transfer to a PC, with CSV export capability.
The package includes a 12V DC power adapter for prolonged use. For mobile use, a 9V battery can be used. The carrying case ensures safe transport. An optional UNI EN ISO 9001 certification is available.
Package contents:
1 x Bluetooth Sound Level Meter PCE-323
1 x Mini USB data cable
1 x Mini tripod
1 x Screwdriver
1 x CD with software
1 x Carrying case
1 x 9V battery
User manual
1 x Mini USB data cable
1 x Mini tripod
1 x Screwdriver
1 x CD with software
1 x Carrying case
1 x 9V battery
User manual
- EAN Code:
- 4250348728364
- Typology:
- Sound level analyzers
- Brand:
- PCE INSTRUMENTS
- Resolution (mm):
- 0.1 dB
- Measurements range:
- 30 - 130 dB
