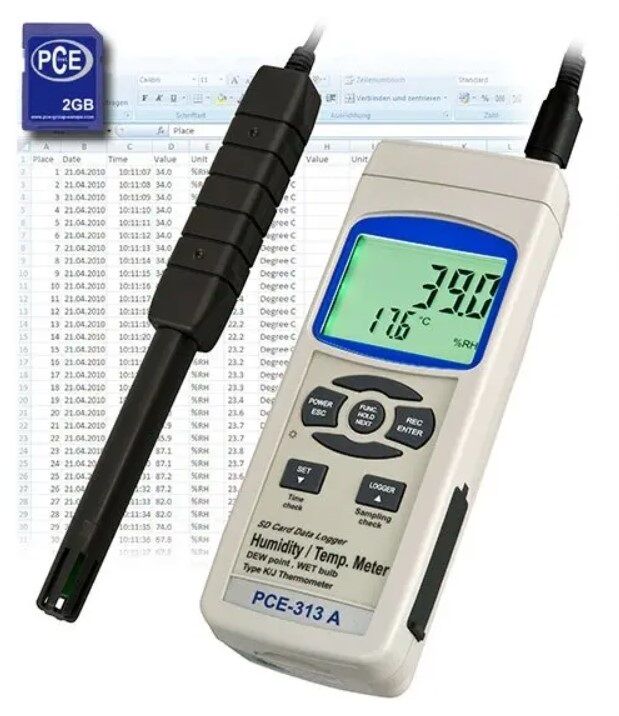

PCE Instruments PCE-313A Hygrometer, measures humidity and temperature, stores on SD card, powered by battery or via power adapter, connection for K-type thermocouples
In stock
SKU
PCE-313A
€339.40
(Incl. Tax: €414.07)
(Incl. Tax: €414.07)
The PCE-313A hygrometer is an advanced instrument for measuring relative humidity and temperature in professional environments, specifically designed for the HVAC sector. Equipped with a K-type thermocouple connection, it also allows for the detection of surface temperature of walls using optional probes. The SD card memory (from 1 to 16 GB) enables the recording of data in real-time or for archiving, with an adjustable sampling frequency. The data can be transferred to a PC in Excel format for in-depth analysis. Thanks to the large LCD display and the Data-Hold function, operation is intuitive and practical. Powered by battery or via a power adapter, the hygrometer offers flexibility and robustness for applications in various environments.
Technical specifications:
| Ranges | |
| - Relative humidity | 5 - 95% RH |
| - Temperature | 0 - 50°C / 32 - 122°F |
| - Type K | -50 - 1300ºC / -58 - 2372°F |
| - Calculated dew point | -25.3 - 48.9ºC / -13.5 - 120°F |
| - Wet bulb temperature | -21.6 - 50ºC / -6.9 - 122°F |
| Resolution | |
| - Relative humidity | 0.1% RH |
| - Temperature | 0.1°C / 0.18°F |
| - Type K | 0.1°C / 0.18°F |
| - Calculated dew point | 0.1°C / 0.18°F |
| - Wet bulb temperature | 0.1°C / 0.18°F |
| Accuracy | |
| - Temperature | ±0.8ºC / 1.4ºF |
| - Relative humidity | ≥70% RH±3% of the measurement value ±1% RH |
| <70% RH±3% RH | |
| - Type K | ± (0.4% + 0.5ºC / 32.9ºF) |
| Memory | SD card (1 - 16 GB) |
| Measurement rate | Adjustable, 1 - 3600 seconds |
| Display | LCD 52 x 38 mm / 2 x 1.5 in, with backlight |
| Interface | RS-232 |
| Operating conditions | 0 - 50°C / 32 - 122ºF < 85% RH |
| Power supply | 6 x 1.5V batteries / 9V mains adapter (optional) |
| Dimensions | 177 x 68 x 45 mm / 7 x 2.7 x 1.8 in |
| Weight | Approx. 490 g / 1.1 lbs |
The hygrometer is an advanced and highly specialized instrument designed to accurately measure relative humidity and ambient temperature. This device is particularly suited for use in the HVAC sector, where constant monitoring of atmospheric conditions is essential for ensuring the comfort and health of occupants.
The PCE-313A model features a connection for K-type thermocouples, allowing the measurement of the surface temperature of objects such as walls or pipes. This functionality is particularly useful in industrial applications, where it is necessary to monitor the temperature of various materials and surfaces. The ability to detect surface temperature significantly increases the versatility of the hygrometer, making it a valuable tool for engineers and technicians.
One of the main features of the PCE-313A is the SD card memory, with capacities ranging from 1 to 16 GB. This feature allows for the recording of humidity and temperature data with a freely adjustable sampling frequency. The hygrometer can be set to record data in real-time or for automatic archiving, without the need for continuous monitoring of the device. Programming is done through an intuitive interface and an integrated keypad, allowing even less experienced users to operate the device with ease.
The collected data is stored directly on the SD card and can be transferred to a PC for detailed analysis. With recording in Excel format, users can easily visualize, process, and present the results. This functionality is particularly advantageous for creating reports and graphs, facilitating the analysis and monitoring of environmental conditions.
The Data-Hold function of the PCE-313A allows users to keep the measured values visible on the display, which is useful during reading operations. The large, backlit LCD display provides clear and immediate visibility of parameters, even in low-light conditions. Operators can monitor environmental conditions in real-time and promptly react to any anomalies.
Another interesting aspect of the hygrometer is its dual power supply mode. It can operate both on battery, making it portable and ideal for on-site measurements, and via an external power supply, which is recommended for prolonged recordings. This makes the device extremely flexible, suitable for a wide range of applications, from research laboratories to construction sites, where continuous monitoring is crucial.
The robustness of the PCE-313A's structure makes it resistant to difficult operating conditions, ensuring reliable operation even in complex industrial environments. The presence of an external sensor extends its measuring capabilities, adapting to various needs and working conditions.
In summary, the hygrometer represents a versatile and reliable tool, ideal for continuous monitoring of air quality and climate in various contexts. Its ability to provide accurate, real-time data, combined with ease of use and the capability to export data, makes it an indispensable element for engineers, technicians, and professionals engaged in environmental control and workplace safety. With advanced technology and quality certification, the PCE-313A contributes to ensuring healthy work environments compliant with regulatory standards.
Caratteristichs:
- Measures temperature, humidity, dew point and external temperature via the K type thermocouple connection
- Flexible real-time data memory by means of SD memory card (1 - 16 GB)
- The data can be saved to the SD card directly as an Excel file
- The SD card can be formatted while it is inside the device
- Data hold function
- External sensor for easy and flexible measurement of the environmental conditions
- Low battery indication
- Large LC display
- Tripod connection
- Adjustable sampling rate of 1 - 3600 seconds
- Easy to use
- Resilient case
- 2 GB SD card included in the delivery
- Optionally available software kit for online transfer to a PC or laptop (please note that no software is necessary to analyse the saved data)
- Flexible real-time data memory by means of SD memory card (1 - 16 GB)
- The data can be saved to the SD card directly as an Excel file
- The SD card can be formatted while it is inside the device
- Data hold function
- External sensor for easy and flexible measurement of the environmental conditions
- Low battery indication
- Large LC display
- Tripod connection
- Adjustable sampling rate of 1 - 3600 seconds
- Easy to use
- Resilient case
- 2 GB SD card included in the delivery
- Optionally available software kit for online transfer to a PC or laptop (please note that no software is necessary to analyse the saved data)
Delivery scope:
1 x PCE-313A thermometer
1 x Sensor for ambient temperature and relative humidity
1 x SD memory card (2 GB)
1 x 9V battery
1 x User manual
1 x Sensor for ambient temperature and relative humidity
1 x SD memory card (2 GB)
1 x 9V battery
1 x User manual
- EAN Code:
- 4250348700308
- Typology:
- Hygrometer
- Brand:
- PCE INSTRUMENTS
- Resolution (mm):
- 0.1% RH
- Measurements range:
- 5 - 95% RH
