Ranges
- Relative humidity	5 - 95% RH
- Temperature	0 - 50°C / 32 - 122°F
- Type K	-50 - 1300ºC / -58 - 2372°F
- Calculated dew point	-25.3 - 48.9ºC / -13.5 - 120°F
- Wet bulb temperature	-21.6 - 50ºC / -6.9 - 122°F
Resolution
- Relative humidity	0.1% RH
- Temperature	0.1°C / 0.18°F
- Type K	0.1°C / 0.18°F
- Calculated dew point	0.1°C / 0.18°F
- Wet bulb temperature	0.1°C / 0.18°F
Accuracy
- Temperature	±0.8ºC / 0.44ºF
- Relative humidity	≥70% RH±3% of the measurement value ±1% RH
	<70% RH±3% RH
- Type K	± (0.4% + 0.5ºC / 0.9ºF)
Memory	SD card (1 - 16 GB)
Measurement rate	Adjustable, 1 - 3600 seconds
Display	LCD 52 x 38 mm / 2 x 1.5 in, with backlight
Interface	RS-232
Operating conditions	0 - 50°C / 32 - 122ºF < 85% RH
Power supply	6 x 1.5V batteries /  9V mains adapter (optional)
Dimensions	177 x 68 x 45 mm / 7 x 2.7 x 1.8 in
Weight	Approx. 490 g / 1.1 lbs

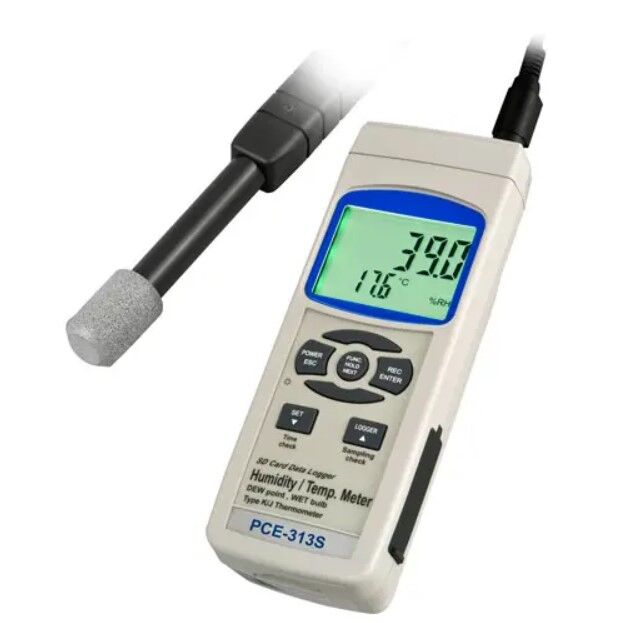

The hygrometer represents a highly specialized instrument designed to provide precise measurements of relative humidity and ambient temperature. This device is particularly useful in professional settings, with a specific focus on the air conditioning and environmental management sectors, where accurate monitoring of climatic conditions is crucial for the proper functioning of machinery and systems.



The SD card memory, with variable capacities from 1 to 16 GB, allows for real-time data recording, offering the flexibility to set a sampling frequency that can be freely adjusted up to 3600 seconds. Thanks to this functionality, users have the opportunity to program the hygrometer through a keyboard, enabling the automatic recording of values even in the absence of supervision. This is particularly advantageous in work contexts where the continuous presence of an operator is not possible, allowing for a constant flow of data without interruptions.



The collected data is stored directly in Excel format, facilitating subsequent analyses and the creation of graphs, which can be used to identify trends or anomalies in climatic conditions. This feature is fundamental for professionals who need to make informed decisions based on accurate measurements, as it allows for in-depth and detailed analysis of environmental conditions over time.



The robust structure of the hygrometer ensures superior durability and resistance, making it suitable for use in demanding work environments, such as warehouses, industrial plants, or research laboratories. This robustness is accompanied by an ergonomic design that facilitates daily use, allowing users to handle the device easily even in intense work situations.



Additionally, the hygrometer can be powered both by batteries and through a power supply, offering greater operational versatility. Moreover, the presence of an external sensor for measuring environmental conditions further expands monitoring possibilities, allowing the detection of surface temperatures, such as walls and machinery, using optional surface probes. This functionality is particularly useful for applications requiring a detailed understanding of local conditions, such as detecting heat loss or analyzing the energy efficiency of buildings.



The large, easy-to-read LCD display provides simultaneous indication of all detected parameters, ensuring that users can quickly and easily monitor conditions without navigating through complex menus. The Data-Hold function allows readings to be retained on the display for more in-depth analysis, while the battery status indication ensures users are always informed about the device's energy availability.



In summary, the hygrometer serves as an indispensable tool for professionals needing to monitor and manage climatic conditions precisely and in detail. Its versatility makes it ideal for various application fields, including air conditioning, food industry, research laboratories, and building management. With advanced functionalities and an interface for real-time transmission, the hygrometer provides effective support to optimize environmental control processes, enhancing operational efficiency and contributing to maintaining high standards of quality and safety in daily operations.



- Measures temperature, humidity, dew point and temperature via the connection to a thermo-element.
- Memory with possibility of real time registration by means of the SD memory card (1 to 16 GB)
- Data is directly stored in Excel format in the SD card.
- The SD card can be formatted in the thermometer
- Data-Hold Function
- External sensor for an easy and flexible measurement of the environmental conditions.
- Low battery indication
- Large LCD display
- Connection for tripod
- Measurement rate adjustment from 1 to 3600 seconds
- Easy-to-use
- Solid case
- 2 GB SD card and card reader included in the delivery
- Optional software for real time data transference to a computer or portable computer (no additional software is required for data analysis).



1 x PCE-313 S Air humidity meter (with sintered hood)
1 x Combined sensor for temperature and humidity
1 x SD card (2 GB)
1 x Card reader
6 x Batteries
1 x User's manual
