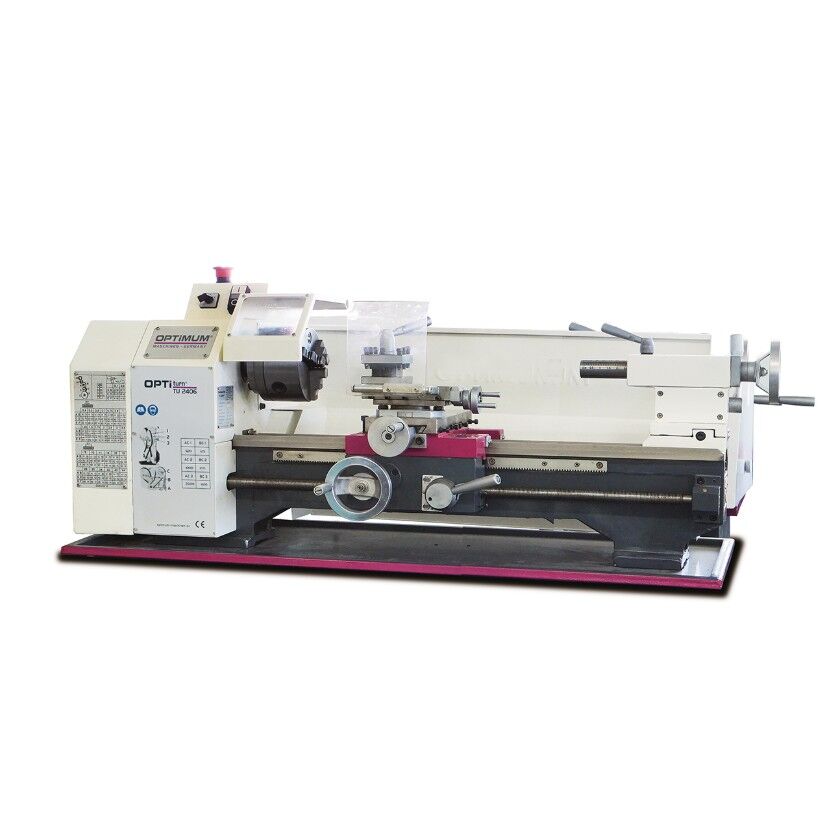

OPTIMUM 050OP0355 Do-it-your self lathe with variable speed control 400V, bar passage 21mm, motor power 1.1 kW, spindle height 125mm, spindle distance 550mm - Model TU 2406 V
(Incl. Tax: €3,181.52)

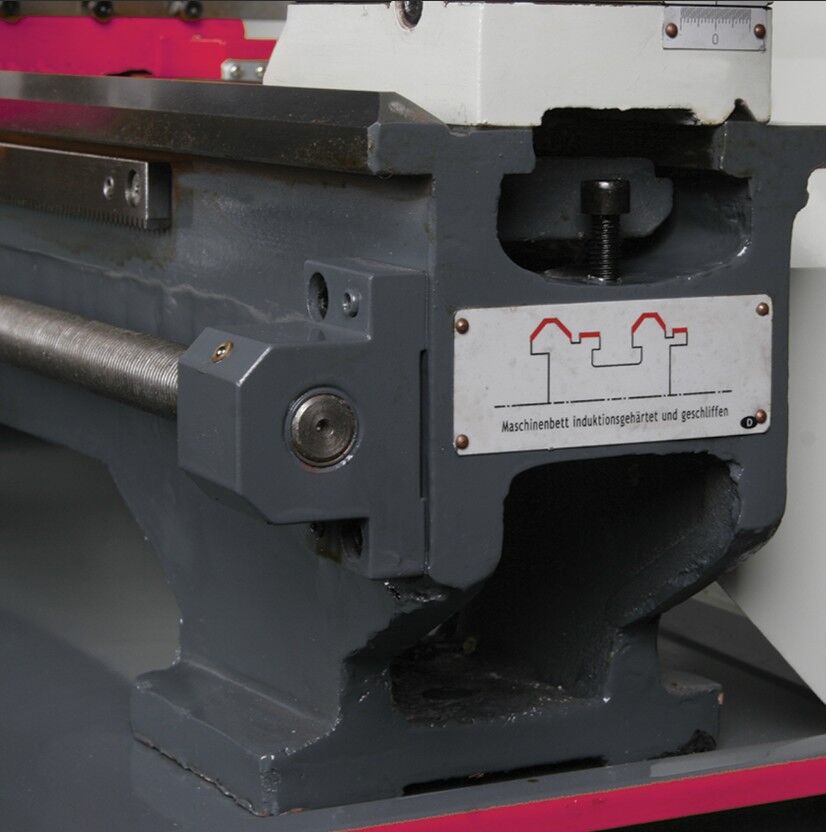

The DIY lathe TU2406 V is a versatile and precise tool, featuring continuous speed regulation that allows it to adapt to different processing needs. The bed guides are hardened and ground, ensuring concentric rotation accuracy of the spindle nose ≤ 0.009 mm and self-centering ≤ 0.05 mm. The right-left rotation is easily selectable via the control panel, while the powerful motor maintains a constant torque. Speed changes are adjustable via a potentiometer, and the digital display allows for monitoring of the RPM. Built according to CE directives, it offers safety features such as an emergency switch and a minimum voltage relay.
ACCESSORIES SUPPLIED:
· 3-jaw self-centering chuck Ø 125 mm
· Fixed tailstocks MT2, MT3
· Splash guard and chip collection trough
· Tool holder with 4 compartments
· Gear change set
· Service keys
The Optimum TU2406 V lathe is an ideal tool for those seeking a high-precision lathe in a compact form. The continuous speed adjustment allows users to tailor the speed to different working needs, such as turning lightweight metals, wood, or plastic. Thanks to the concentric and self-centering rotation precision, it guarantees extremely precise results, features appreciated by hobbyists, artisans, and small mechanical workshops.
TECHNICAL DATA:
| Motor power ~ 50 Hz | 1.1 kW |
| Center height | 125 mm |
| Distance between centers | 550 mm |
| Turning diameter over bed | 250 mm |
| Bed width | 135 mm |
| Spindle mount | 52 Ø mm |
| Spindle speed range | 150 - 2500 rpm |
| Number of speeds | 2 - electronically adjustable speed |
| Spindle taper | MT3 |
| Bar passage | 21 Ø mm |
| Top slide travel | 75 mm |
| Cross slide travel | 120 mm |
| Metric threading | 0.4 - 3.5 mm/rev |
| Inch threading | 44 - 10 TPI |
| Tool post height for 4-way tool holder | 14x14 mm |
| Tailstock taper | MT2 |
| Tailstock/quill travel | 70 mm |
| Dimensions | 1310x520x560 |
| Net weight | 125 kg |
It is perfect for modeling work, repairs, or custom creations, where high-quality machining is essential, even on small parts. The high-quality materials and robust structure make it a reliable companion, capable of lasting over time. The emergency switch and speed adjustment via potentiometer, along with the ability to rotate clockwise and counterclockwise, make the TU2406 V lathe not only easy to use but also safe. Ideal for those who want a precise and versatile lathe to create detailed and high-quality work in a professional or advanced DIY environment.
* The above data are not binding and may be changed at the manufacturer's discretion.
- Brand:
- OPTIMUM
- Application:
- 380-400V Three Phase
- EAN Code:
- 8032819354342
- Typology:
- Lathe
- Power:
- 1.1 kW
