53.23.012HP Drill chuck, high precision hydraulic collet application for Gildemeister GM16AC
(Incl. Tax: €524.60)
Extremely precise Gildemeister GM16AC collet chuck application with 3 micron (0.003mm) total tool oscillation error. Particularly suitable for customers with high demands on accuracy, high precision in drilling and boring. Frequently used for automotive and aircraft parts. Use also with high pressure system.
Excellent quality/price ratio
Features:
Clamp application with hydraulic closure and internal cooling for Gildemeister GM16AC
Use:
Drilling and boring of extremely large holes with tools, drills, special expanders on all types of materials, low carbon steels, alloy steels, nickel alloys, nickel alloys, aluminium alloys, turned parts on Gildemeister GM16AC multispindle automatic lathes
Advantages:

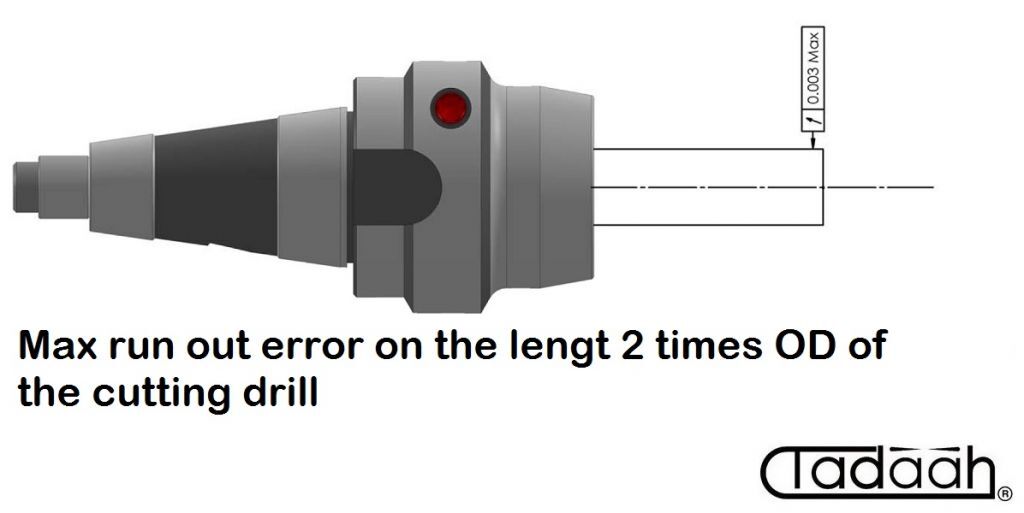

Extremely easy tool mounting with maximum positioning and oscillation error within 0.003mm
Execution of bores with extremely precise diameters and tolerances
Improves tool life
Refrigerant use with high pressure
Interchangeable with the Gildemeister 53.23.012 gripper application, but extremely more precise.
Sectors of use:
Automotive, aircraft, particularly suitable for very demanding customers, precision drilling and boring.
Maximum tool shank diameter: Ø12h6

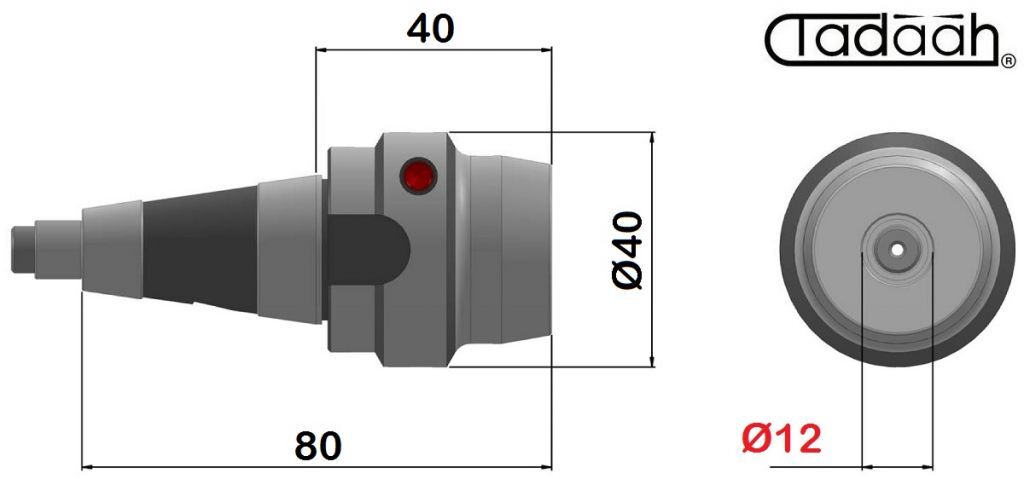

Dimensions: see drawing
- Brand:
- GILDEMEISTER - DMG MORI
- Typology:
- Special
- Length "L":
- 40mm
- Diameter "d1" mm:
- 12
- Shank Type:
- Gildemeister-DMG Mori
- Diameter "D":
- 40 mm
