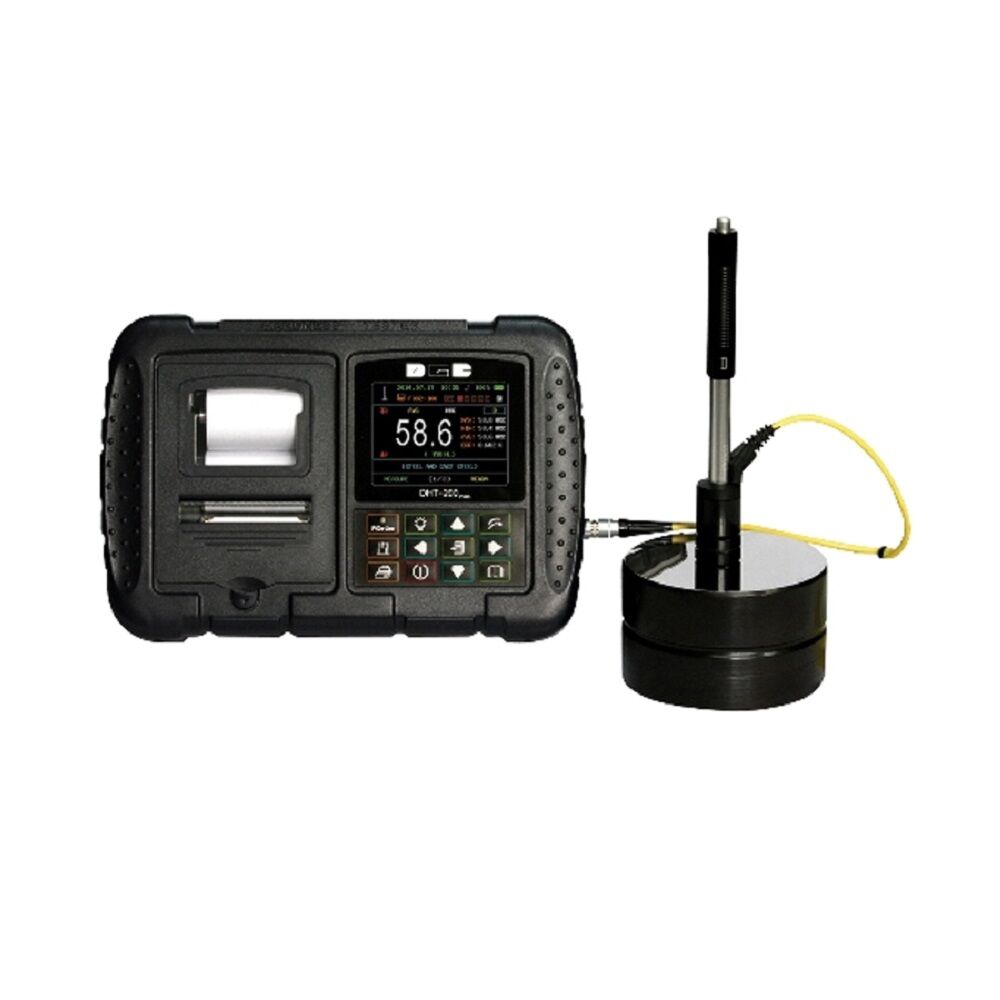

BORLETTI DHT200 PLUS Digital portable durometers for metal and alloy measurements in any direction with memory for 10.000 average readings in 100 files and integrated mini printer - Measuring range 174HL - 960HL
In stock
SKU
BORDHT200PLUS
Special Price
€2,767.50
Regular Price
€3,075.00
(Incl. Tax: €3,376.35)
(Incl. Tax: €3,376.35)
The DHT200 PLUS Portable Digital Hardness Tester is an advanced tool for measuring hardness using the Leeb rebound principle (174HL-960HL). Versatile and accurate, it measures in all directions and supports materials such as steel, cast iron, and aluminum. It includes storage for 10,000 readings across 100 files and features a USB connection. Suitable for workpieces with a minimum thickness of 3 mm and surface roughness up to 10μm, it is equipped with a built-in mini scale. Powered by AA batteries or a 1.25V rechargeable battery, it has a color TFT display and accuracy of ±0.5% at HL=800. Ideal for fast and precise testing under various conditions.
| Measurement range | 174HL - 960HL |

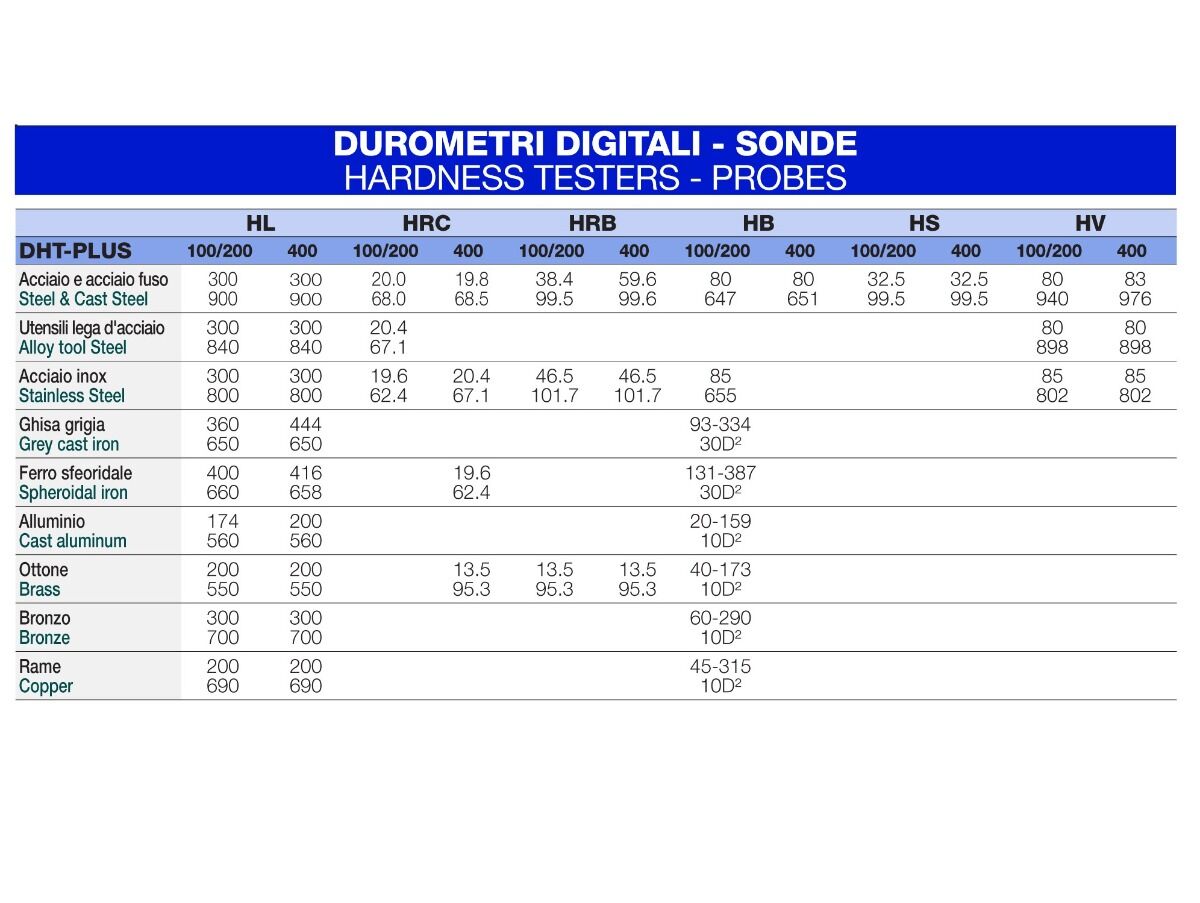

| Hardness parameter | HL. HRB. HRC, HV, HB, HS and tensile strength |
| Tensile strength UTS range (steel only) | 370- 2000 (zl 06N/mm) |
| Optional impact device | D, DC, DL, D+ 15, C and G |
| Materials | Steel & Cast steel, Alloy tool steel, Stainless steel, Grey cast iron, Spheroidal iron, Cast aluminum, Brass, Bronze and Copper |
| Accuracy & Repeatability | ±0.5% when HL=800 |
| Memory | 10,000 average readings in 100 files |
| Data output | USB |
| Thickness | Minimum 3mm (10mm far lmpact device G) |
| Weight | 5kg or more (Need Solid support 2-5kg, Need coupled <2kg) |
| Roughness | ≤ Ra 10 |
| Test point | Convex/concave radius Rmin ≥ 30 mm (Need support ring < 30 mm) 5 mm or more from edge of the sample |
| Display | Color TFT display 320x240 |
| Power supply | 4PCS AA battery or 4PCS 1 .25V rechargeable battery |
| Operating temperature | -20°C~+50°C |
| Dimensions | 215mm (L) x140mm (W) x45mm (H) |
| Weight | 0.70 kg (including batteries) |
| Mini printer |
Built-in |
The portable digital hardness tester is a highly specializedinstrument for measuring the hardness of materials, using the Leeb rebound principle. This device offers precise and reliable readings on a wide range of metallic surfaces, with a measurement range from 174HL to 960HL and the ability to measure different hardness units, including HL, HRB, HRC, HV, HB, and HS, as well as tensile strength (up to 2000 MPa for steel).
The hardness tester is compatible with materials such as steel, cast steel, alloy tool steel, stainless steel, gray cast iron, nodular iron, aluminum castings, brass, bronze, and copper. Accuracy and repeatability are ensured with an error margin of ±0.5% at HL=800.
To obtain accurate readings, it is essential that the workpiece has a minimum thickness of 3 mm (10 mm for the G probe) and a surface roughness of up to 10 μm. The convex/concave radius must be ≥ 30 mm, and the workpiece must weigh at least 5 kg. For lighter pieces, a solid support is necessary to ensure the precision of the measurements. The device also includes a built-in mini printer for immediate documentation of the results.
The hardness tester features internal memory capable of storing up to 10,000 readings in 100 files, with a USB data output for easy information transfer. Powered by 4 AA batteries or 4 rechargeable 1.25V batteries, the device is equipped with a 320x240 color TFT display for clear result visualization. Its dimensions are 215 mm (L) x 140 mm (W) x 45 mm (H), and it weighs 0.70 kg, including the batteries.
Suitable for various industrial and production applications, the portable digital hardness tester is an indispensable tool for monitoring and ensuring the quality and performance of tested materials, with the ability to measure and document hardness quickly and accurately.
- Brand:
- BORLETTI
- EAN Code:
- 8032819384011
- Typology:
- Digital hardness tester
- Measurements range:
- 174 - 960 HL
